Wavy Residence Playhouse Plan
Wavy Residence Playhouse Plan

Full Lumber List Included

(See Below)

Wavy Residence Playhouse Plan

Regular price $ 50.00 Credit Cards Accepted Sale

A 3-ring binder and the PDF logo

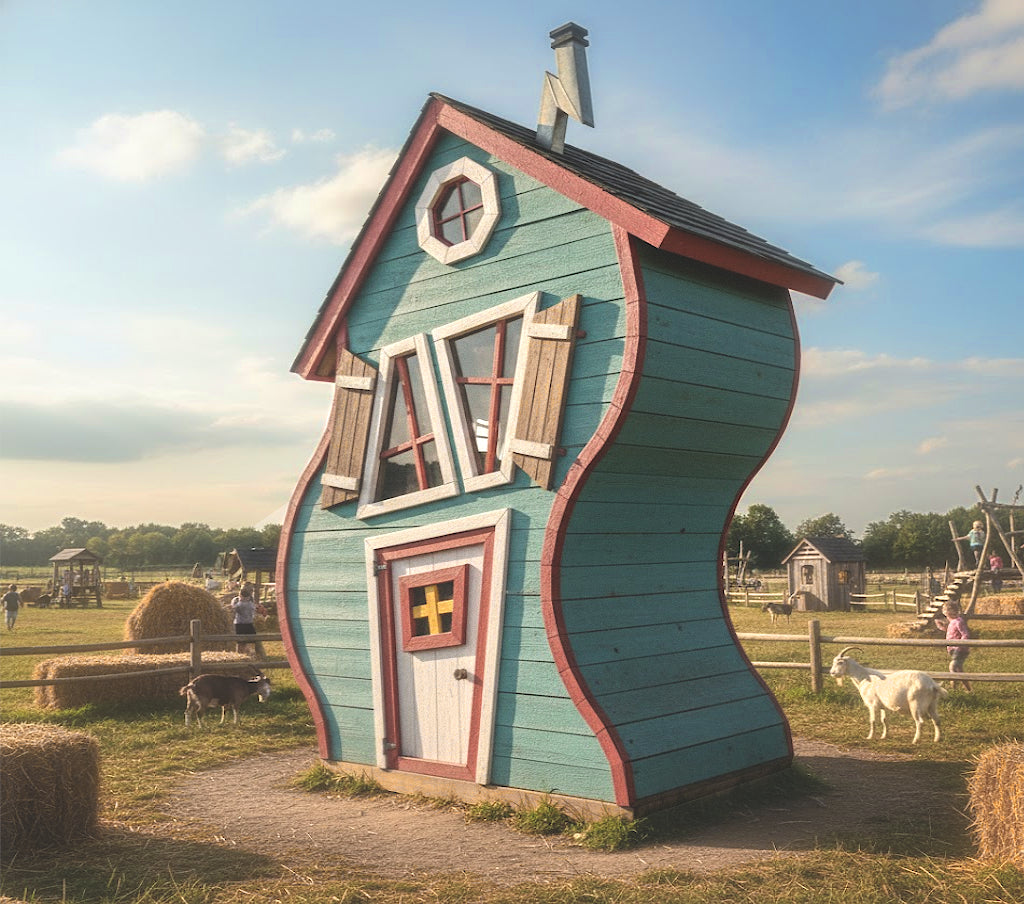

Easily one of our most whimsical designs, the "Wavy Residence" playhouse plan effortlessly stands out against most conventional backyard play structures.  The walls, windows and front door all have a wildly curvy and wacky aesthetic that makes this playhouse look straight out of Saturday morning cartoon!

The Wavy Residence plan is perfect for smaller years with a compact 8x8 footprint and contains two stories for added ways to play and interactivity.  All in all, the Wavy Residence playhouse plan makes for a great family project and lively addition to your home and will provide plenty of fuel for younger and zanier imaginations!  Make sure to see all of our whimsical designs too!

Features:

  • 110 ft² in usable play space
  • "Wavy" appearance provides a fun, whimsical aesthetic
  • Two stories
  • 7 total windows w/ two glass octagonal, gable windows
  • 5.5' max interior head room 1st level
  • Designed for children aged 3-9
  • 61 page, step by step plan

Dimensions:

  • 8' Wide
  • 8' Deep
  • 15.6' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 45° gable roof pitch & 60° porch roof pitch
  • 125 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!


Framing:
( 33 ) 2” x 4” x 8'
( 78 ) 2” x 4” x 10'
( 26 ) 2” x 4” x 12'

( 12 ) 2” x 6” x 8'
( 13 ) 2” x 6” x 10'

( 1 ) 2” x 8” x 8'
( 1 ) 2” x 8” x 10'

Plywood:
( 17 ) 1/2" Plywood Sheets
( 1 ) 5/8" Plywood Sheets
( 1 ) 3/4" Plywood Sheets

Hardware List:

  • (15 lbs) GRK 3” R4 Screws
  • (10 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
