Romani (Gypsy) Wagon Playset Plan

$ 50.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans

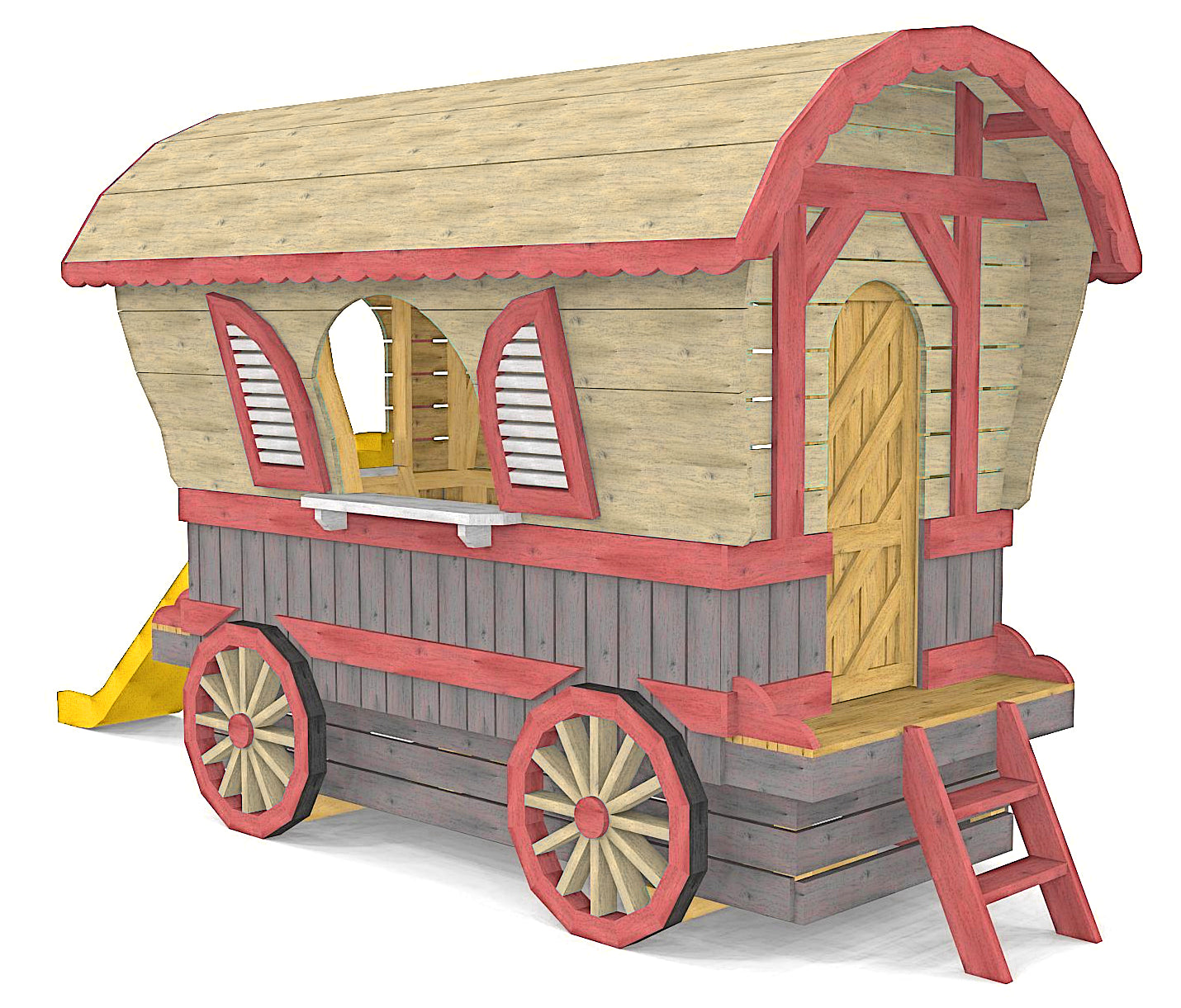

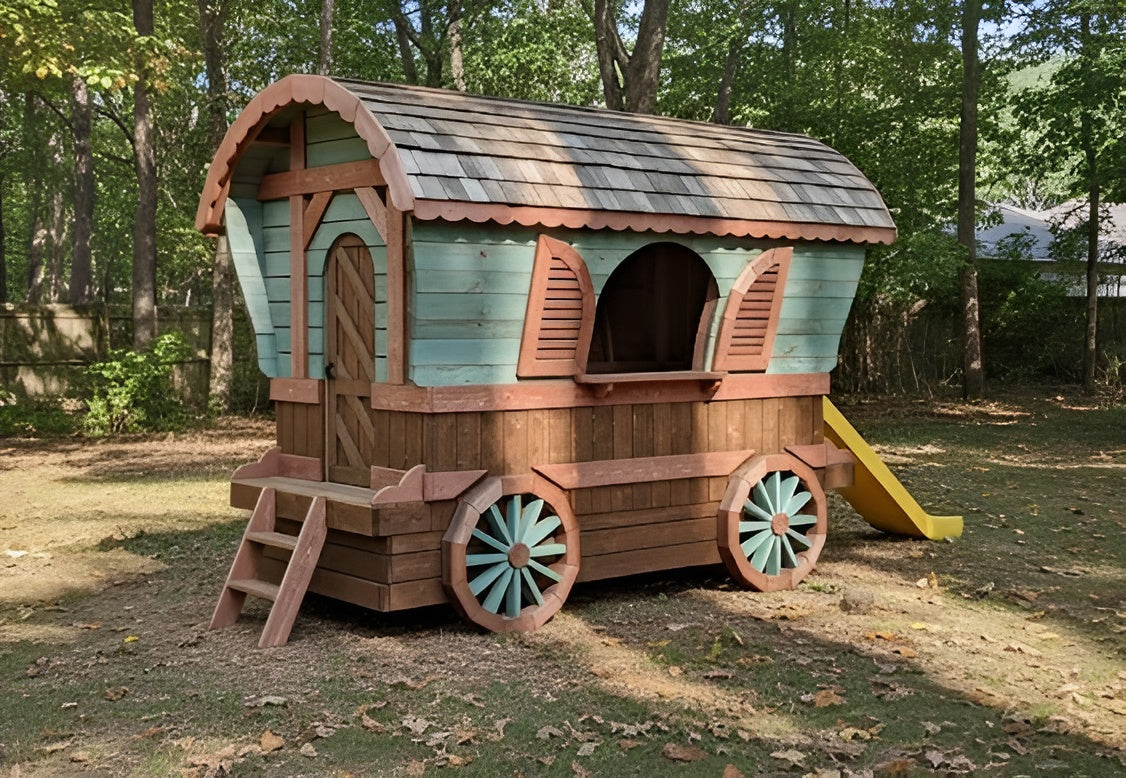

The ornate and beautiful work put into 19th century Romani (Gypsy) wagons can be quite outstanding.  Not only did they allow one to travel in style, but made for quite a quaint and elaborate home.  Now your child can have their own vardo caravan in a simplified playset form that the whole family can enjoy building and using.

With a foot print of just 6 feet by 12 feet, the Romani Wagon playset will fit in most backyards.  Two doors allow for easy come and go access, and two large shed windows provide plenty of natural light.  Angled walls and an arched roof helps this playset replicate the real thing, without making it too complicated.

For an updated take, check out our Happy Camper playset design, or our Cinderella Carriage plan if your family loves all things whimsical and enchanted.

Features:

  • 72 ft² in usable play space
  • Angled left and right side walls
  • Front & back doors
  • Room for a slide
  • Two 24" x 36" shed window openings
  • Designed for children aged 3-10
  • 43 page, step by step PDF plan

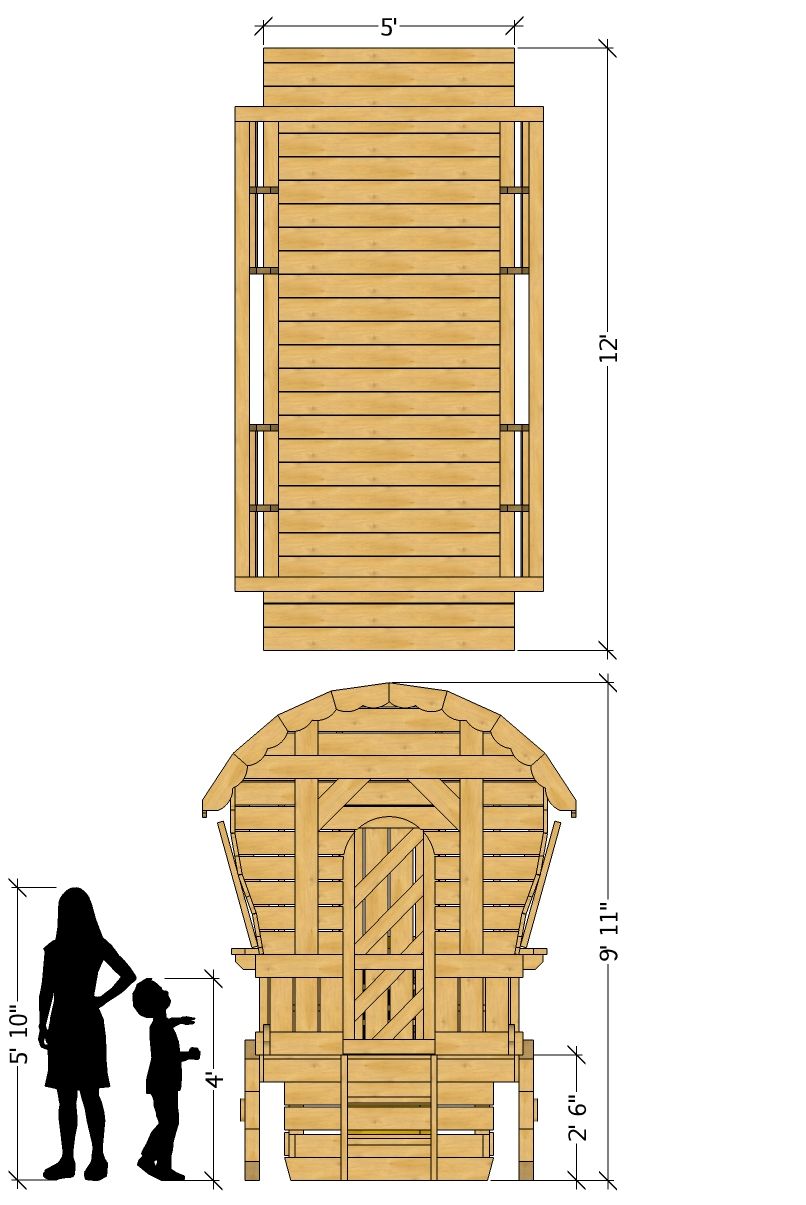

Dimensions:

  • 6' Wide
  • 12' Deep
  • 10' 7" Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x4 - 16" O.C.

Roofing Details:

  • 40-0° gable roof pitch
  • 120 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(22)  5/4” x 6” x 8'
(4)  5/4” x 6” x 10'
(37)  5/4” x 6” x 12'

Framing:

(10)  2” x 4” x 8'
(12)  2” x 4” x 10'
(28)  2” x 4” x 12'

(9) 2” x 6” x 12'

(1) 4” x 4” x 8'
(2) 4” x 4” x 10'

Trim:
(2) 1” x 4” x 8'
(2) 1” x 4” x 10'
(2) 1” x 4” x 12'

Balusters:
(32) 2" x 2" x 36”

Plywood:
(5) 3/4" Sheets

Hardware List:

  • (10 lbs) GRK 3” R4 Screws
  • (10 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
