Happy Camper Playset Plan・2-Sizes

$ 55.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping


Camping has been an all American tradition for more than the last century.  Whether we took a camper, RV or just the family station wagon or van, many of us can relate to roughing it out with the family, for better or for worse at some point in our past.  The idea behind this design was to turn that tradition into a tangible and attractive playhouse.

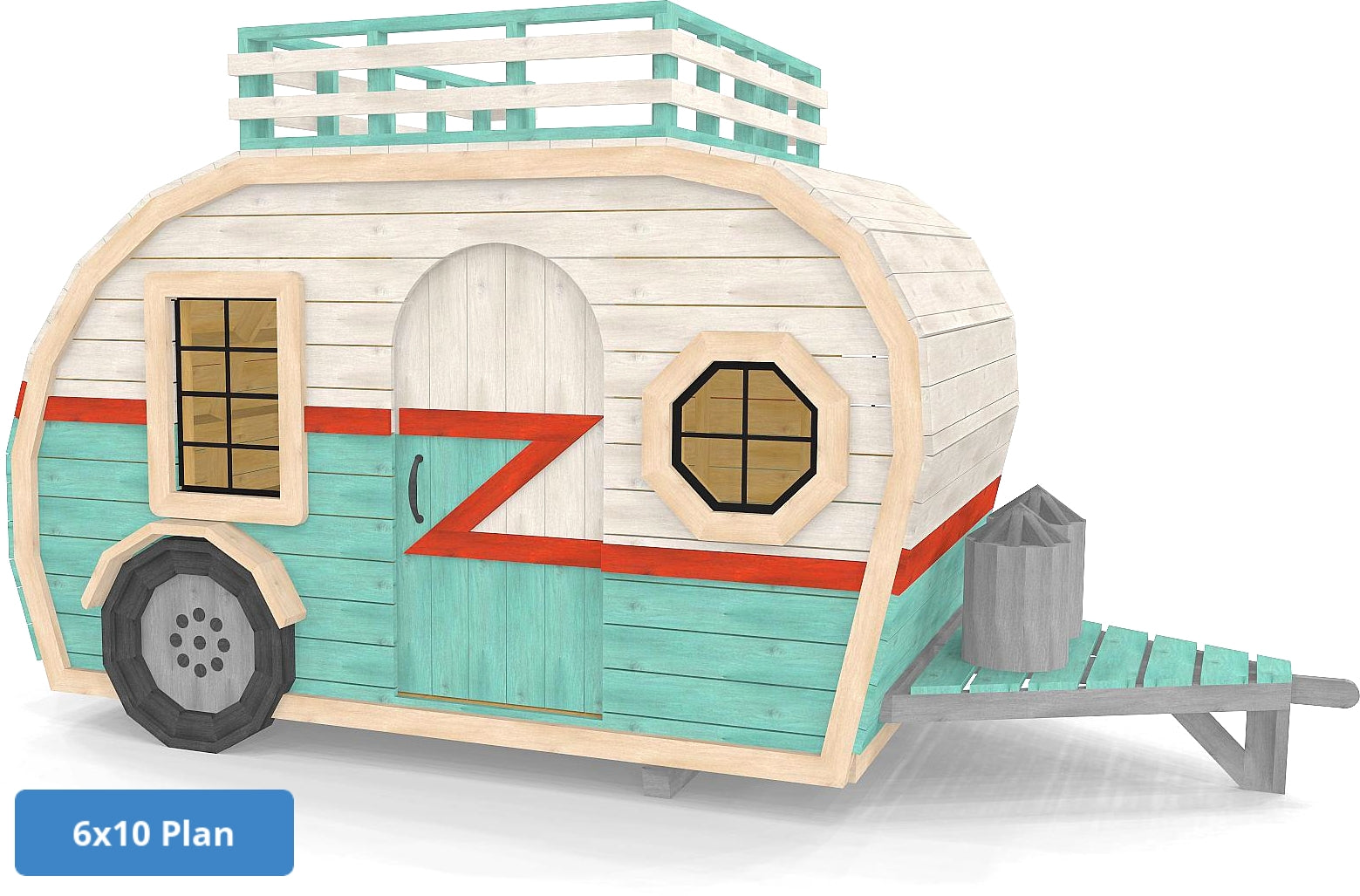

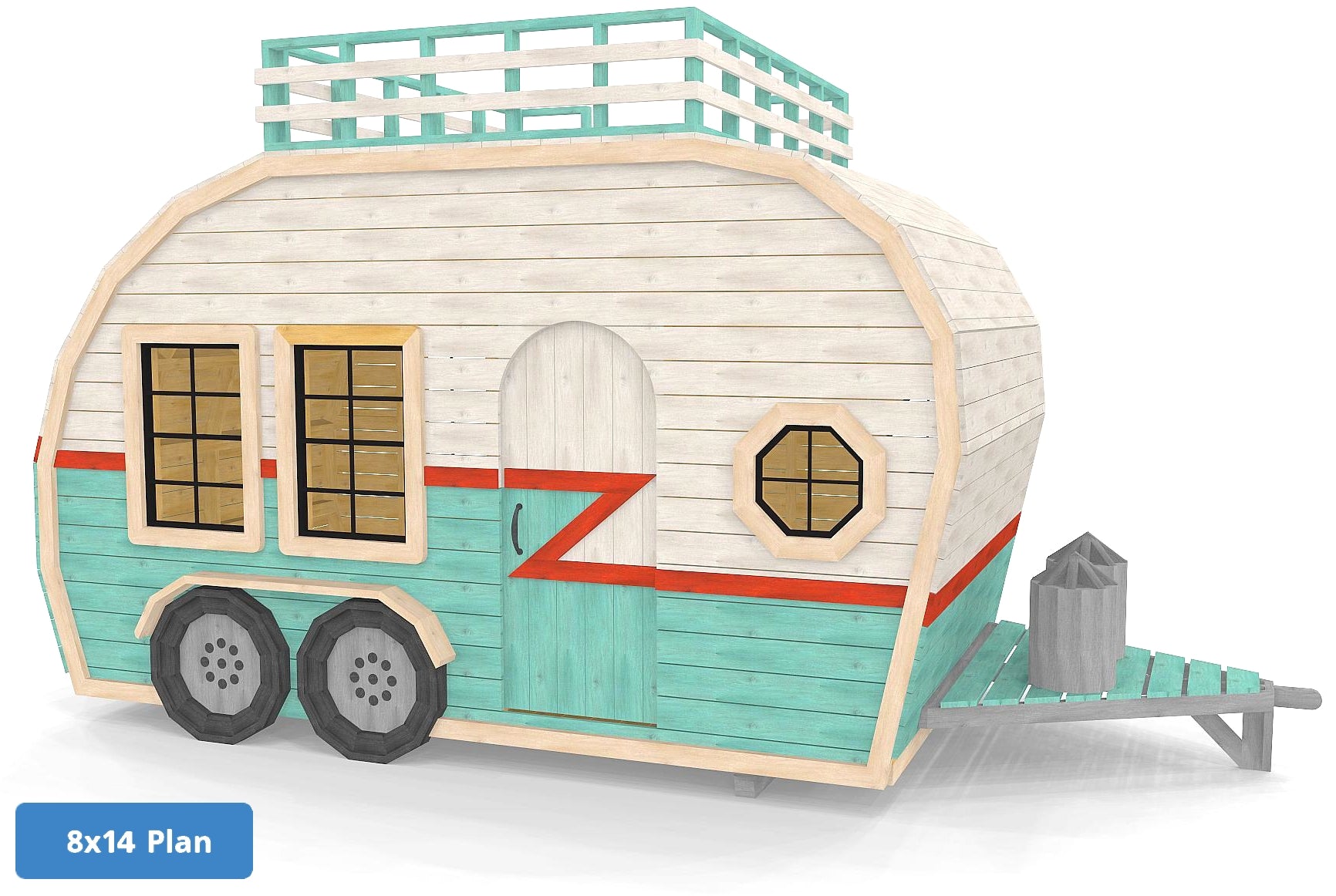

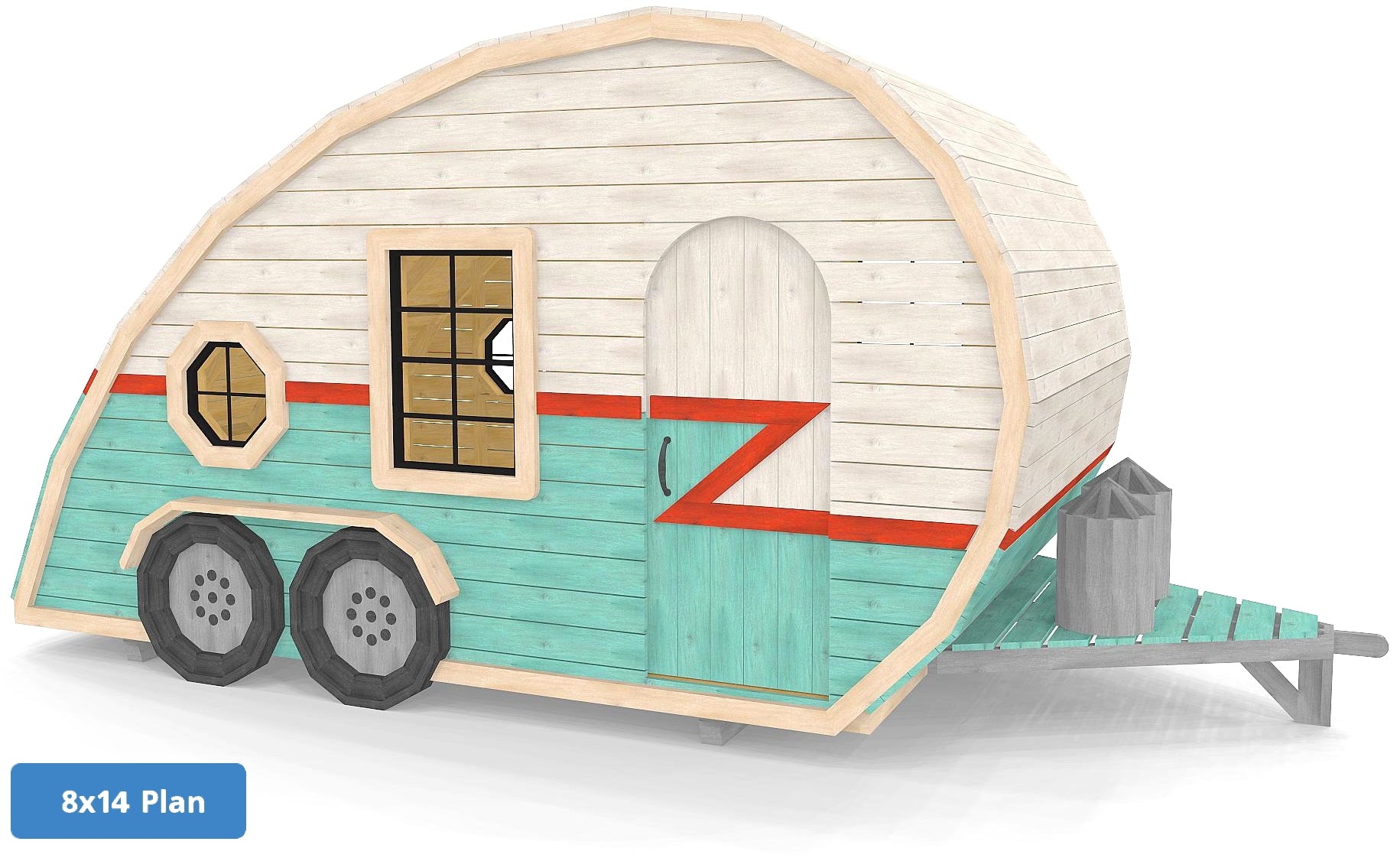

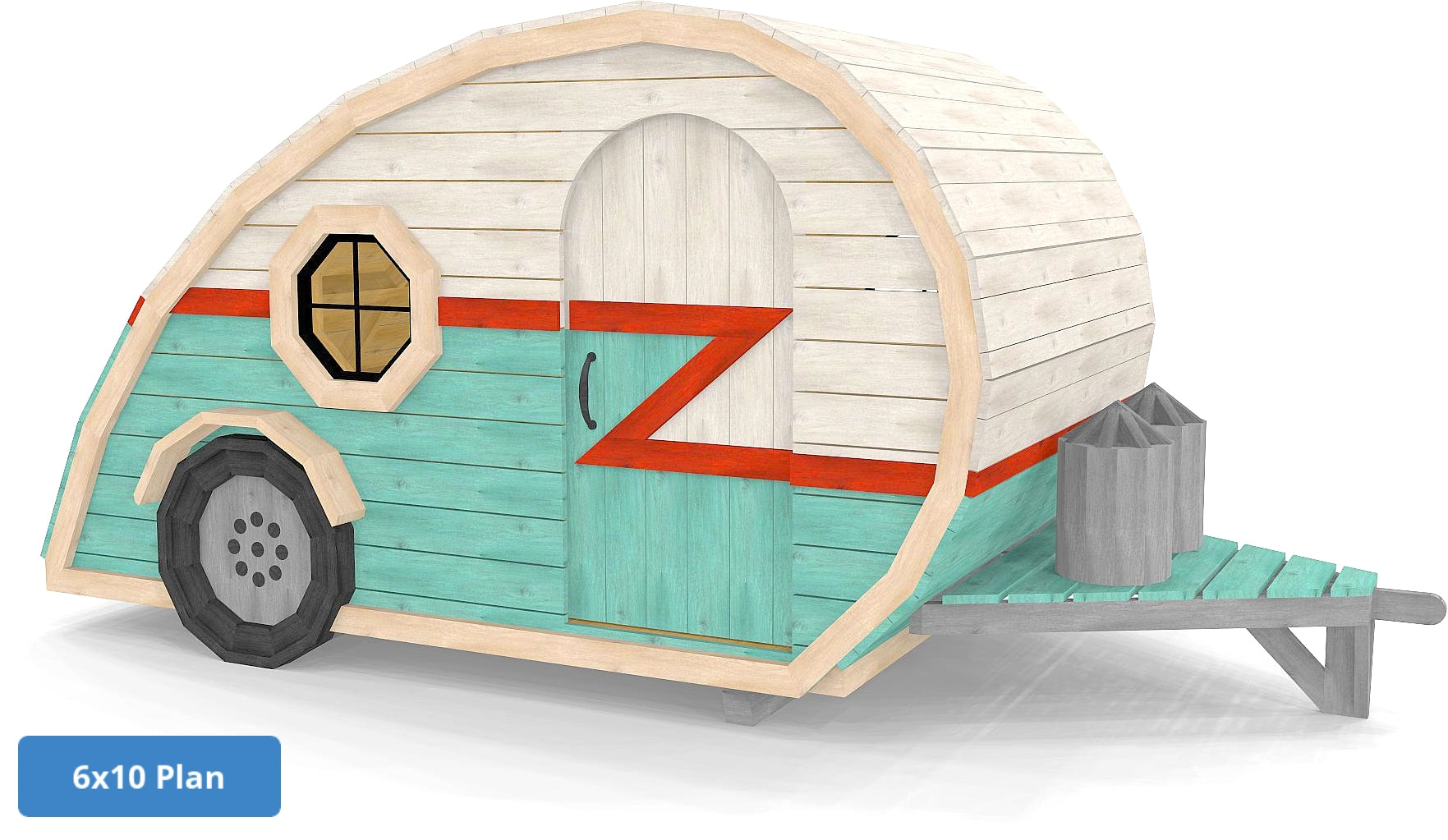

Based on the 50s style stainless steel campers, these 6x10 and 8x15 glamper plans are a colorful and captivating trailer fit for the kid who loves the outdoors.  If you want your children to experience glamping to it's full potential, this is it.  Spare tire not included.

You can also read this great article about how two grandparents turned the Happy Camper plan into something really magical and glamorous for their granddaughters.  The colors and interior decorating they incorporated is quite inspiring!

Looking for something more traditional?  Make sure to look at our Romani wagon plan too!

    Features:

    • Two level play-set with a total of 60 ft² (8x10) or 120 ft² (8x15) in usable space
    • Includes instructions to build a rock wall
    • Outside ladder to the 2nd floor
    • 4' (6x10) or 6' (8x15) max interior head room
    • Five 18" x 27" (6x10) or 2' x 3' (8x15) window openings
    • Designed for children aged 3-10
    • 43 page (6x10) and 58 page (8x15), step by step PDF plan

    Plan Category:

    🚂 Vehicle Playset Plans

    Dimensions (6x10):

    • 14' Wide
    • 6' Deep
    • 7' Tall

    Dimensions (8x15):

    • 21' Wide
    • 8' Deep
    • 10' Tall

    Framing Details:

    • Joists: 2x4 - 16" O.C. (6x10)
    • Joists: 2x6 - 16" O.C. (8x15)
    • Walls: 2x4 - 16" O.C.

    Windows:

    • (5) 18" x 27" single pane, shed windows (6x10)
    • (5) 2' x 3' single pane, shed windows (8x15)

    Lumber List (6x10):

    Make sure to ask about and take advantage of any volume discount from your local lumber yard!

    Decking:
    (11) 5/4" x 6 x 8'
    (7) 5/4" x 6 x10
    (31) 5/4" x 6 x 12'

    Framing:

    (26) 2” x 4” x 8'
    (12) 2” x 4” x 10'
    (16) 2” x 4” x 12'

    Plywood:

    (1) 4' x 8' x 1/2” Plywood

    Lumber List (8x15):

    Make sure to ask about and take advantage of any volume discount from your local lumber yard!

    Decking:
    (153) 5/4" x 6 x 8'
    (4) 5/4" x 6 x10
    (9) 5/4" x 6 x 12'

    Framing:

    (48) 2” x 4” x 8'
    (25) 2” x 4” x 10'
    (27) 2” x 4” x 12'

    (23) 2” x 6” x 8'
    (5) 2” x 6” x 10'
    (4) 2” x 6” x 12'

    (2) 2” x 2” x 8'
    (9) 2” x 2” x 3'

    (4) 4” x 4” x 8'

    Plywood:

    (2) 4' x 8' x 1/2” Plywood

    Hardware List:

    • (10lbs) GRK 3” R4 Screws
    • (15lbs) GRK 2.5” R4 Screws
    • (Optional) GRK 4” RSS Screws
