The 6x6 and 8x8 Red Summit swing set plan bring simple design and minimal material costs to the forefront, while still providing a load of fun for children off all ages. A perfect backyard family project for novice builders who are looking to get their feet wet.
A simplified re-imaging of our Molly's Playset design, this DIY playset plan features an elevated platform which one or two slides can be attached too. Included in the design is a ship ladder, rock wall and 12' swing set arm designed to support 3 swings. A gable roof provides shelter from the sun and rain, while the bottom can be used as a sand box.
Looking for larger version of this design? Check out our Sky Sentry Playset Plan that triples the square footage and adds a crow's nest!
Features:
- 36 ft² (6x6) or 64 ft² (8x8) of usable play space
-
Sand box can be used at the bottom of the structure
- Several attachment points for slides, swings, cargo nets, rock walls and other accessories
-
Gable roof provides shelter from rain & sun
- Built in rock wall, ladder and stairs
-
12' long swing-set attachment in rear
-
Elevated design allows play area underneath
- Designed for children aged 2-9
-
40 page, step by step PDF plan
Plan Category:

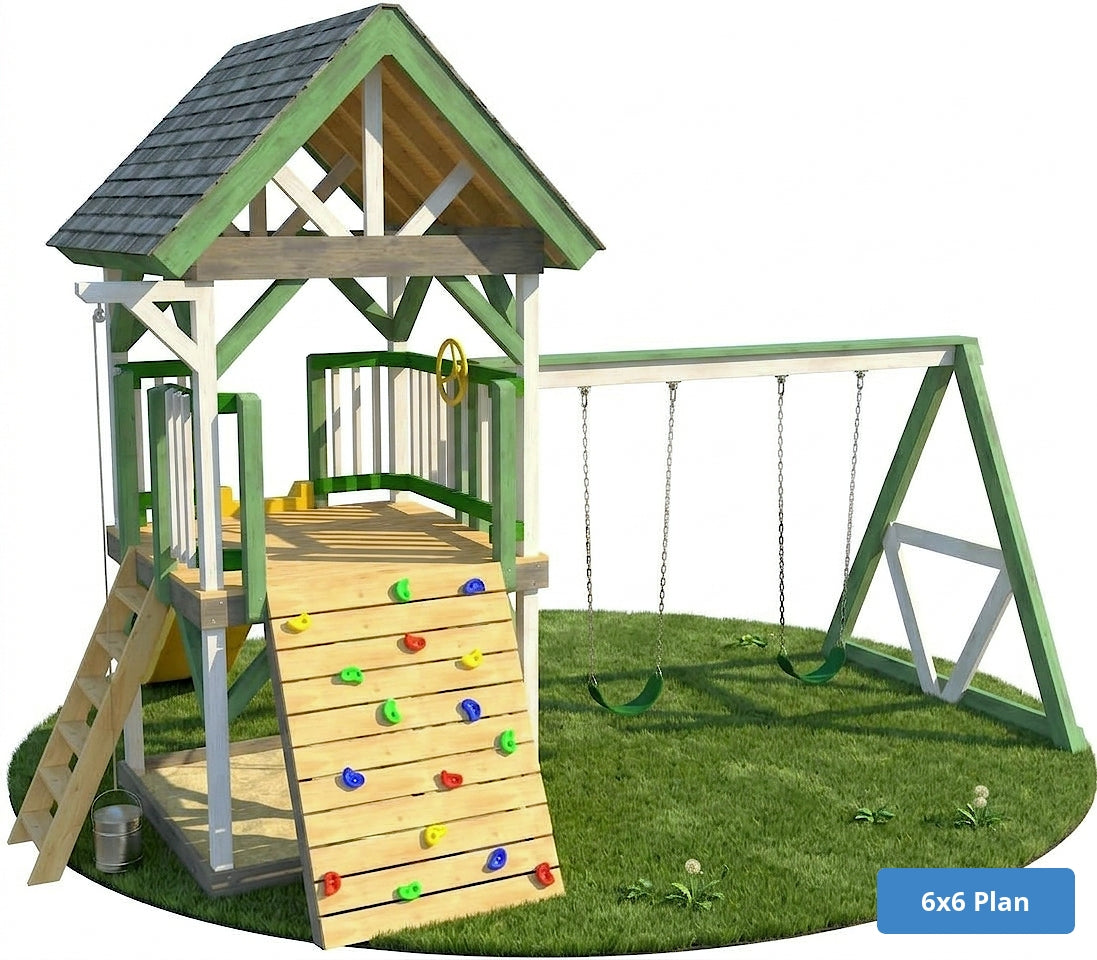

6x6 Dimensions:
- 6' Wide (No Ladder & Swings)
- 22' Wide (Ladder & Swings
- 6' Deep (No Ladder & Swings)
- 9.5' Deep (Ladder & Swings)
- 13.5' Tall

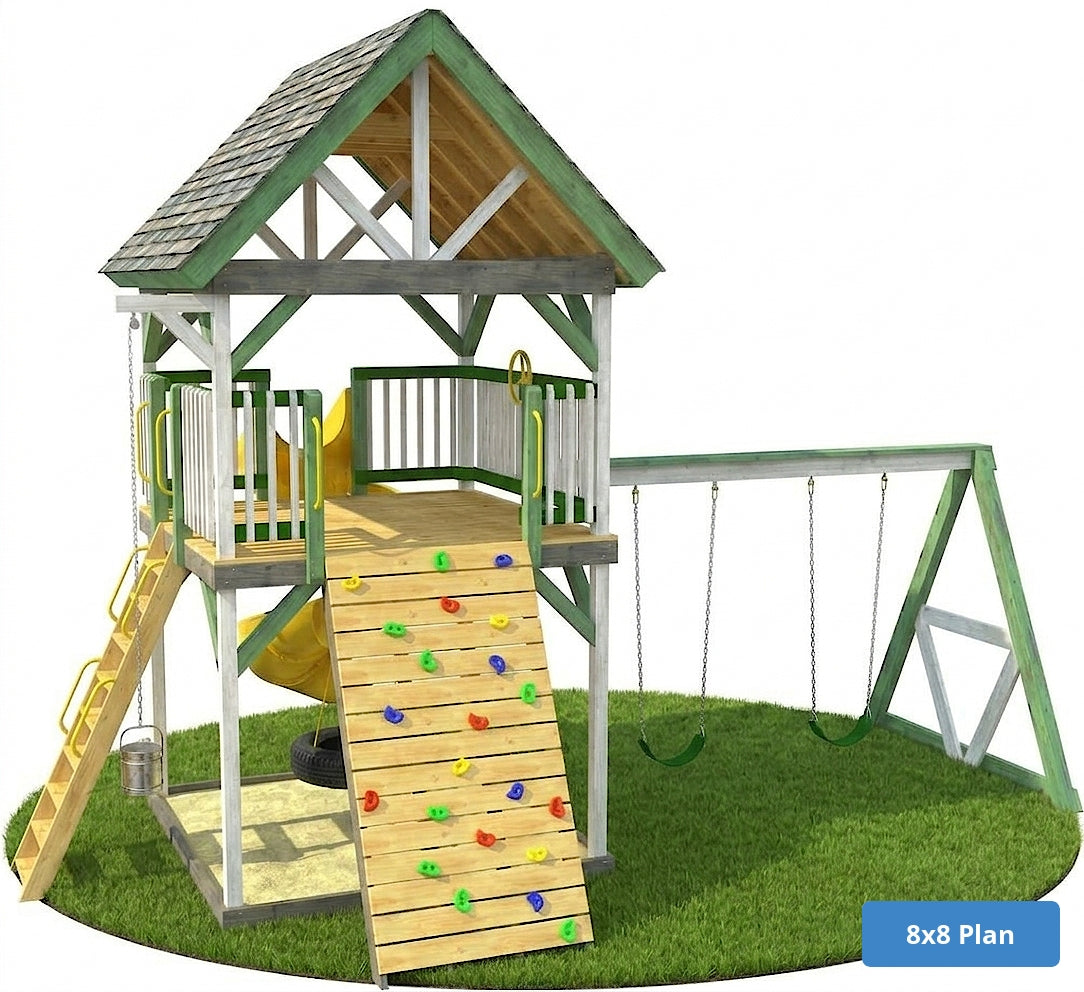

8x8 Dimensions:
- 8' Wide (No Ladder & Swings)
- 24' Wide (Ladder & Swings
- 8' Deep (No Ladder & Swings)
- 11.5' Deep (Ladder & Swings)
- 16.5' Tall
Framing Details:
- Joists: 2x6 - 16" O.C.
- Rafters: 2x6 - 16" O.C.
- Railings: 2x4
Roofing Details:
- 45° gable roof pitch
- 70 ft² (6x6) and 115 ft² (8x8) of total roof coverage. Typically, 10% should be added to the roofing material order to account for waste and overlap.
6x6 Lumber List:
Make sure to ask about and take advantage of any volume discount from your local lumber yard!
Decking:
( 1 ) 5/4” x 6” x 8'
( 6 ) 5/4” x 6” x 12'
Framing:
( 3 ) 2” x 4” x 8'
( 4 ) 2” x 4” x 12'
( 1 ) 2” x 6” x 8'
( 9 ) 2” x 6” x 10'
( 11 ) 2” x 6” x 12'
( 1 ) 2” x 8” x 8'
( 3 ) 2” x 8” x 12'
( 3 ) 4” x 4” x 8'
( 9 ) 4” x 4” x 12'
( 3 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'
Plywood:
( 3 ) ½" Plywood Sheets
( 1) ⅝" PT Plywood Sheet
Balusters:
( 44 ) 3” x 3” x 3'
8x8 Lumber List:
Make sure to ask about and take advantage of any volume discount from your local lumber yard!
Decking:
( 17 ) 5/4” x 6” x 8'
Framing:
( 10 ) 2” x 4” x 8'
( 2 ) 2” x 4” x 12'
( 39 ) 2” x 6” x 8'
( 2 ) 2” x 6” x 10'
( 2 ) 2” x 6” x 12'
( 4 ) 2” x 8” x 8'
( 1 ) 2” x 8” x 10'
( 1 ) 2” x 8” x 12'
( 4 ) 4” x 4” x 8'
( 4 ) 4” x 4” x 12'
( 4 ) 4” x 4” x 16'
( 3 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'
Plywood:
( 4 ) ½" Plywood Sheets
( 1) ⅝" PT Plywood Sheet
Balusters:
( 44 ) 3” x 3” x 3'
Hardware List:
- (10 lbs) GRK 3” R4 Screws
- (10 lbs) GRK 2” R4 Screws
- (Optional) GRK 4” RSS Screws
- ( 40 ) ½" x 8" Carriage Bolts
