O'Connor Swing-Set Plan・2-Sizes

$ 65.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans
No P.O. Box Shipping

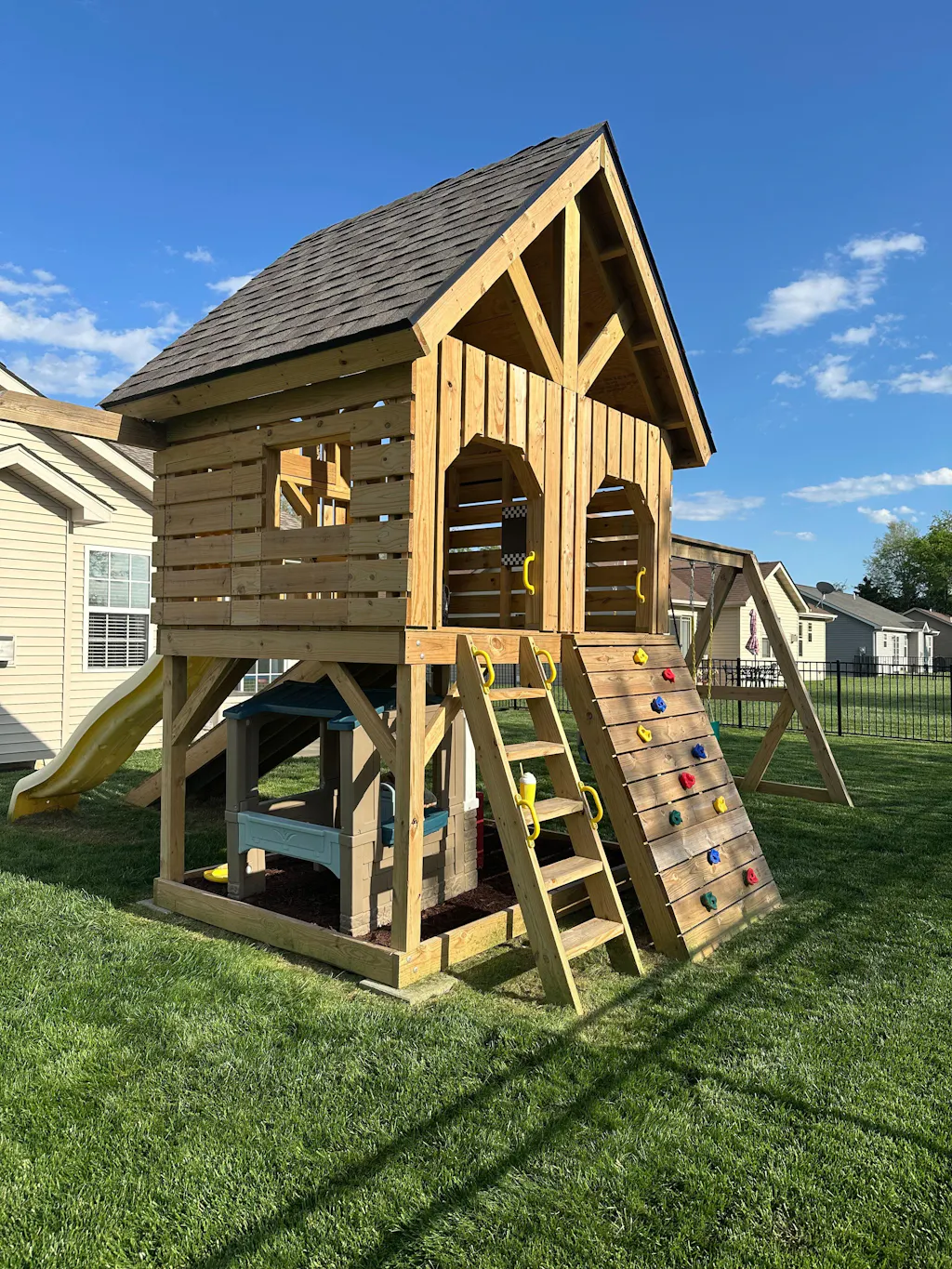

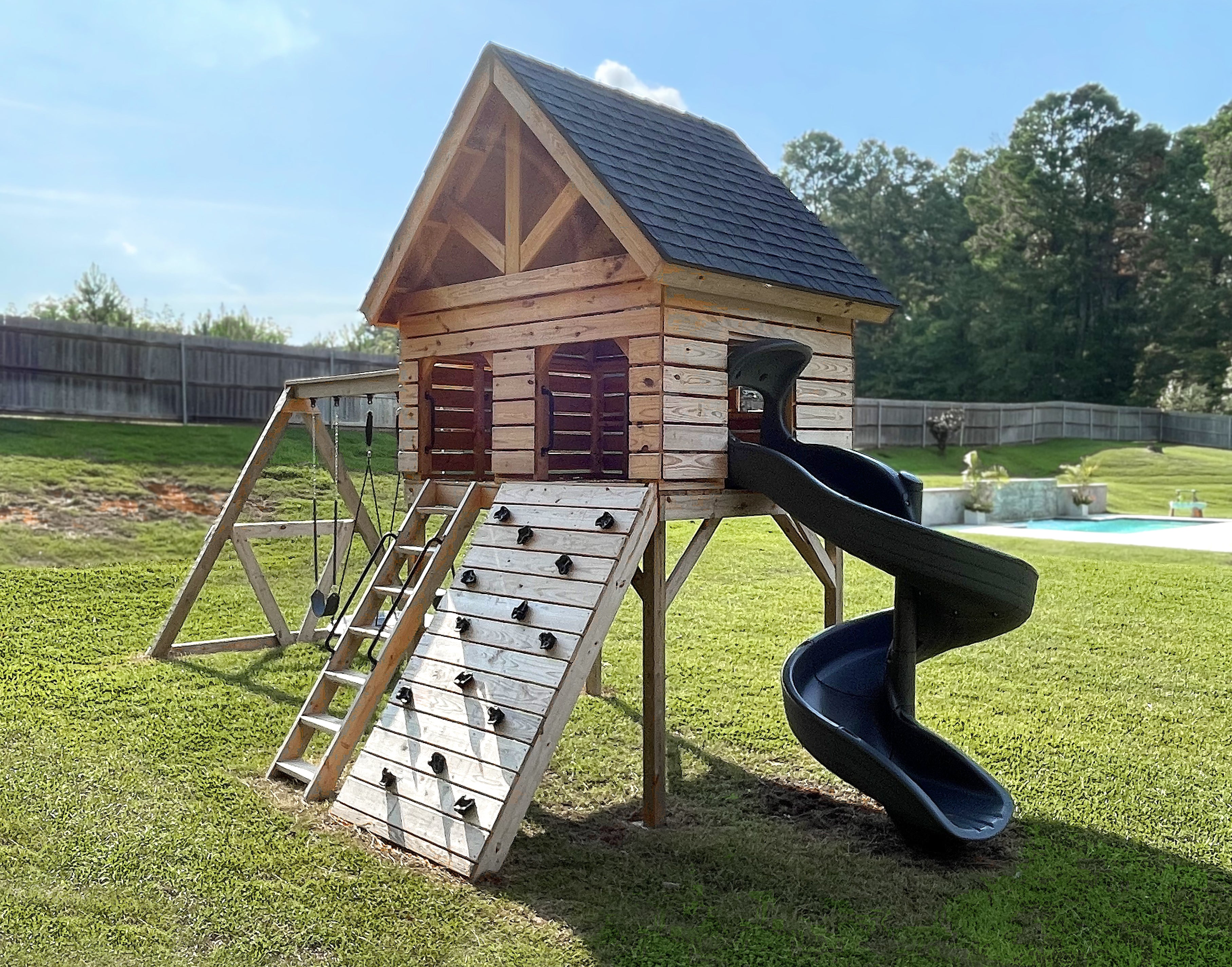

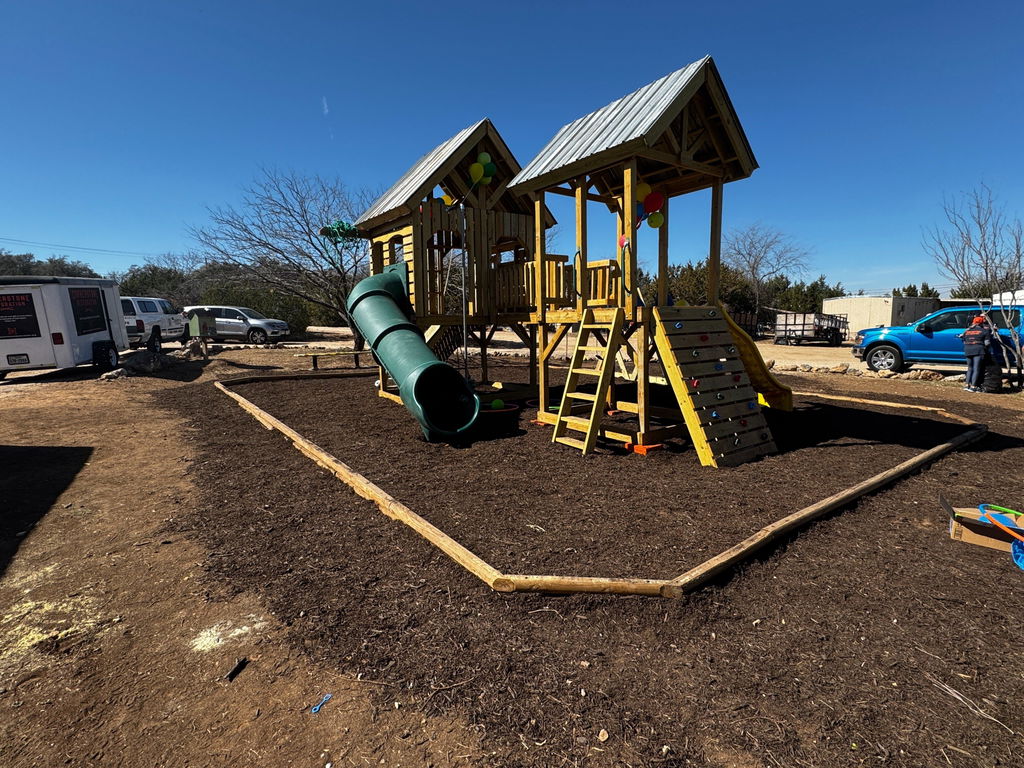

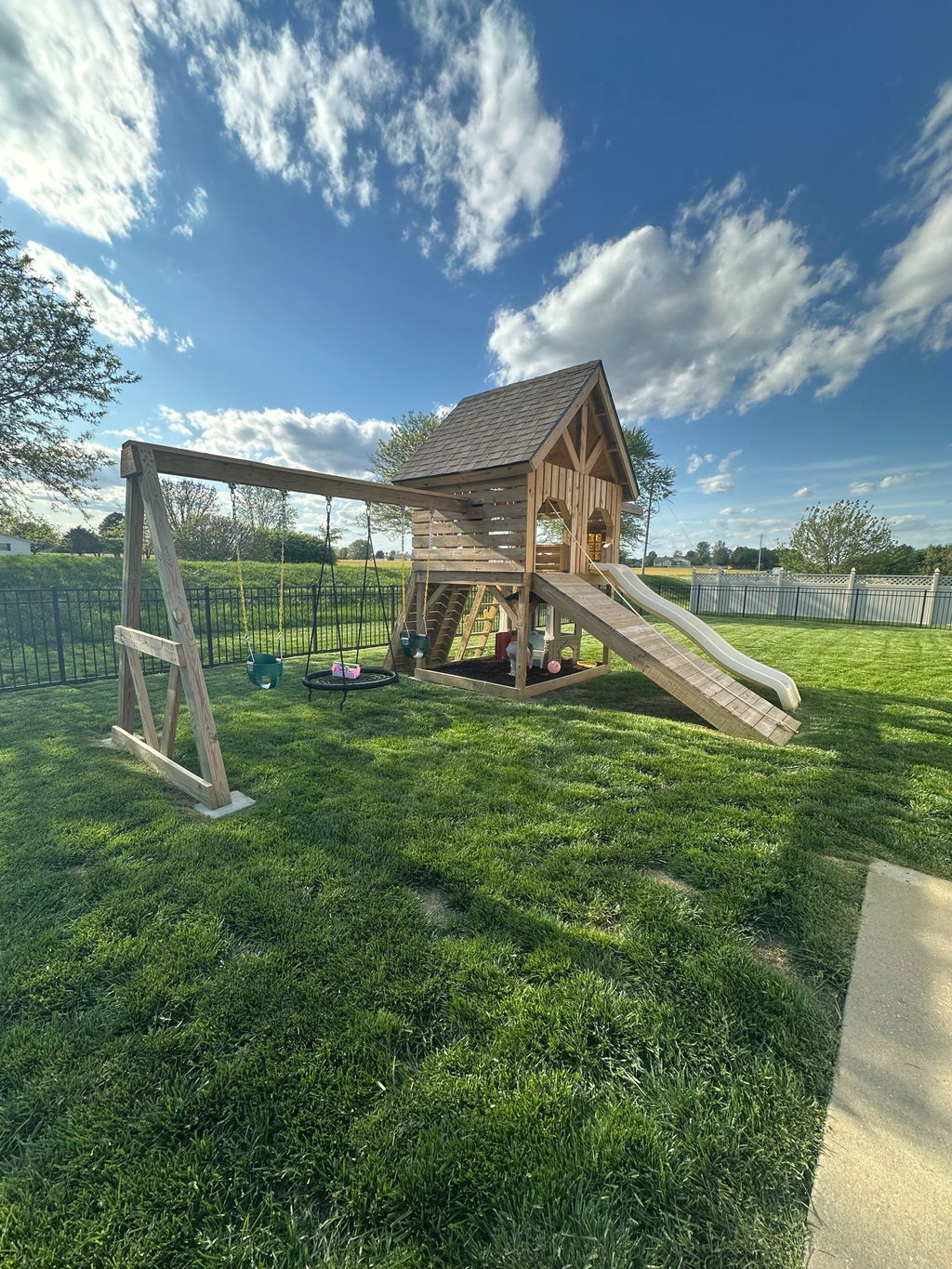

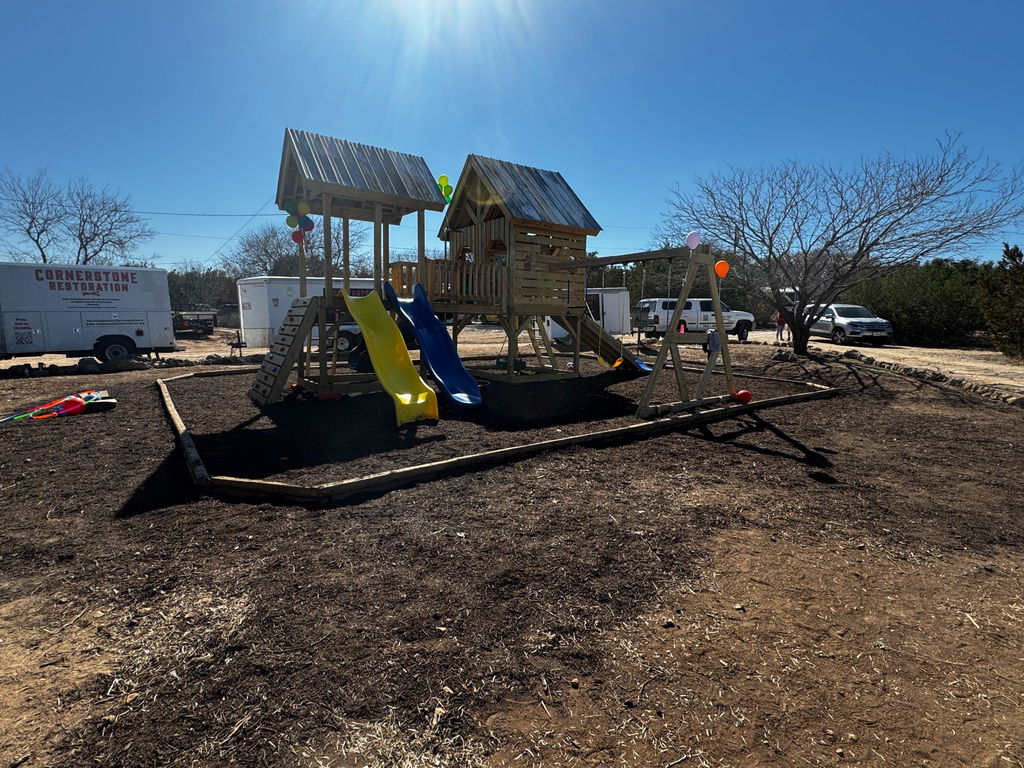

The O'Connor Swing-Set plan is one of our mid-sized playground blueprints. Designed for kids aged 3-12, this plan comes in both the standard 8✕17 size and the deluxe 26✕29 size.  This playset is perfect for a family of 2 or more and parents with a drive to build something cool!

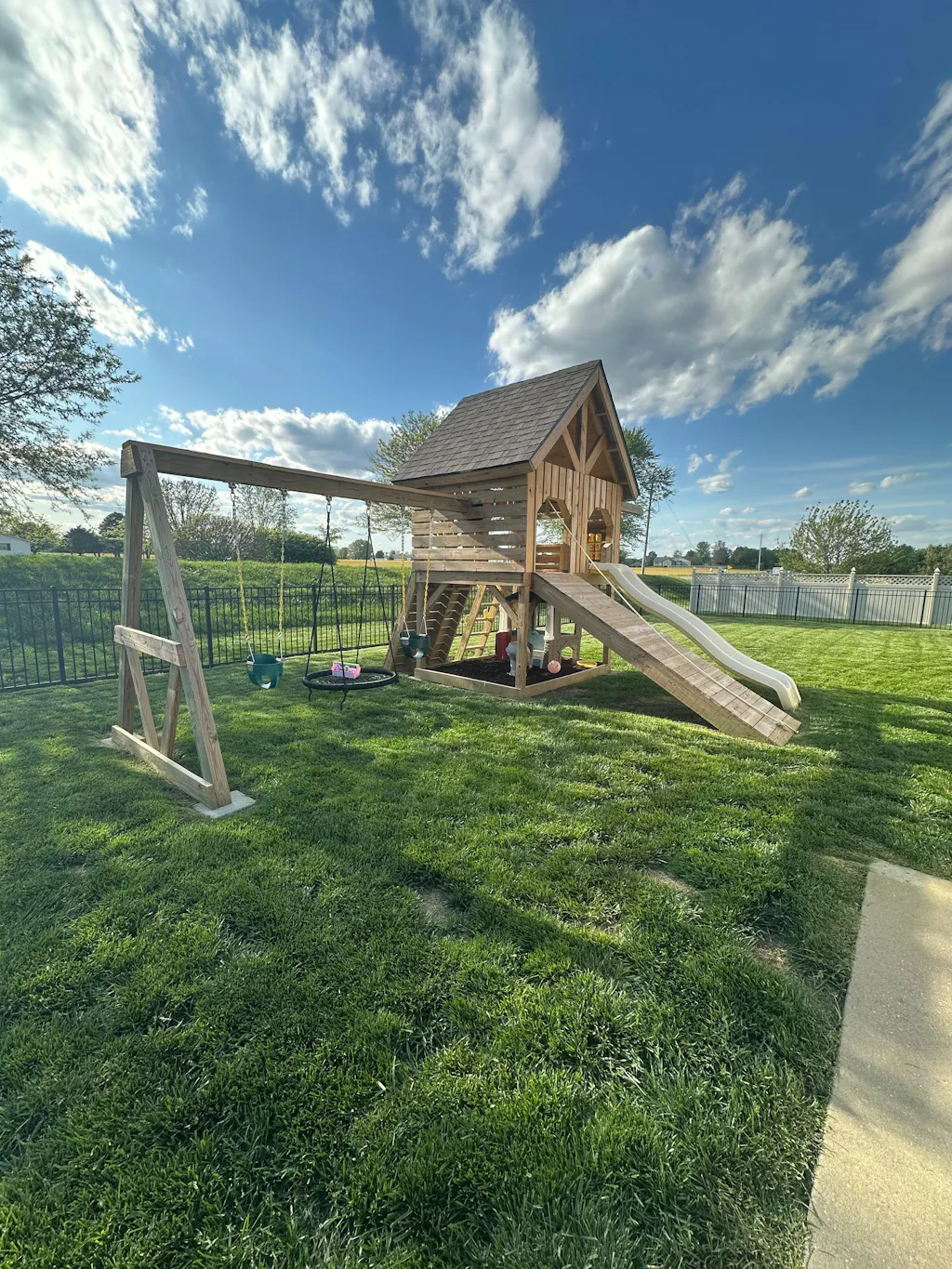

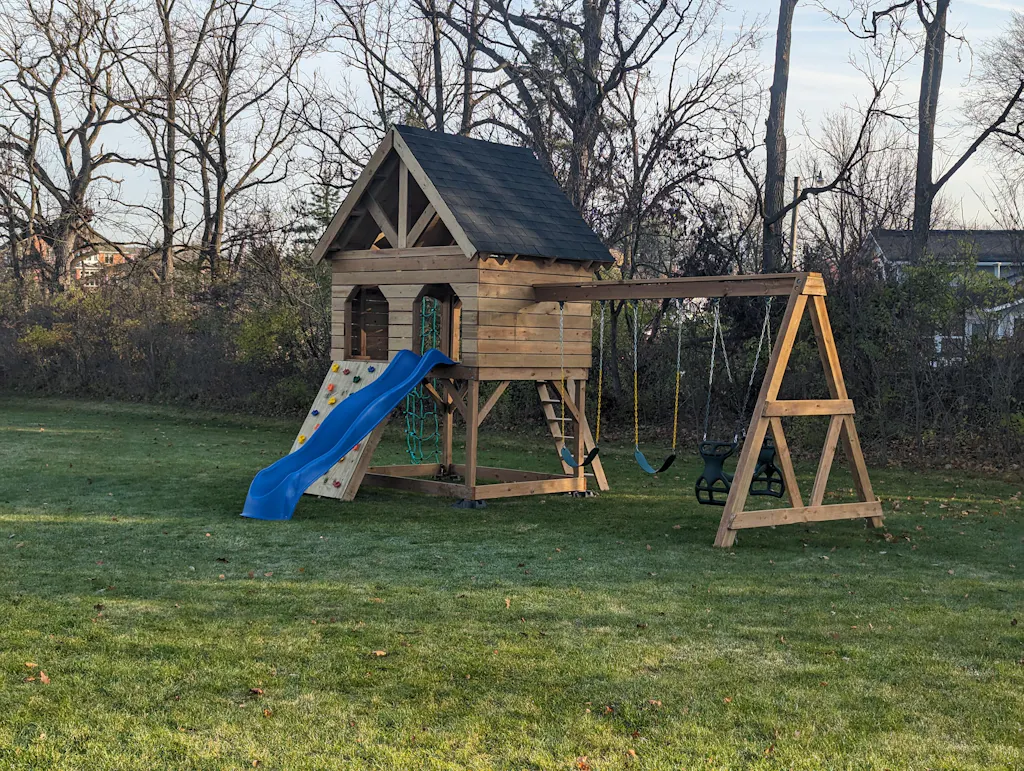

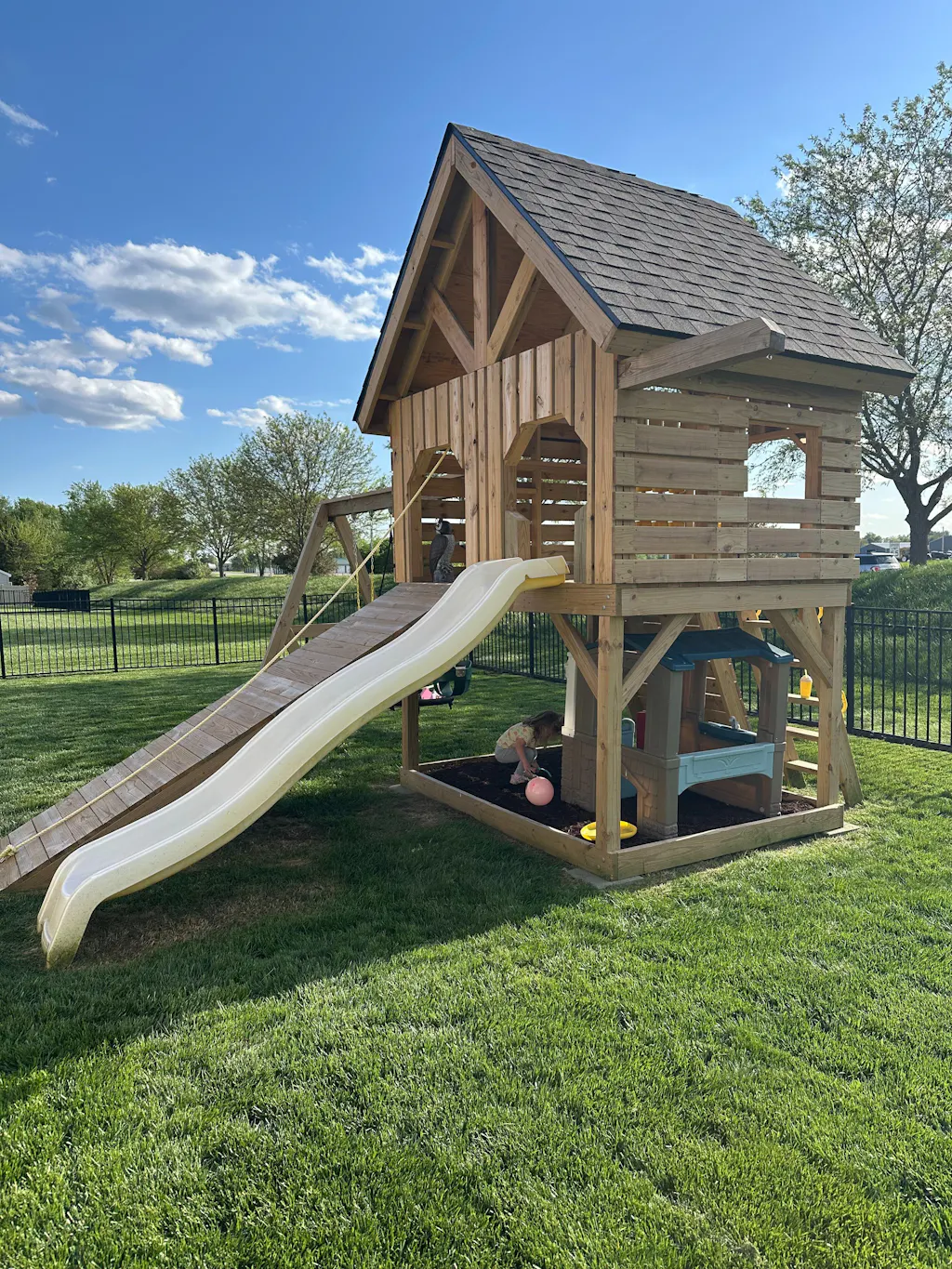

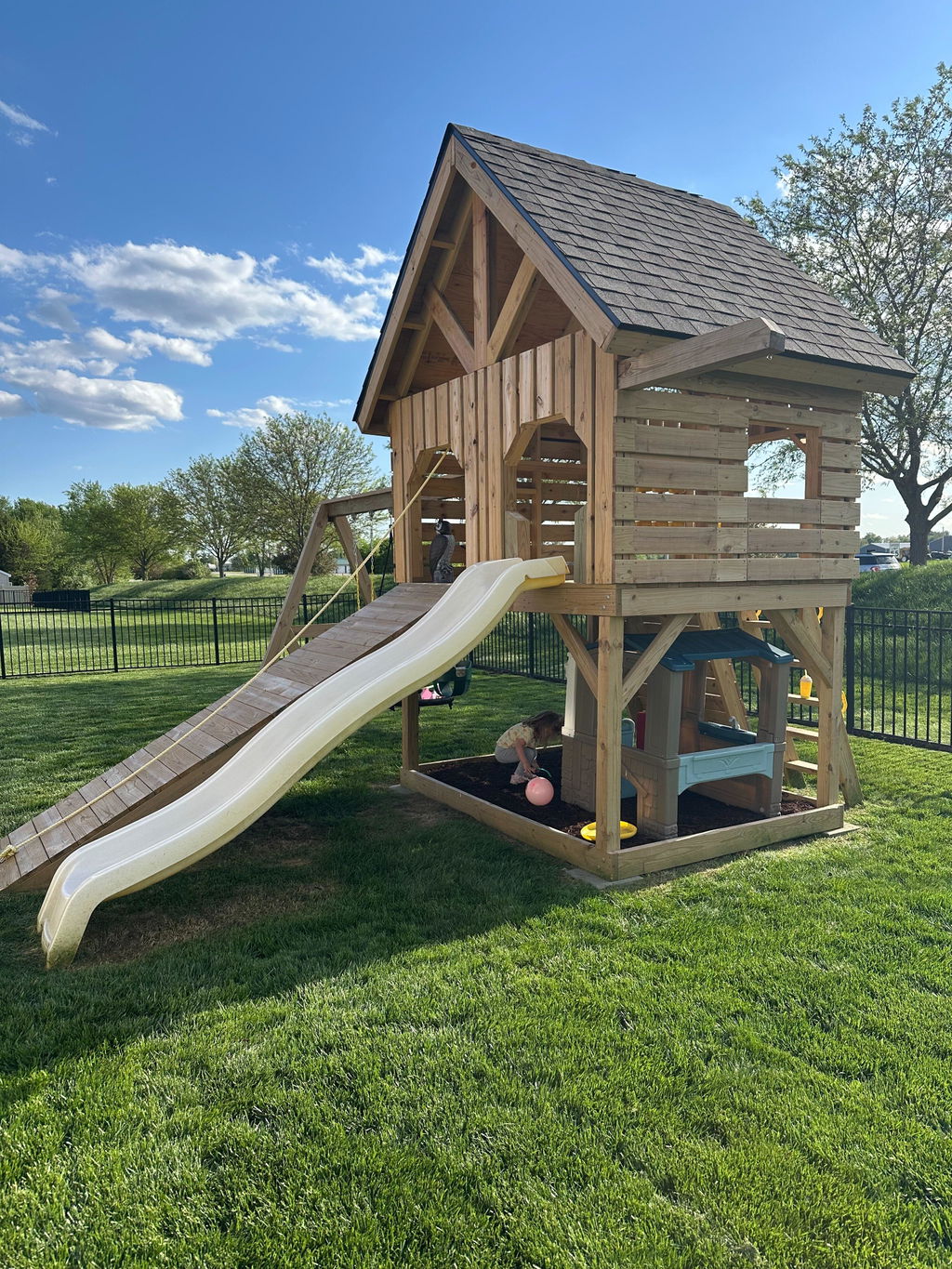

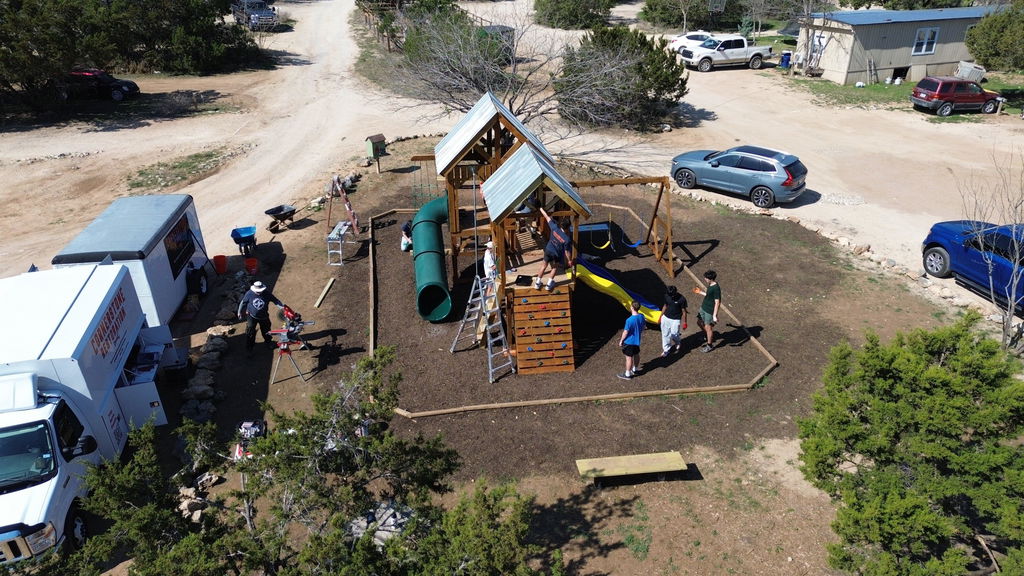

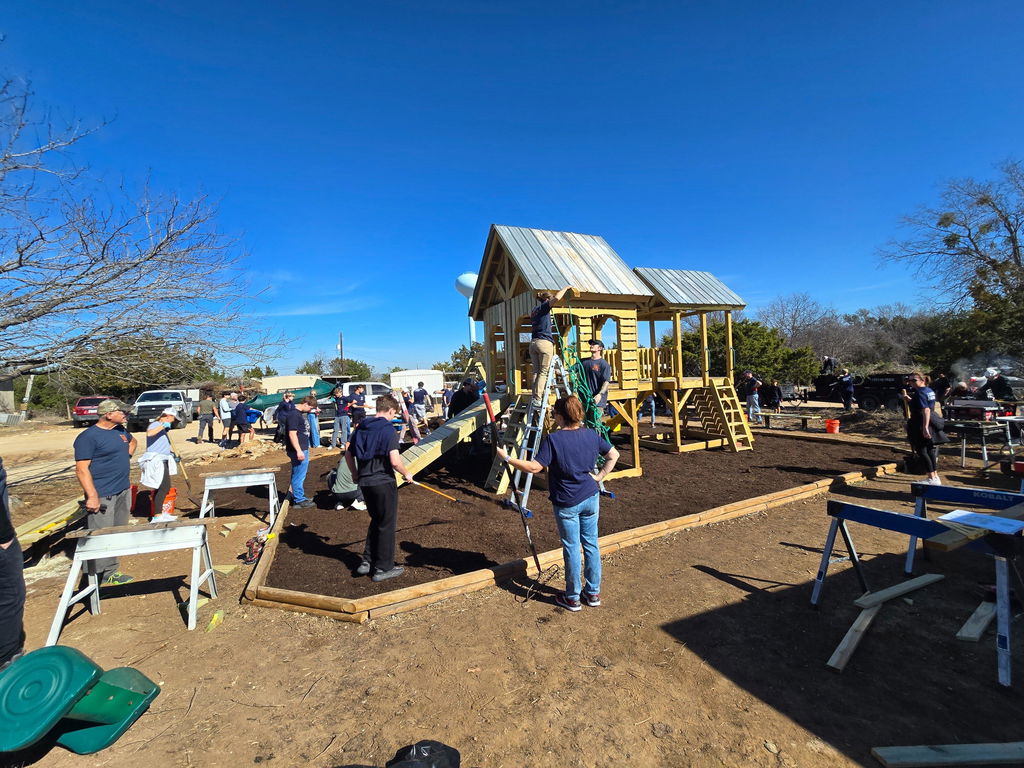

The O'Connor is modeled to be more in the mainstream, pre-assembled style of backyard playgrounds, with the caveat of being totally DIY with step by step illustrations and instructions.  Made up of two levels and a gable roof, the O'Connor swing set plan totals 96 square feet of play space and includes a 12' swing-set, as well as a rock wall and gang plank.  A great backyard project for active children!

What to watch a full build of this playset?  Check out this video.

Features:

  • One of our most popular projects with high levels of interactivity and engagement
  • Two level swingset with a total of 96 ft² (standard) or 177 ft² (deluxe) in usable space
  • Includes instructions to build a rock wall, gang plank and ship ladder
  • 12' swing-set attachment @ 7½' clearance
  • 4 (standard) or 11 (deluxe) total entrances/exits on the 2nd level
  • 8' 5" Max interior head room
  • Designed for children aged 3-12
  • 49 page (standard) or 67 page (deluxe), step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

Dimensions (Standard):

  • 29½' Wide (w/ swing-set attachment)
  • 8' Wide (w/o swing-set attachment)
  • 17' Deep (w/ rock wall & gang plank)
  • 6' Deep (w/o rock wall & gang plank)
  • 13½' Tall

Dimensions (Deluxe):

  • 23½' Wide (w/ swing-set attachment)
  • 26½' Deep (w/ rock wall & gang plank)
  • 11' Deep (w/o rock wall & gang plank)
  • 13½' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 45° gable roof pitch
  • 96 ft² (standard) or 166 ft² (deluxe) of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List (Standard):

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(32) 5/4" x 6 x 8'
(16) 5/4" x 6 x12'

Framing:

(7) 2” x 4” x 8'
(4) 2” x 4” x 10'
(9) 2” x 4” x 12'

(20) 2” x 6” x 8'
(6) 2” x 6” x 10'
(7) 2” x 6” x 12'

(2) 2” x 8” x 8'
(5) 2” x 8” x 12'

(3) 4” x 6” x 10'
(1) 4” x 6” x 12'
(2) 4" x 4" x 10'

Plywood:
(4) 4' x 8' x ½” Plywood
(1) 4' x 8' x ⅝” Plywood

Hardware List:

  • (10lbs) GRK 3” R4 Screws
  • (15lbs) GRK 2” R4 Screws
  • (Optional) GRK 4” RSS Screws

Lumber List (Deluxe):

Decking:
(17) 5/4" x 6 x 8'
(16) 5/4" x 6 x 10'
(20) 5/4" x 6 x 12'

Framing:

(19) 2” x 4” x 8'
(5) 2” x 4” x 10'
(12) 2” x 4” x 12'

(28) 2” x 6” x 8'
(14) 2” x 6” x 10'
(16) 2” x 6” x 12'

(3) 2” x 8” x 8'
(5) 2” x 8” x 12'

(2) 4" x 4" x 8'
(9) 4” x 4” x 10'
(1) 4” x 6” x 8'
(3) 4” x 6” x 10'
(1) 4” x 6” x 12'

Balusters:
(30) 2" x 2" x 3'

Plywood:
(6) 4' x 8' x ½” Plywood
(1) 4' x 8' x ¾” Plywood

Hardware List:

  • (20lbs) GRK 3” R4 Screws
  • (2lbs) GRK 2” R4 Screws
  • (Optional) GRK 4” RSS or Timber Screws
Not sure you can build this plan?
Hire a qualified professional.
