If you're faced with the task of entertaining large groups of children with the perk of using a slight nautical twist, look no further than the Edward Thatch pirate ship playground plan. This design takes the original ship play-set and expands it with two other platforms connected by bridges and ramps.
In addition to the Edward Thatch pirate ship plan, you will receive instructions to add two more, elevated octagonal platforms, along with two ramps and a connecting bridge, allowing more space to add slides, cargo nets, fire poles and other cool accessories.
Features:
- Two story, three sectional play-set with a total of 350ft² in usable space
- Includes instructions to build two rock walls, gang plank, fire poles and ship ladder
- Roof covering for the large octagonal platform
- Trap door from the 1st to 2nd level of the large octagonal platform
- Bucket & pulley post
- 6 total entrances/exits
- 2 ramps & 1 bridge
- Space for multiples slides, cargo nets or other peripherals
- Designed for children aged 3-10
- 101 page, step by step PDF plan
Plan Category:
🏴☠️ Pirate Ship Playhouse Plans

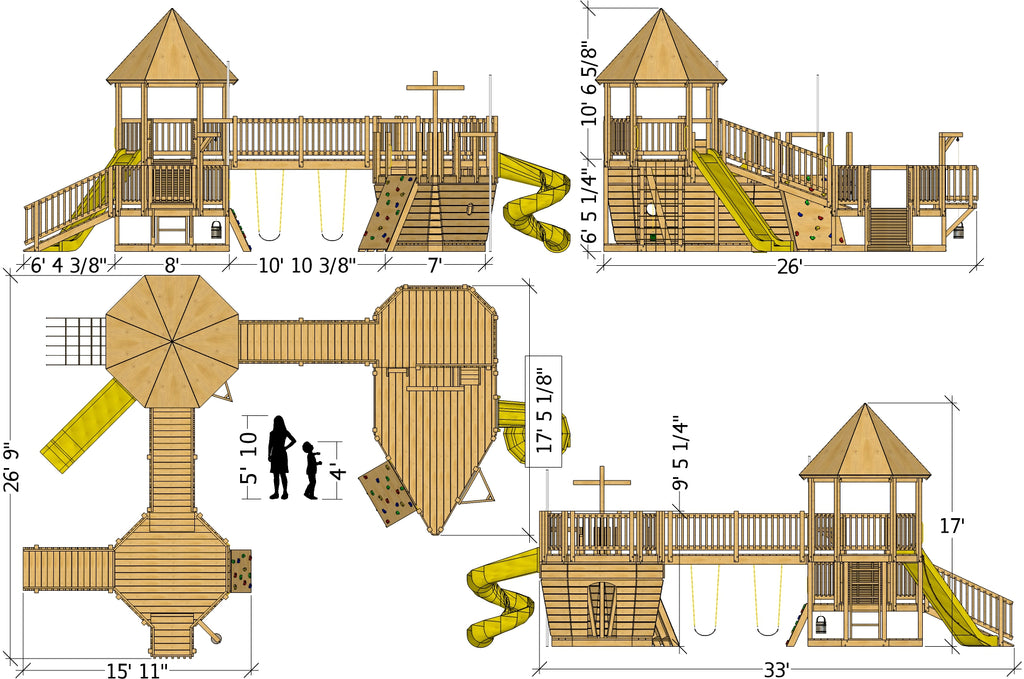

Dimensions:
- 33' Wide
- 26' Deep
- 17' Tall
Framing Details:
- Joists: 2x6 - 16" O.C.
- Walls: 2x4 - 16" O.C.
- Rafters: 2x6 - 16" O.C.
Roofing Details:
- 45° gable roof pitch
- 104 ft² of total roof coverage. Typically, 10% should be added to the roofing material order to account for waste and overlap.
Lumber List:
Make sure to ask about and take advantage of any volume discount from your local lumber yard!
Decking:
(91) 5/4” x 6” x 8'
(45) 5/4” x 6” x 10'
(28) 5/4” x 6” x 12'
Framing:
(26) 2” x 4” x 8'
(28) 2” x 4” x 10'
(18) 2” x 4” x 12'
(51) 2” x 6” x 8'
(18) 2” x 6” x 10'
(13) 2” x 6” x 12'
(3) 2” x 6” x 16'
(4) 2” x 8” x 10'
(1) 2” x 8” x 12'
(42) 4” x 4” x 8'
(2) 4” x 4” x 12'
(1) 4” x 6” x 16'
Plywood:
(8) 4' x 8' x 1/2” Plywood Non-PT
(2) 4' x 8' x 5/8” Plywood PT
Hardware List:
- (20 lbs) GRK 3” R4 Screws
- (20 lbs) GRK 2.5” R4 Screws
- (Optional) GRK 4” RSS Screws
Hire a qualified professional.
