Edward Thatch Pirate Ship Plan

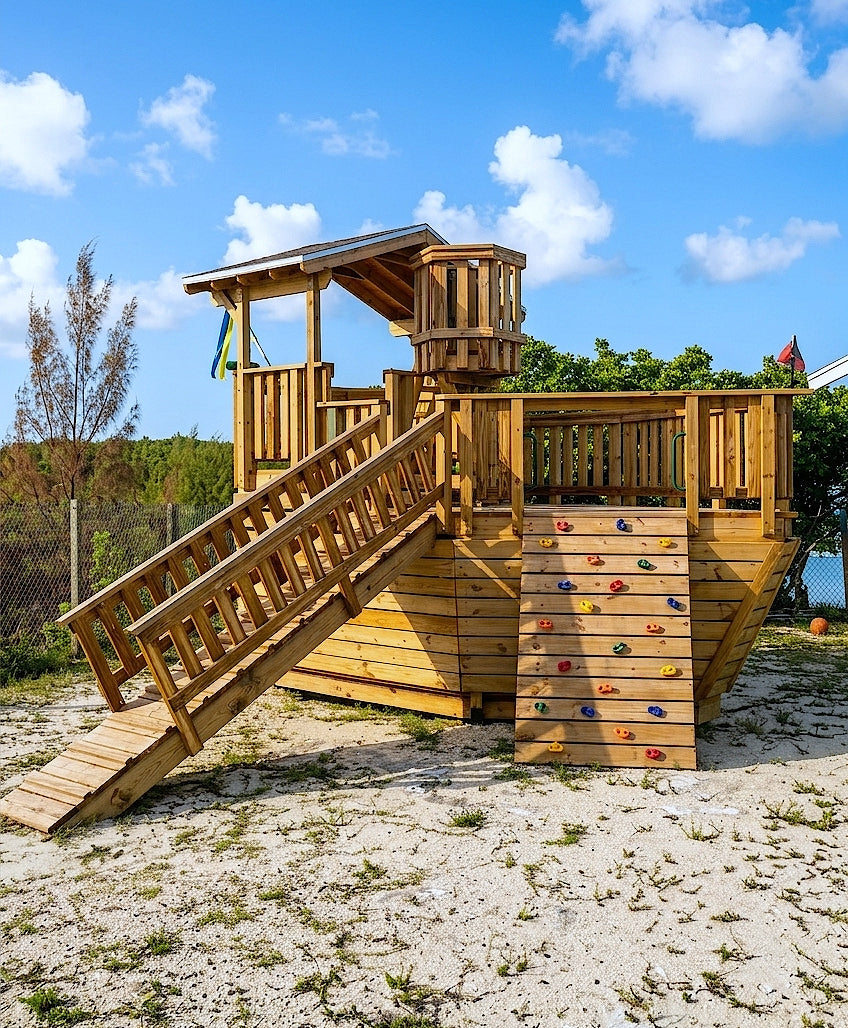

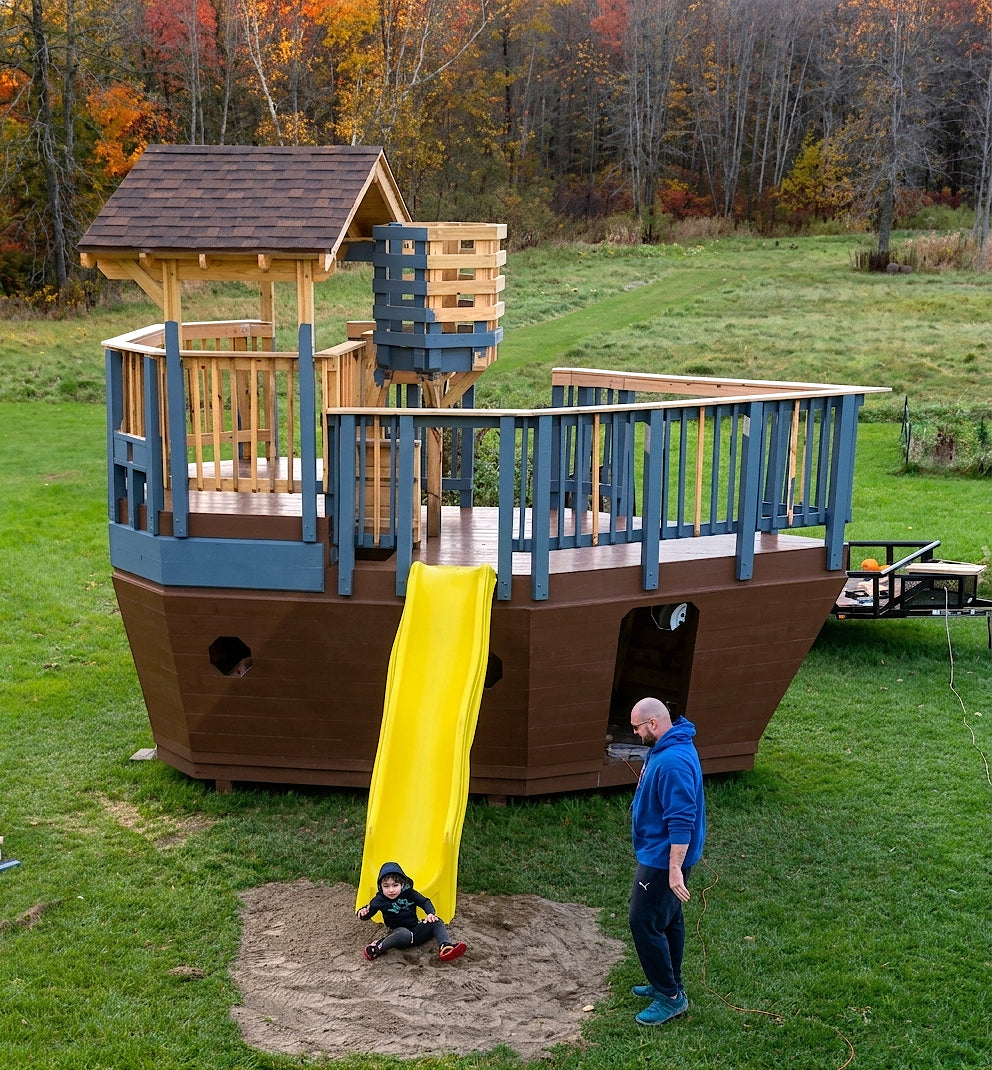

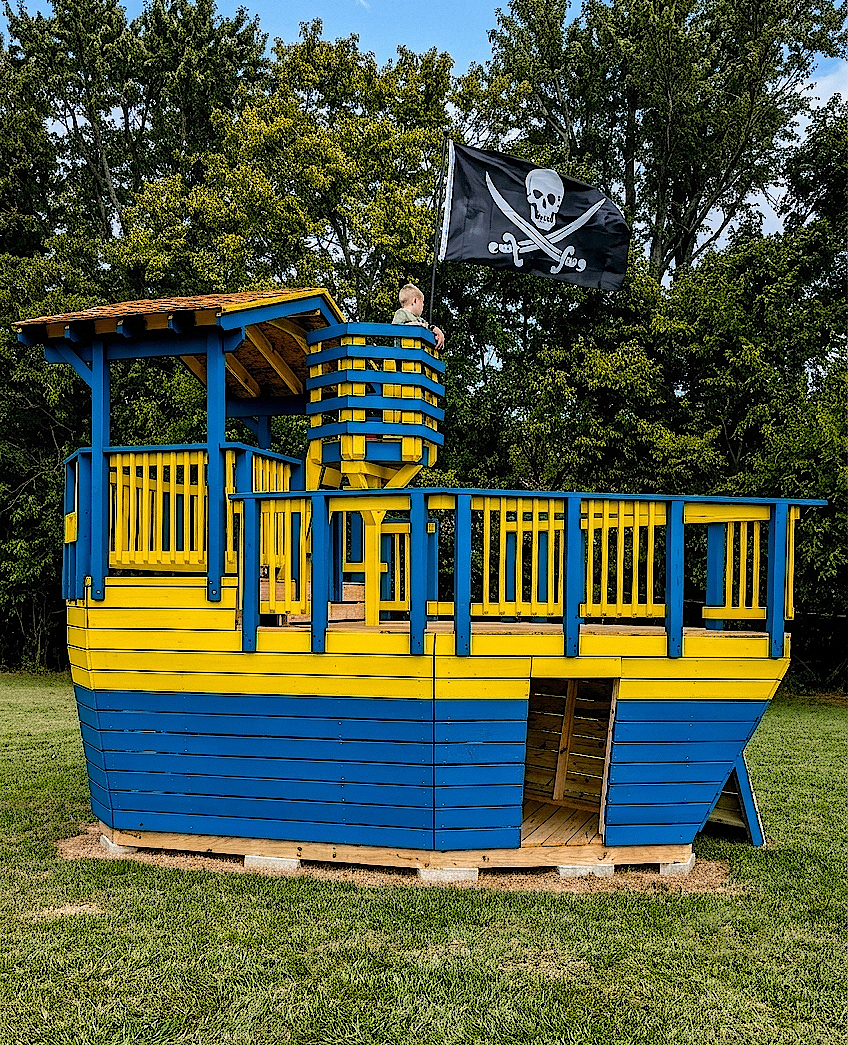

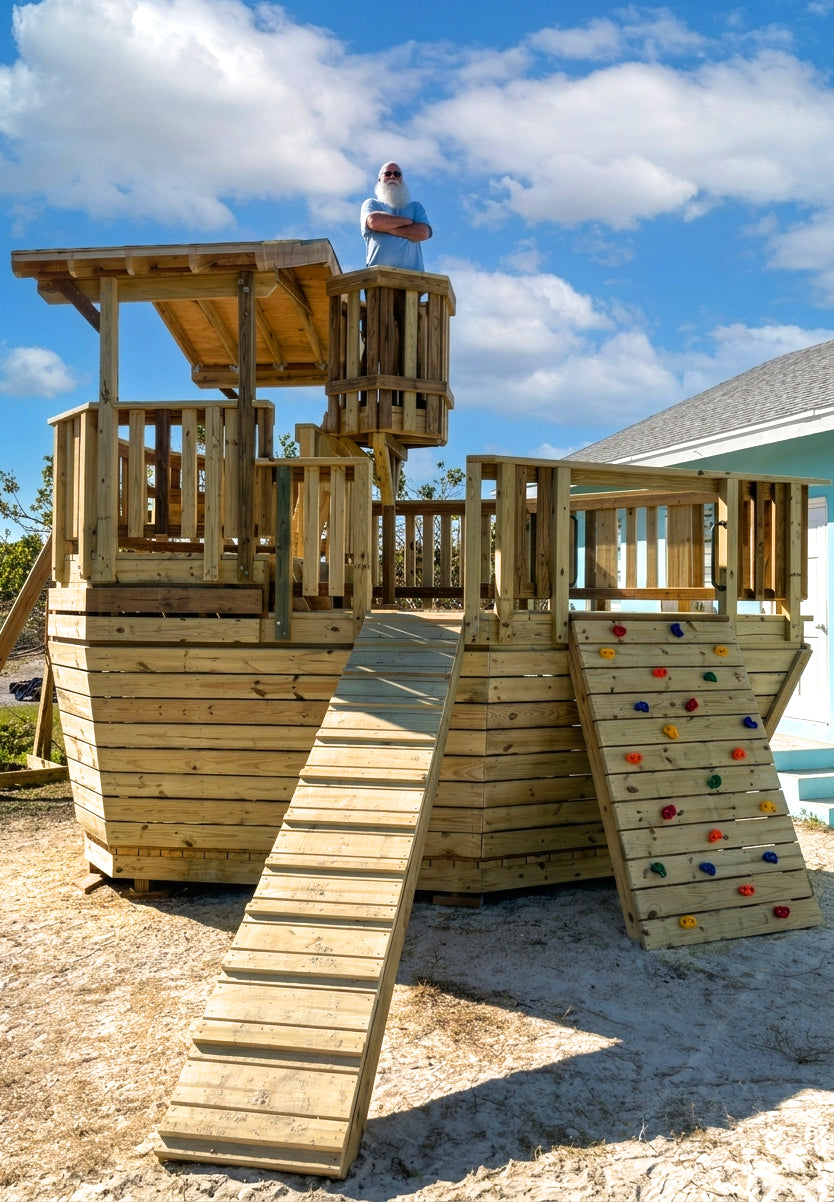

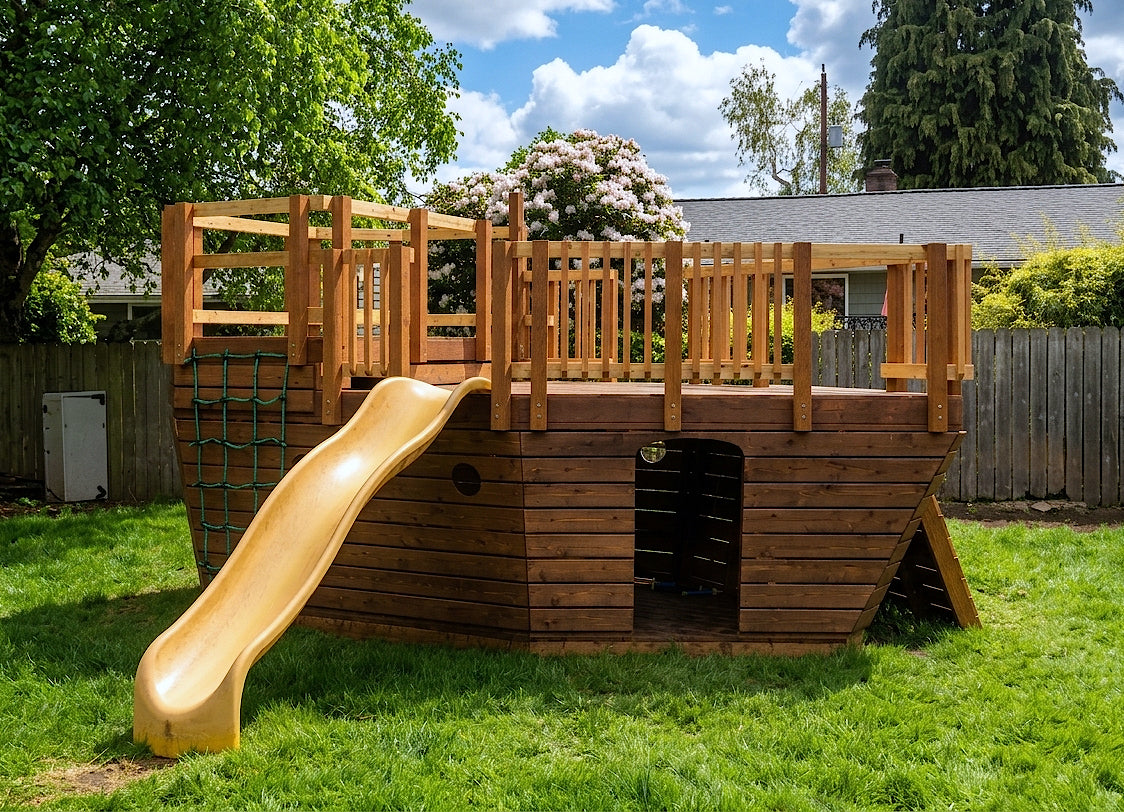

There is nothing more exciting than sailing the high seas, sporting an eye patch and exotic parrot while plundering innocent sailors trying to make a working man's living! The 8x17 Edward Thatch pirate ship play-set plan is our quintessential backyard kid's sailing vessel.

Big brother to the Crimson Raider pirate ship, the Edward Thatch is offered with two style options, this design is packed to the gills with neat details and options that'll keep those kiddos busy. The standard option offers a fire pole, rock wall, gang plank and slide, along with two levels. The Deluxe option provides a center crow's nest, solid canopy, railing cap and swing-set attachment. No matter the option you choose, your kids and their friends won't be able to get enough!

If this still isn't enough, you can choose to download the Playground version of this plan, which features two more platforms, ramps, bridges and more. Also be sure to sail over to our complete pirate ship plan page to see all of our ship ideas!

Features:

• 200ft² in usable play space
• Gang plank
• Rock Wall

• Room for slides
• Fire Pole
• Center Mast
• Crow's nest

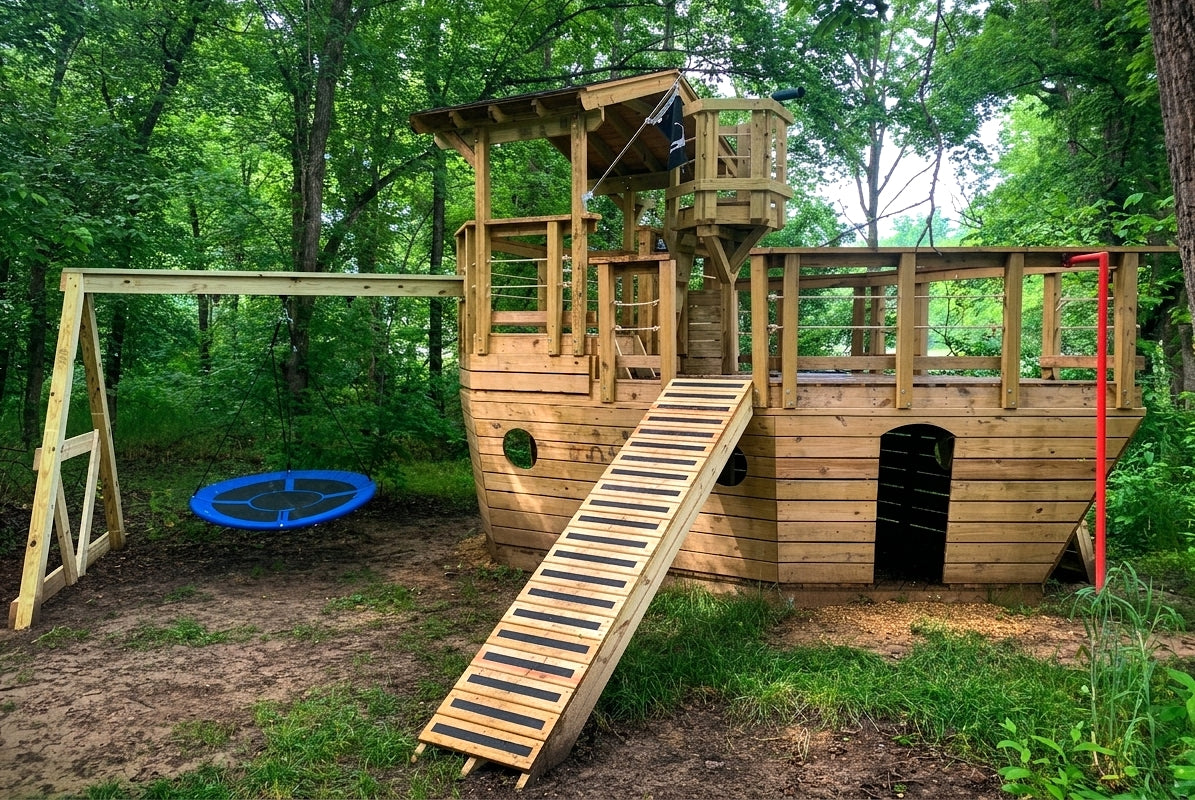

• Swing-set attachment

• Rear Solid Canopy

• 2 levels w/ ship ladder

• 57 page, step by step PDF plan

Plan Category:

🏴‍☠️ Pirate Ship Playhouse Plans

Dimensions:

• 7' Wide

• 28' Wide (w/ swing-set & gang plank)

• 15' Deep
• 28' Deep (w/ swing-set)
• 14' Tall

Lumber List:

Decking:
( 62 ) 5/4” x 6” x 8'
( 28 ) 5/4” x 6” x 10'
( 12 ) 5/4” x 6” x 12'

2x4:
( 27 ) 2” x 4” x 8'
( 22 ) 2” x 4” x 10'
( 5 ) 2” x 4” x 12'

2x6:
( 17 ) 2” x 6” x 8'
( 21 ) 2” x 6” x 10'
( 16 ) 2” x 6” x 12'
( 4 ) 2” x 6” x 16'

2x8:
( 2 ) 2” x 8” x 8'
( 4 ) 2” x 8” x 12'

4x4:
( 15 ) 4” x 4” x 8'
( 1 ) 4” x 4” x 10'
( 1 ) 4” x 4” x 12'

4x6:
( 3 ) 4” x 6” x 8'
( 1 ) 4” x 6” x 12'

2x2:
( 45 ) 2” x 2” x 3'
( 5 ) 2” x 2” x 8'

Plywood:
( 2 ) ⅝" PT Plywood
