Soaring Space Shuttle Playset Plan

$ 55.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping


If Space Camp is one of your favorite childhood, built several shuttle Lego sets and dreamed about one day feeling weightless in the stratosphere, you were either me or someone who just really liked every NASA and it's orbiter program.

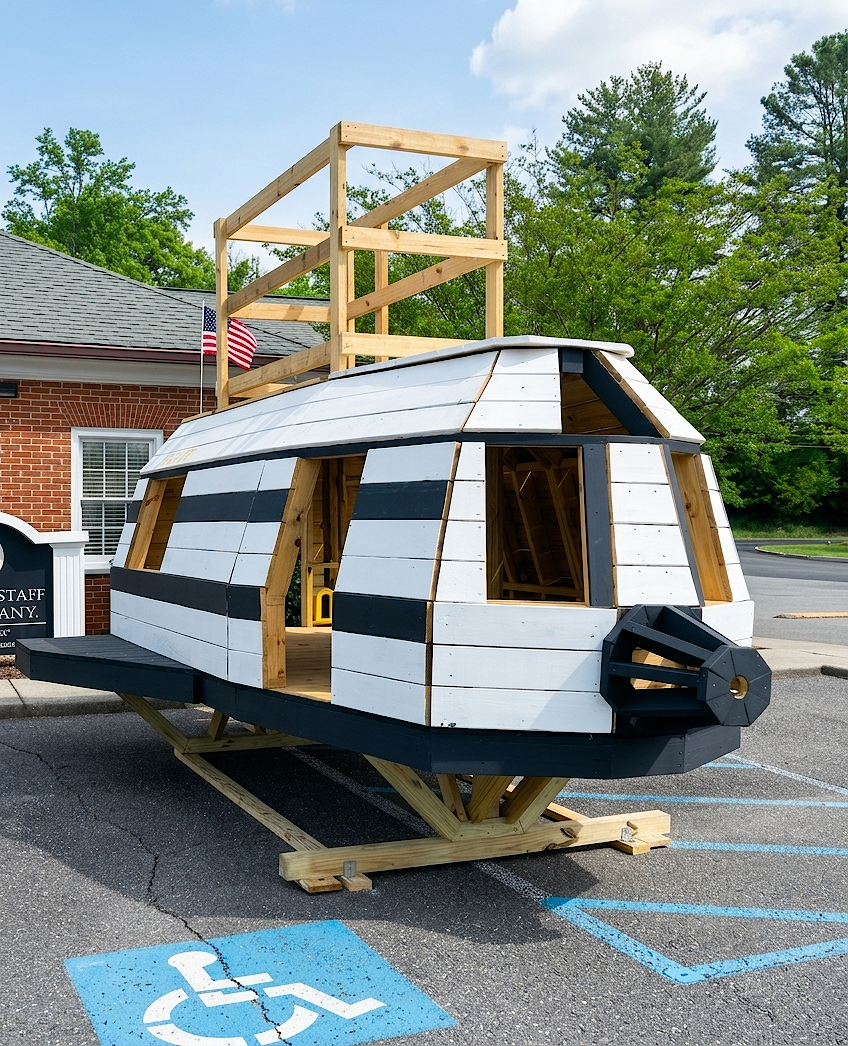

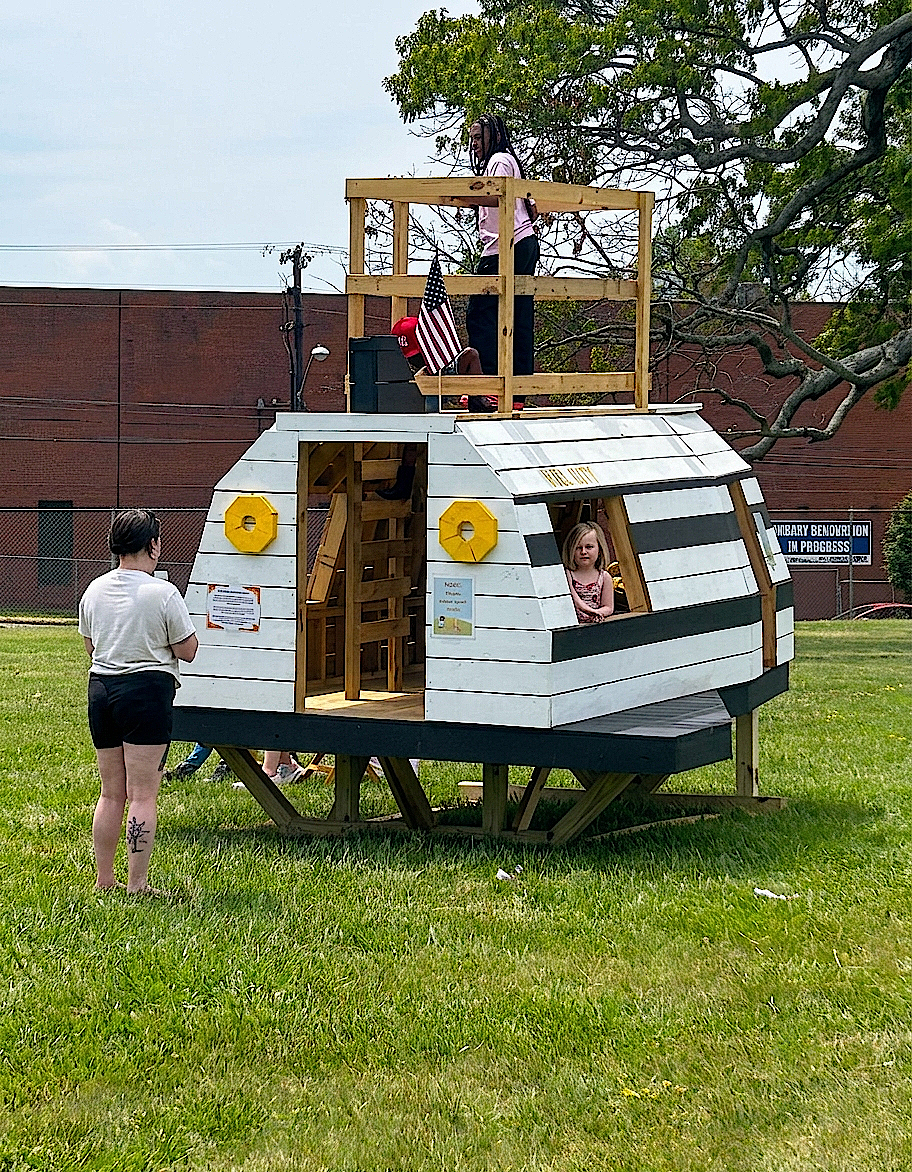

Now with the 16x20 Soaring Space Shuttle playset plan, you and your child can enjoy building your own space shuttle right in your backyard.  Along side our F-22 plan, there's no excuse to keep the imagination grounded.  Cool details like three rear rocket engines, rocket boosters, radar dishes and intricate design make for a very convincing space adventure.

Don't forget to explore our other space themed playset plans:

Features:

  • 200 ft² in usable play space
  • Designed for ages 3-10
  • Details such as a fin, rocket engines, boosters, window cutouts and comprehensive body
  • 34 page, step by step PDF plan

Plan Category:

🚂 Vehicle Playset Plans

Dimensions:

  • 16' Wide
  • 23' Deep
  • 10' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x4 & 2x6

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 49 ) 5/4” x 6” x 8'
( 20 ) 5/4” x 6” x 10'
( 2 ) 5/4” x 6” x 12'
( 36 ) 5/4” x 6” x 16'

2x4:
( 58 ) 2” x 4” x 8'
( 19 ) 2” x 4” x 10'
( 7 ) 2” x 4” x 12'
( 8 ) 2” x 4” x 16'

2x6:
( 7 ) 2” x 6” x 8'
( 5 ) 2” x 6” x 10'
( 5 ) 2” x 6” x 12'
( 6 ) 2” x 6” x 16'

 4x4:
( 7 ) 4” x 4” x 8'
( 1 ) 4” x 4” x 10'
( 2 ) 4” x 4” x 12'
( 2 ) 4” x 4” x 16'

Not sure you can build this plan?
Hire a qualified professional.
