Rippin' Rocketship Playset Plan

$ 50.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans

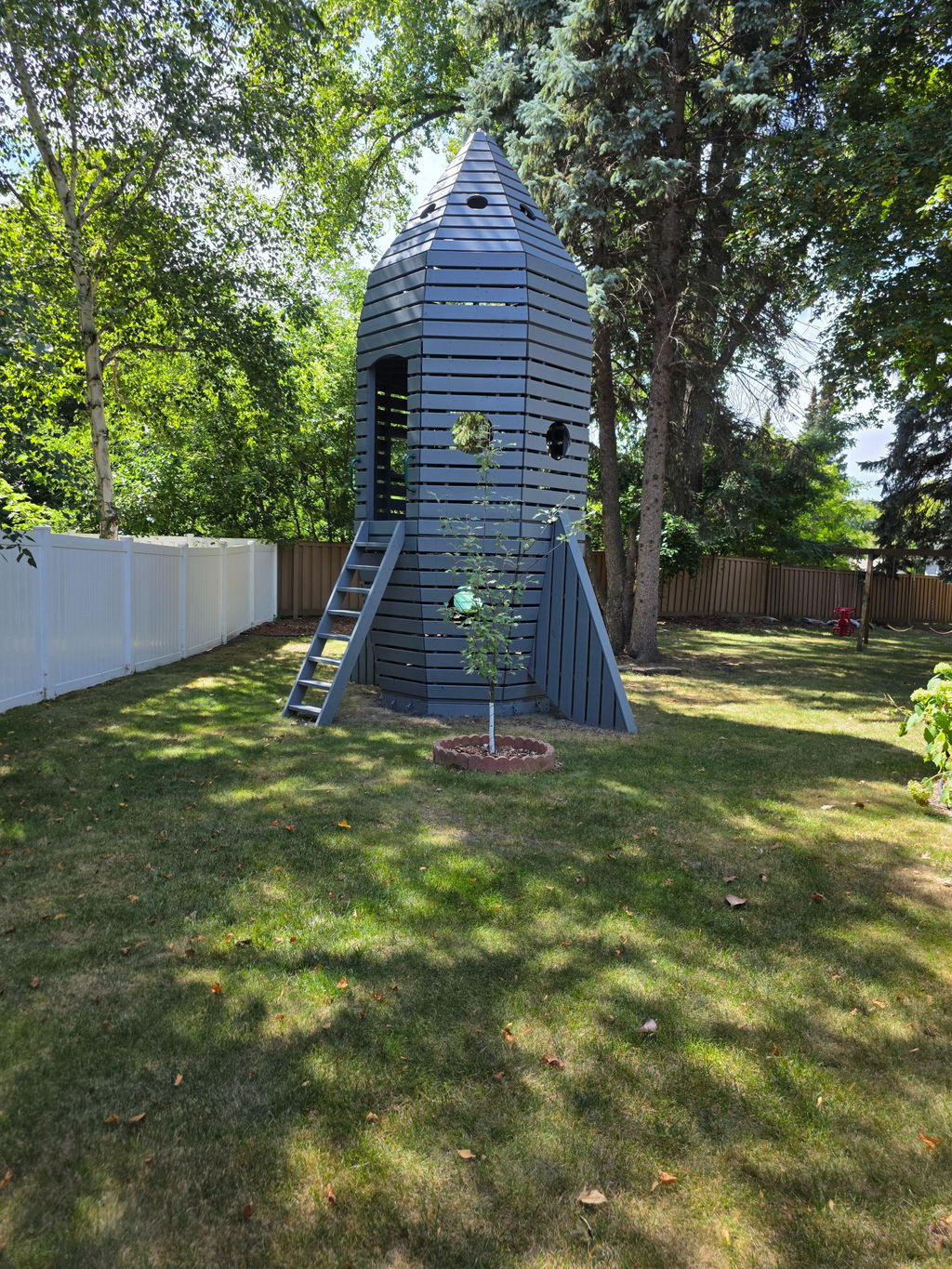

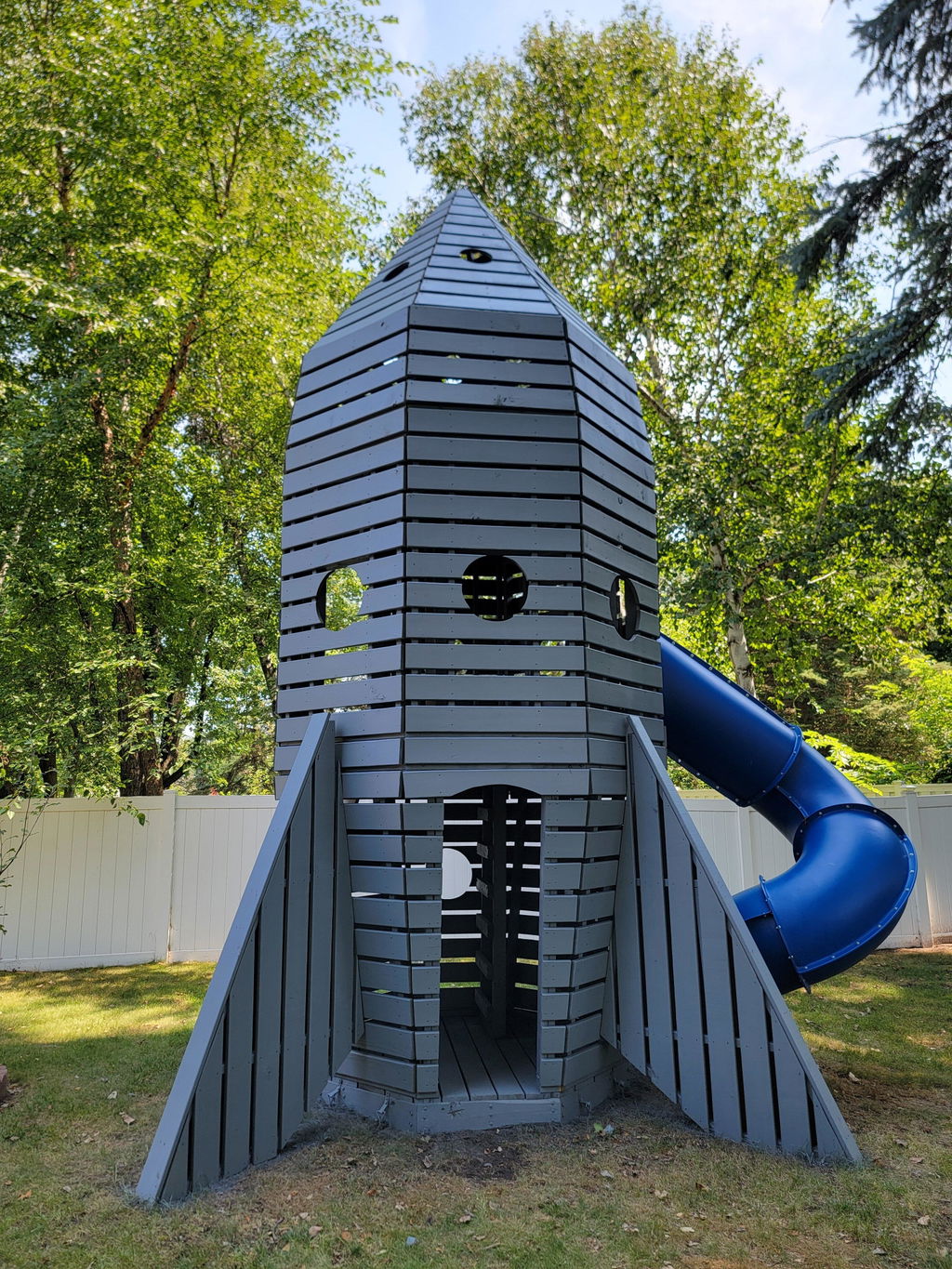

Mom, I made some alternate dinner plans with my new best friend, Marvin!  The 8x8 "Rippin' Rocket Ship" playhouse plan is the sister space craft to the Soaring Space Shuttle playset and the perfect wooden play structure for the kids who love adventure in the extra terrestrial sort of way. With three individual levels, connected by ladders and a height of almost 20 feet, kids will have no problem pretending that they are astronauts on their way to the moon, mars or dimension "X", you know, the one they can't tell us about.  Houston, we have lift off!

Don't forget to check out other interstellar forms of transportation too!   Rocket fuel sold separately.

Features:

  • 132 ft² in usable interior play space
  • Three Levels w/ two trap doors
  • 6' wall height
  • Instructions to add on a 12' long swing-set
  • Spot to add a 7' high slide & ship ladder
  • Designed for ages 3-10
  • 52 page, step by step PDF plan

Dimensions:

  • 10' 9" Wide
  • 12' 7" Deep
  • 20' 4" Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x4 - 16" O.C.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(40)  5/4” x 6” x 8'
(66)  5/4” x 6” x 10'
(14)  5/4” x 6” x 12'

Framing:

(43)  2” x 4” x 8'
(13)  2” x 4” x 10'
(35)  2” x 4” x 12'

(18) 2” x 6” x 8'
(4) 2” x 6” x 10'
(2) 2” x 6” x 12'

(1) 2” x 8” x 12'

(3) 4” x 6” x 8'
(1) 4” x 6” x 12'

Hardware List:

  • (20 lbs) GRK 3” R4 Screws
  • (20 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
Not sure you can build this plan?
Hire a qualified professional.
