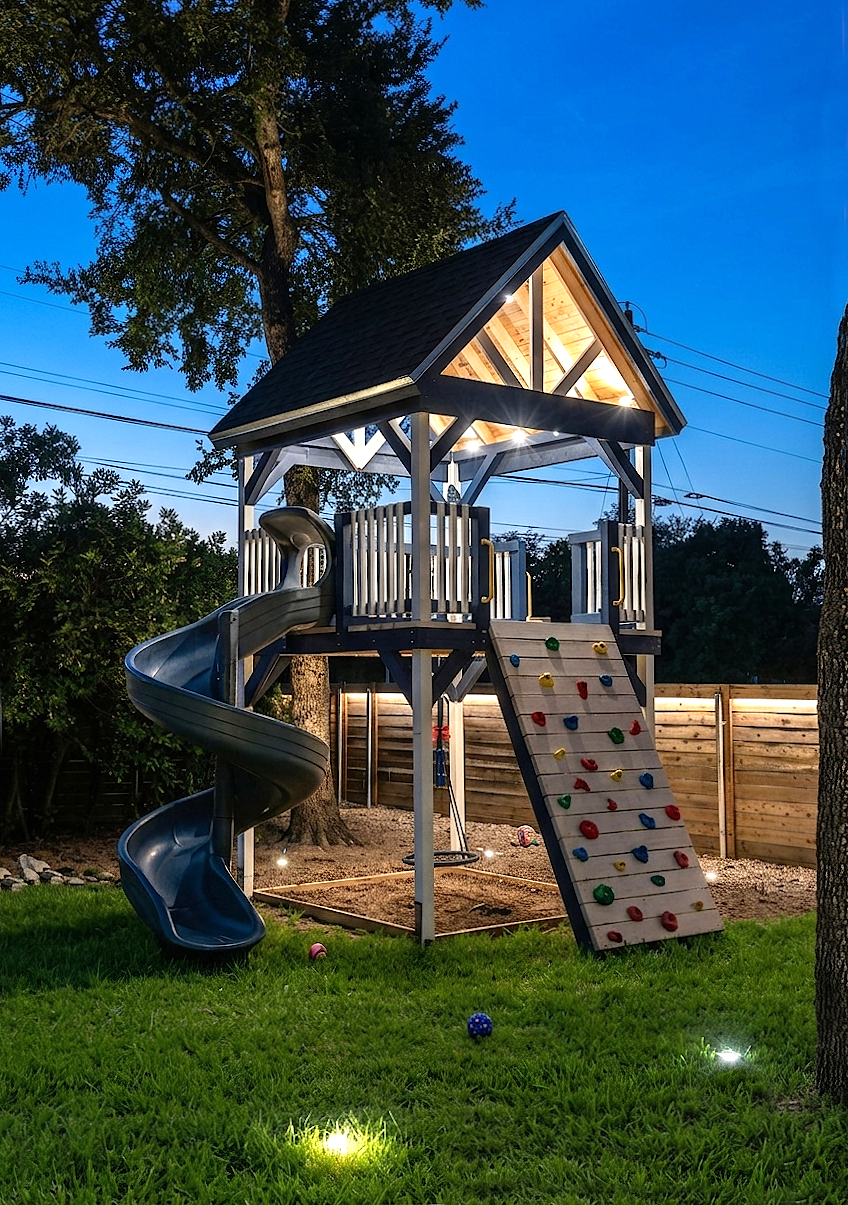

Red Summit Swing Set Plan・2-Sizes

Swing into backyard fun with the Red Summit Swing Set Plan, available in two compact yet fun-loving versions. Choose the 6×6-foot layout for a cozy backyard fit or go for the slightly larger 8×8-foot size to accommodate extra play space. Both models feature a raised platform that’s ideal for slides, alongside a sturdy gable roof to keep out sun and rain. It’s a perfect starter swing set that feels made just for family weekend building projects.

What makes the Red Summit so special is its simple, budget-friendly design that still supports all the playground extras. Both sizes include a ship ladder and built-in rock wall, plus a 12-foot swing arm ready for up to three swings. There are attachment points for cargo nets, rope climbs, or even a sandbox underneath the platform. If you’re looking for an easy and affordable way to bring swings, slides, and climbing fun into your backyard, this plan delivers with ease and charm.

Features:

• 36 ft² (6x6) or 64 ft² (8x8) of usable play space

• Sand box can be used at the bottom of the structure


• Several attachment points for slides, swings, cargo nets, rock walls and other accessories

• Open gable roof design allows more cooling airflow while keeping out the elements

• Built in rock wall, ladder and stairs

• 12' long swing-set attachment in rear

• Elevated design allows play area underneath

• Designed for children aged 2-9

• 40 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

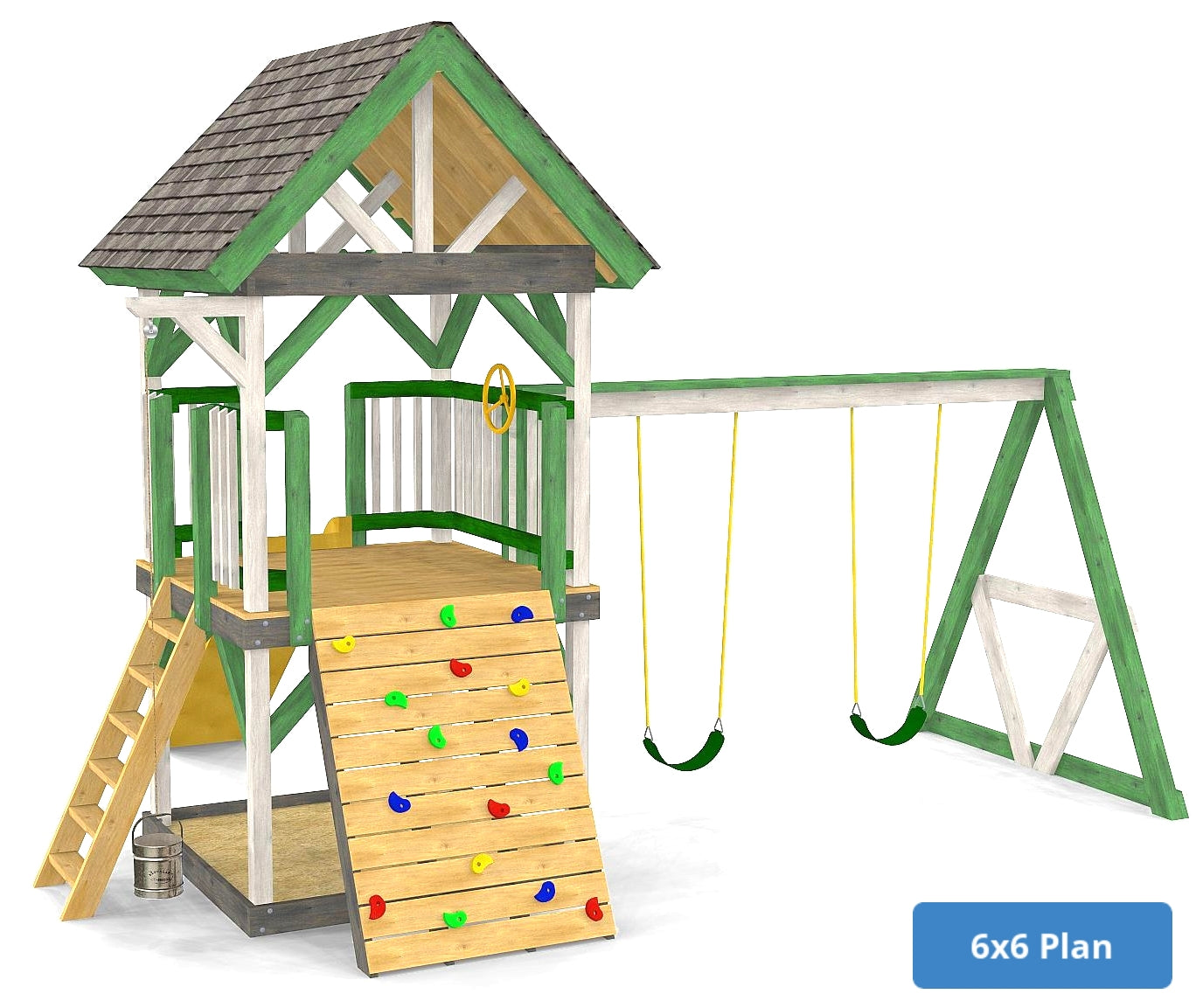

6x6 Dimensions:

• 6' Wide (No Ladder & Swings)

• 22' Wide (Ladder & Swings
• 6' Deep (No Ladder & Swings)

• 9.5' Deep (Ladder & Swings)
• 13.5' Tall

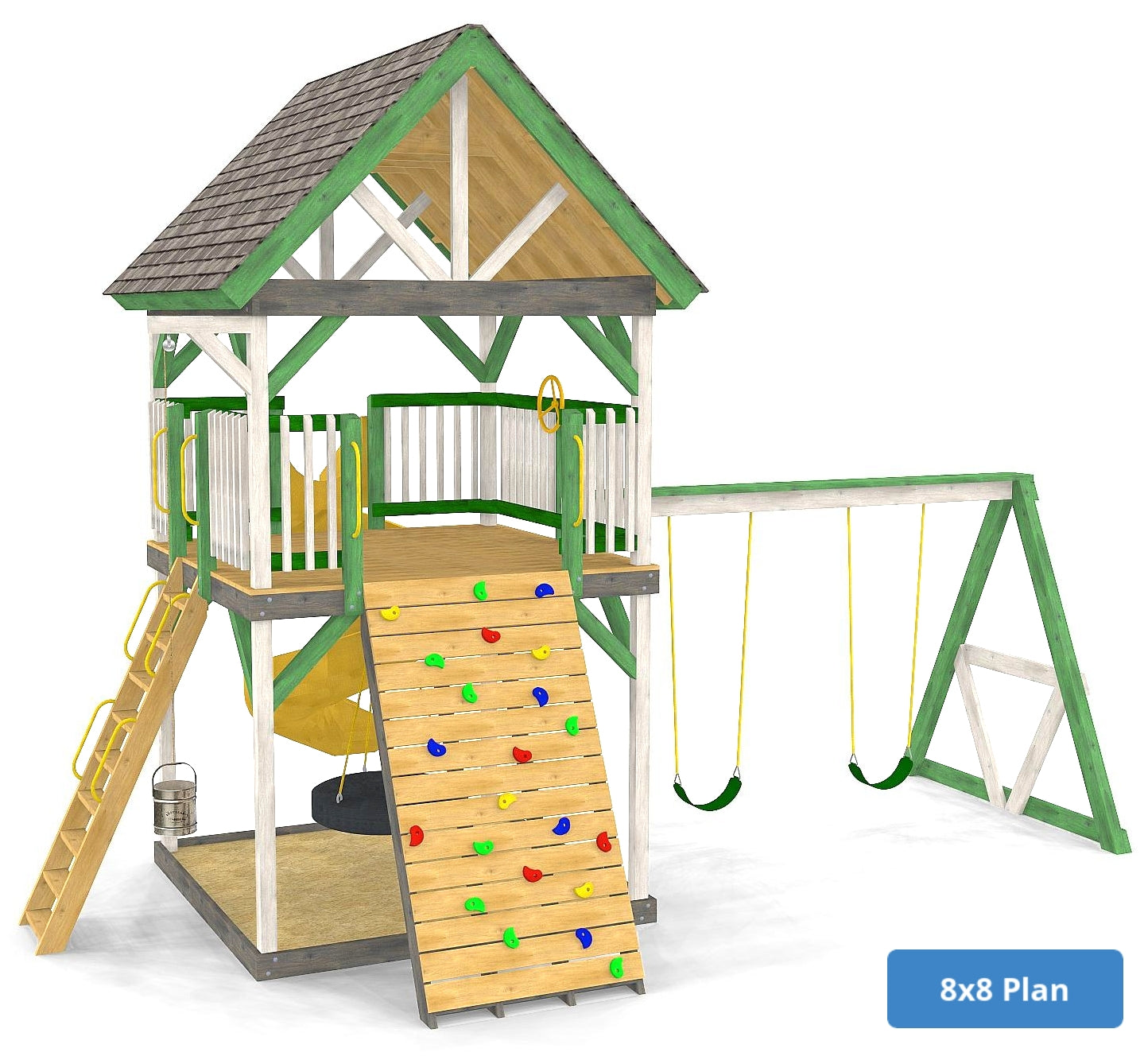

8x8 Dimensions:

• 8' Wide (No Ladder & Swings)

• 24' Wide (Ladder & Swings
• 8' Deep (No Ladder & Swings)

• 11.5' Deep (Ladder & Swings)
• 16.5' Tall

Framing Details:

• Joists: 2x6 - 16" O.C.
• Rafters: 2x6 - 16" O.C.
• Railings: 2x4

Roofing Details:

• 45° gable roof pitch
• 70 ft² (6x6) and 115 ft² (8x8) of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List | 6x6:

Make sure to take advantage of any volume discount from your local lumber yard!

Decking:
( 5 ) 5/4” x 6” x 8'
( 7 ) 5/4” x 6” x 12'

2x2:
( 22 ) 2” x 2” x 3'

2x4:
( 3 ) 2” x 4” x 8'
( 2 ) 2” x 4” x 10'
( 4 ) 2” x 4” x 12'

2x6:
( 4 ) 2” x 6” x 8'
( 7 ) 2” x 6” x 10'
( 10 ) 2” x 6” x 12'

2x8:
( 1 ) 2” x 8” x 8'
( 3 ) 2” x 8” x 12'

4x4:
( 4 ) 4” x 4” x 8'
( 8 ) 4” x 4” x 12'

4x6:
( 2 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 3 ) ¾" Plywood Sheets

Lumber List | 8x8:

Decking:
( 23 ) 5/4” x 6” x 8'
( 1 ) 5/4” x 6” x 12'

2x2:
( 15 ) 2” x 2” x 8'

2x4:
( 10 ) 2” x 4” x 8'
( 2 ) 2” x 4” x 12'

2x6:
( 41 ) 2” x 6” x 8'
( 4 ) 2” x 6” x 10'

2x8:
( 4 ) 2” x 8” x 8'
( 1 ) 2” x 8” x 10'
( 3 ) 2” x 8” x 12'

4x4:
( 4 ) 4” x 4” x 8'
( 4 ) 4” x 4” x 10'
( 2 ) 4” x 4” x 12'
( 4 ) 4” x 4” x 16'

4x6:
( 2 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 4 ) ¾" Plywood Sheets
