Woodland Crossing Swing-Set Plan ➌·Options

Revamp your backyard into an epic playground fiesta with three distinct style options tailored to fit your family's grand outdoor adventures. The Woodland Cross Swingset Plan is everything kids love about a traditional playground, with 7' elevated decks, charming gable roofs, plenty of places to crawl and climb, plus a swingset extension ready for action.  Kid's won't be able to get enough!

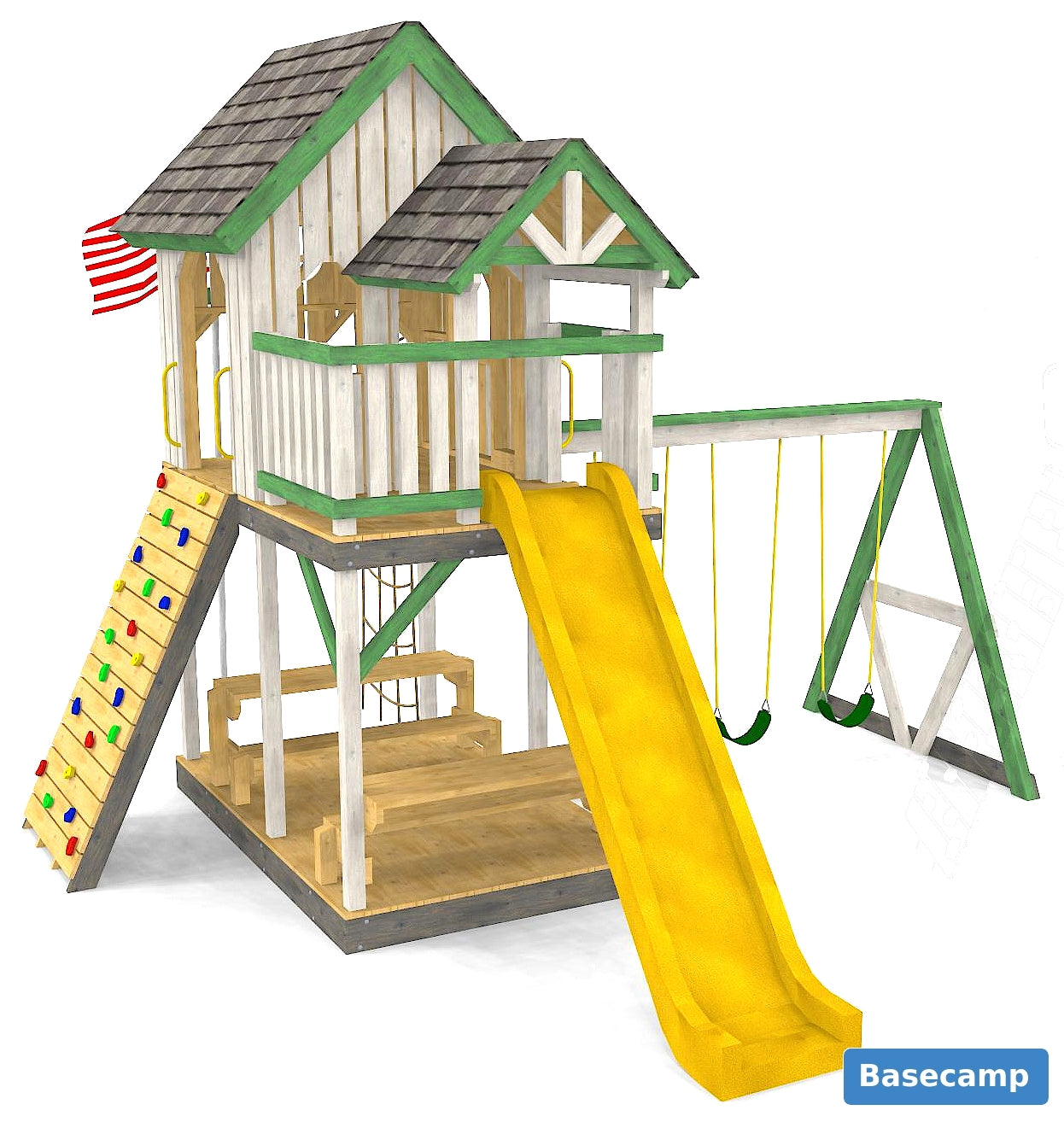

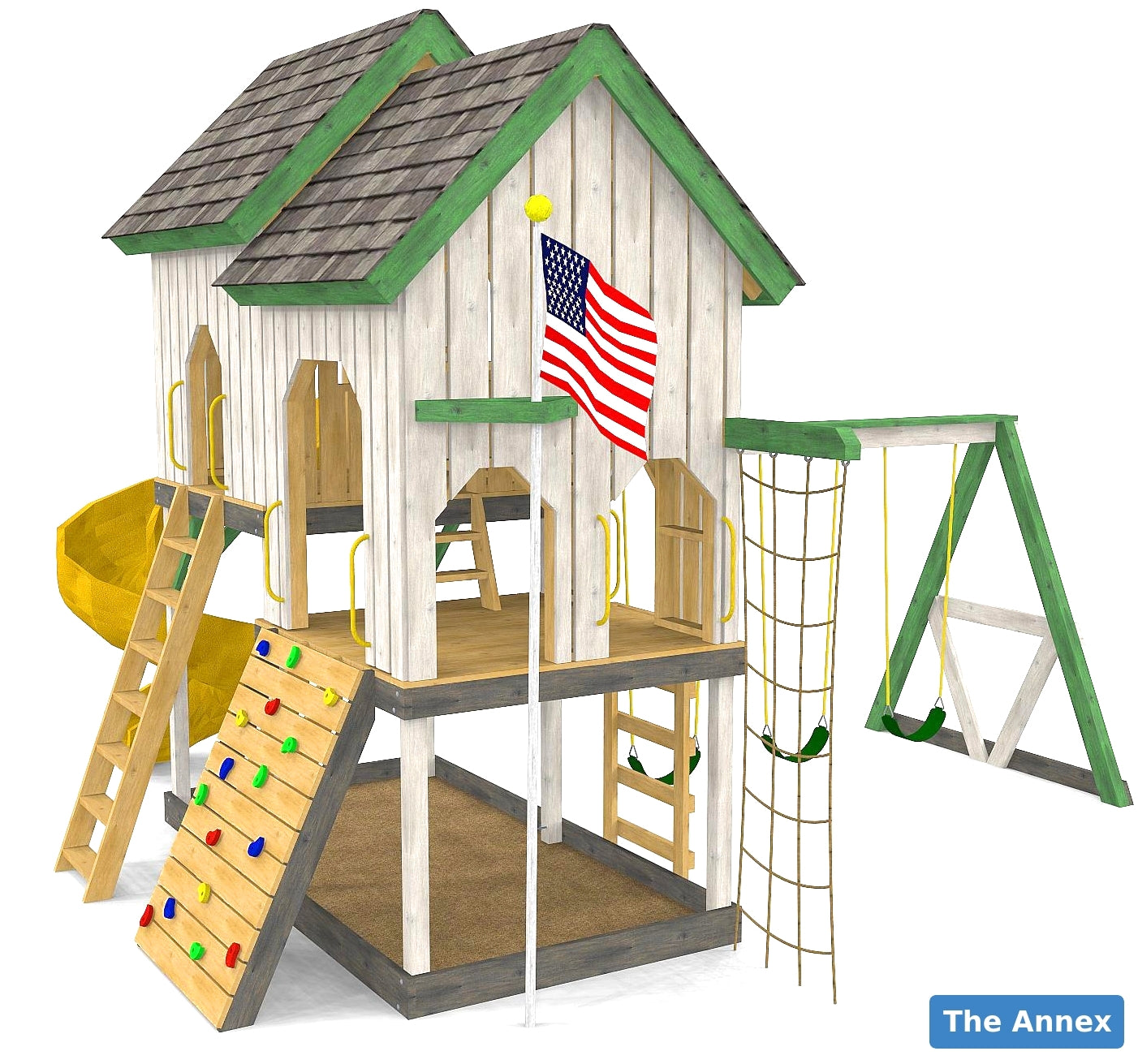

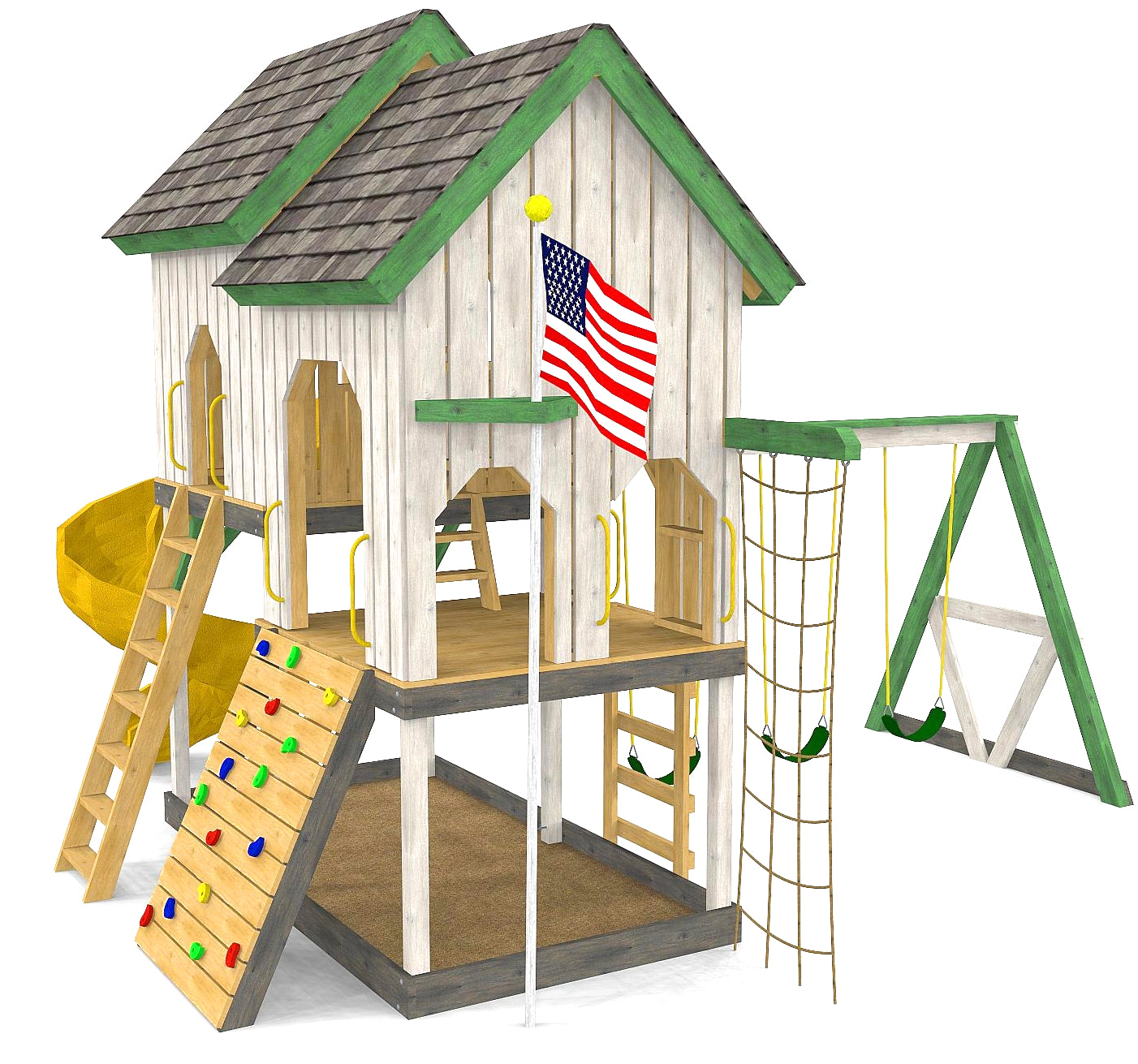

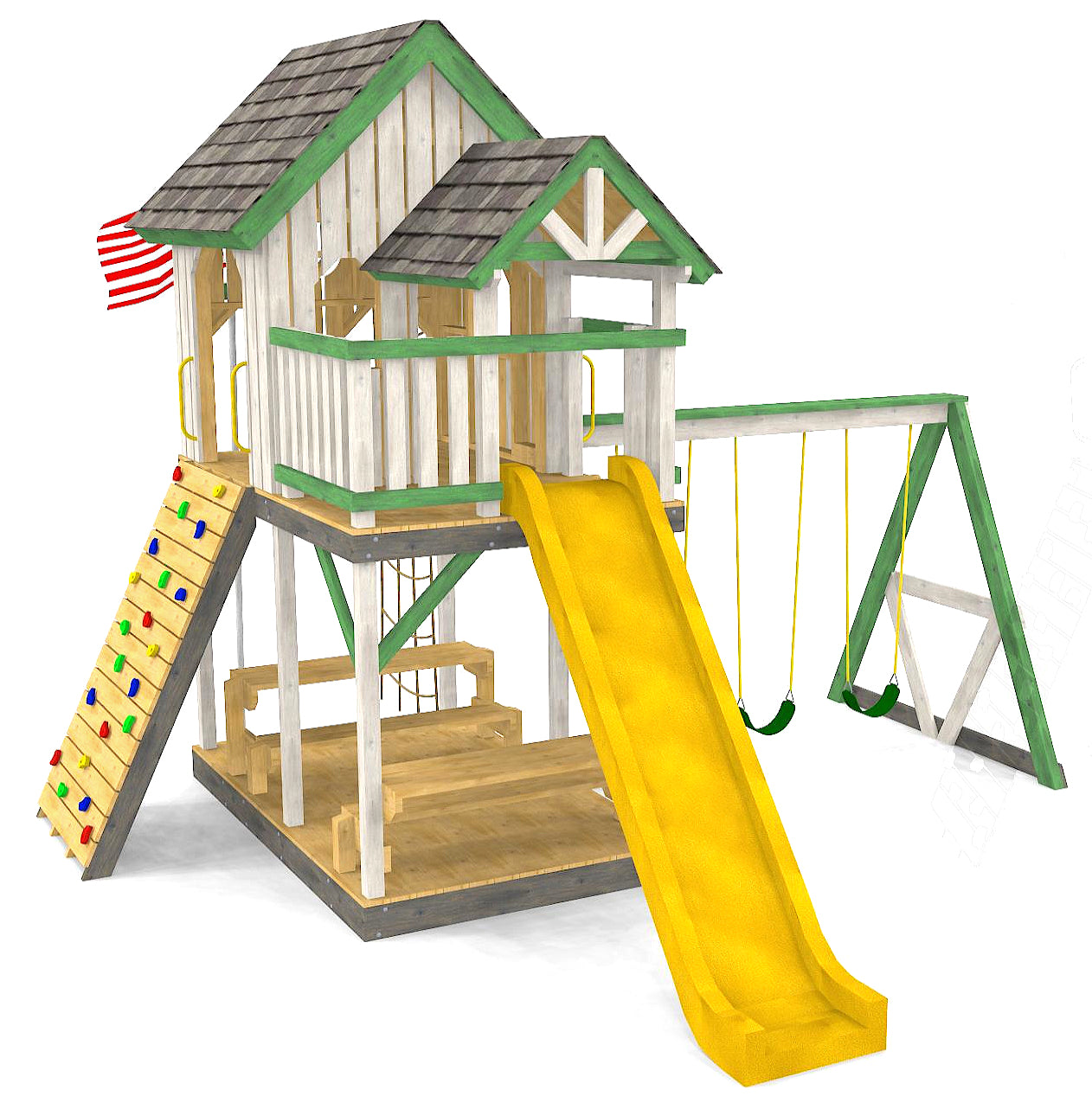

Choose the Basecamp for its cozy front porch, petite awning, built-in benches, and five different ways to reach the upper level. The Annex features a handsome dual-gable design, split-level decks, six access points, and an open area underneath that’s perfect for a sandbox. For families who believe more adventure is always better, the Pinecone Pass brings both structures together with a connecting bridge and a gang plank for an extra dose of backyard excitement. Three great designs, each with its own personality, all ready to become the neighborhood's favorite hangout!

Built with DIY strength and versatility in mind, these wooden swingsets offer a substantial upgrade from typical store bought playsets. Each design features an attached swingset, standard elevated deck heights ready for residential playground accessories, and plenty of room for slides, climbing walls, ladders, and other playful additions. With generous layouts, they’re a fantastic fit for families with big backyards, schools, churches, and anywhere kids need room to let loose. Customize your creation, round up the little adventurers, and get ready for a backyard attraction that keeps the fun going season after season!

Features:

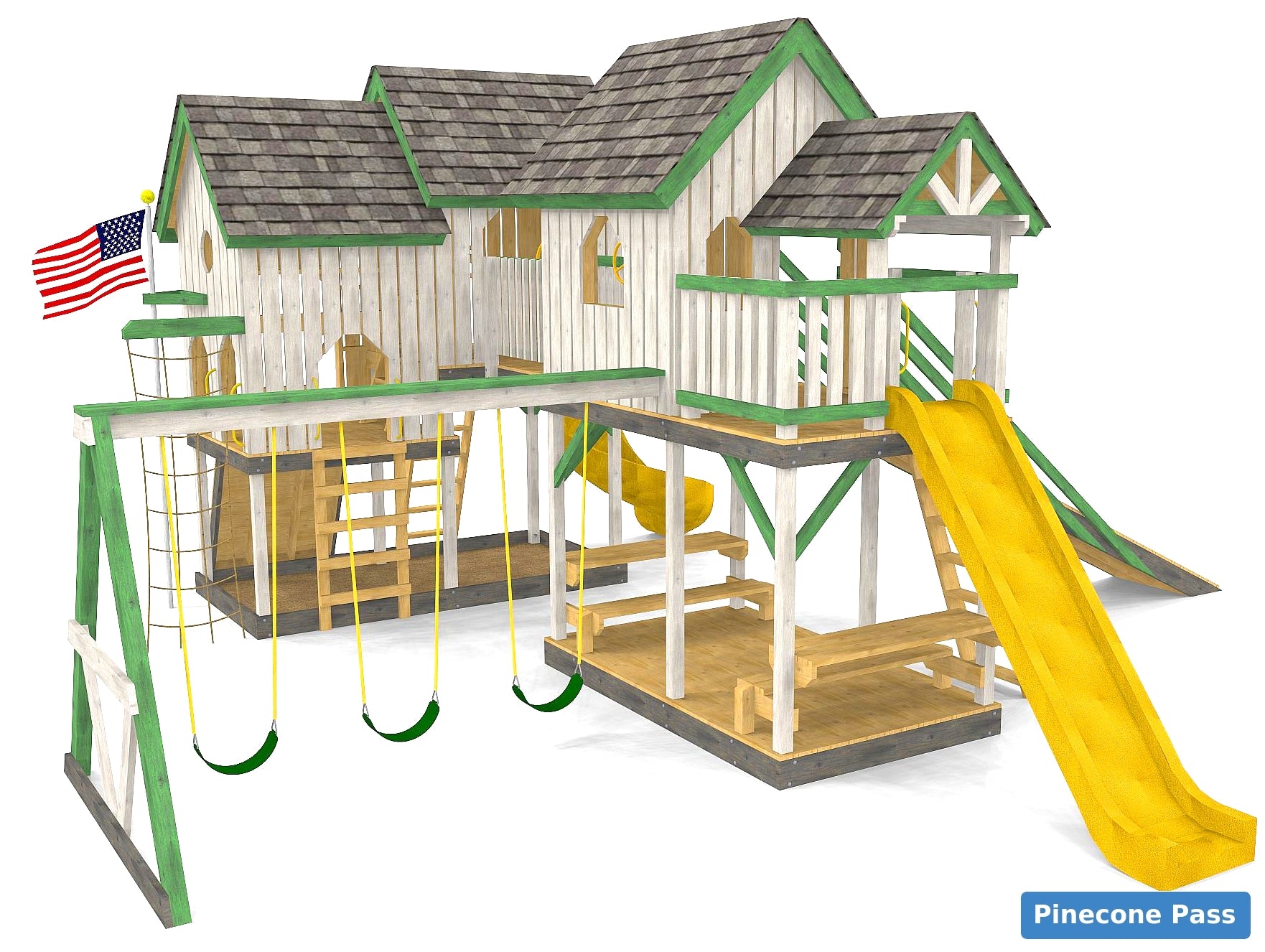

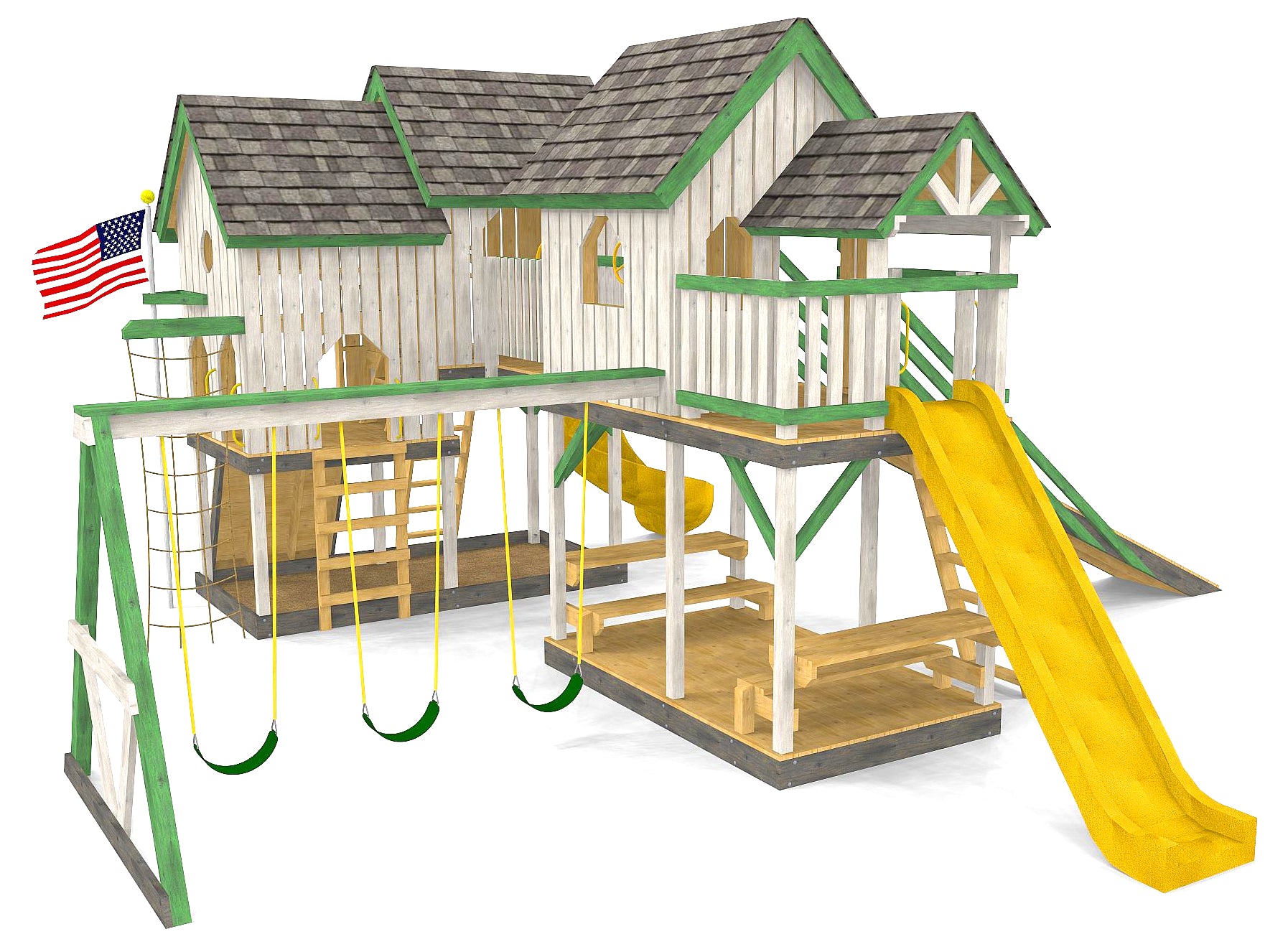

• Three classic swingset design options, with the Pinecone Pass being a combined version of the Basecamp and Annex connected by a 6' bridge.
• Two level swingset with a total play space of:
  - 120ft² (Basecamp)
  - 72ft² (Annex)
  - 210ft² (Pinecone Pass)
• Includes instructions to build a:
  - 12' swingset arm attachment @ 7½' clearance
  - Cargo climb extension
  - Ship ladder
  - Rock wall
  - Lower benches (Basecamp & Pinecone Pass)
  - Gang plank (Pinecone Pass)
  - Bridge crossing (Pinecone Pass)
• 1" vertically spaced cladding allows ample natural light while also providing a enclosed environment.
• Shallow enclosed base allows for a sandbox option.

• Split level design allows for both 7' and 5' residential playground accessories (Annex and Pinecone Pass)
• 7' 5" Max interior head room
• Designed for children aged 3-10
• 39 page page (Basecamp), step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

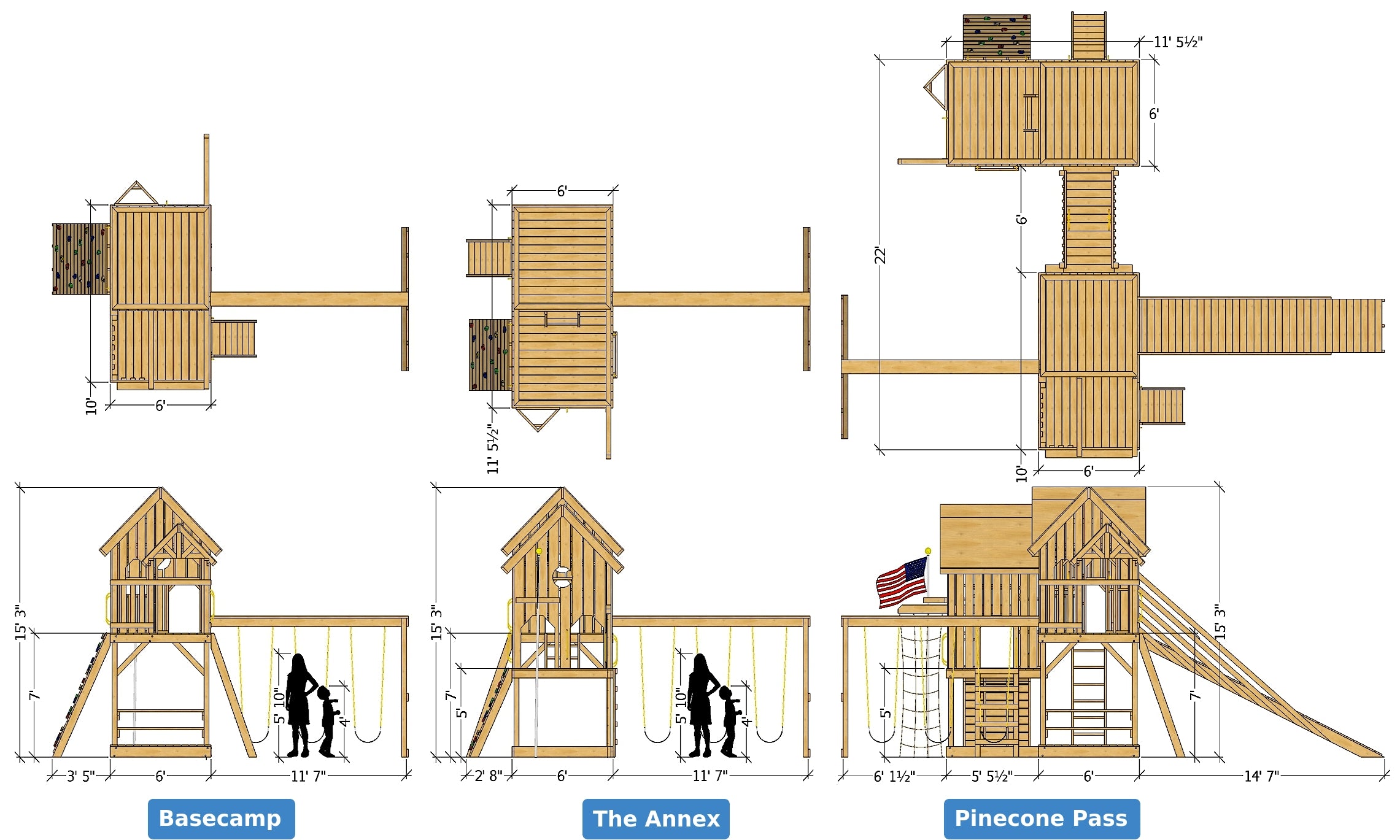

Dimensions (Basecamp):

• 6' Wide (21' with rockwall & swing-set attachment)

• 10' Deep

• 15' Tall

Dimensions (Annex):

• 6' Wide (21' with rockwall & swing-set attachment)

• 11½' Deep

• 15' Tall


Dimensions (Pinecone Pass):

• 12' Wide (32' with gang plank & swing-set attachment)

• 25½' Deep

• 15' Tall


Framing Details:

• Joists: 2x6 - 16" O.C.
• Walls: 2x4 - 16" O.C.
• Rafters: 2x6 - 16" O.C.

Roofing Details:

• 45° gable roof pitch
• 95ft² (Basecamp), 127ft² (Annex) or 222ft² (Pinecone Pass) of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List | Basecamp:

Make sure to take advantage of any volume discount from your local lumber yard!

Decking:
( 18 ) 5/4" x 6 x 8'
( 35 ) 5/4" x 6 x 10'
( 3 ) 5/4" x 6 x 12'

2x4:
( 20 ) 2” x 4” x 8'
( 8 ) 2” x 4” x 10'
( 8 ) 2” x 4” x 12'

2x6:
( 13 ) 2” x 6” x 8'
( 8 ) 2” x 6” x 10'
( 14 ) 2” x 6” x 12'

2x8:
( 1 ) 2” x 8” x 8'
( 7 ) 2” x 8” x 12'
( 1 ) 2” x 8” x 12'

2x10:
( 1 ) 2” x 10” x 12'

4x4:
( 3 ) 4" x 4" x 8'
( 1 ) 4" x 4" x 10'
( 6 ) 4" x 4" x 12'

4x6:
( 1 ) 4" x 6" x 8'
( 2 ) 4" x 6" x 10'
( 1 ) 4" x 6" x 12'

Plywood:
( 5 ) 4' x 8' x ½"
