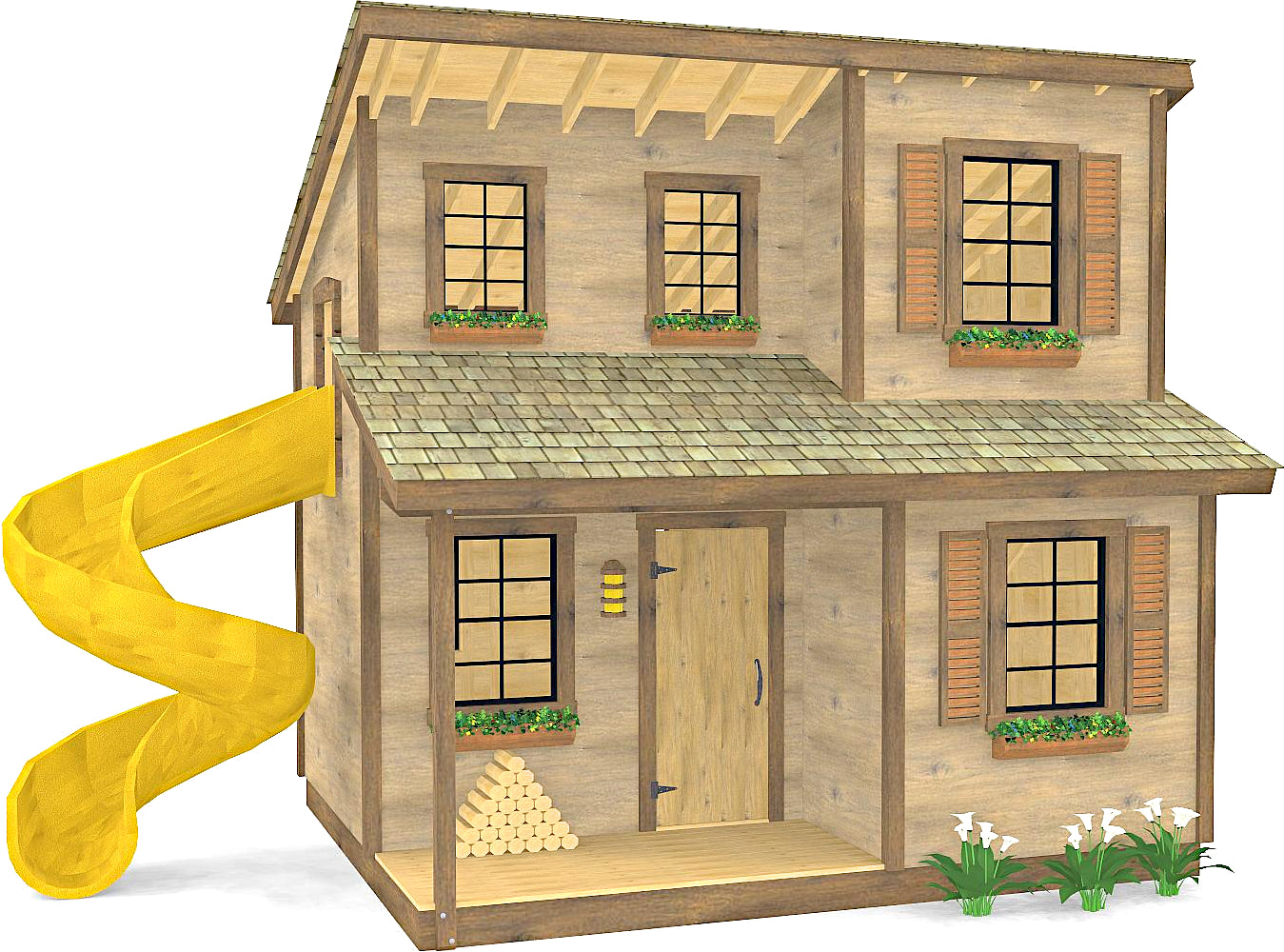

Upstate Camp Playhouse Plan

$ 50.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans

Vacation.  It's one of the most wonderful words in the English language.  For some it means heading down to Disney World.  But for you, it means taking an extra long weekend and spending time in the upstate cabin.

Similar to the Country Cottage and Secret Clubhouse, this playhouse design strives to take that central Maine camp feel and channel it into a little vacation home for the kids.  You may not live in New England and you may not be within 50 miles of any kind of lake, but your children can still have that upstate camp.  Now breath in that fresh air.  Feels good to be away from it all, doesn't it?

Features:

  • 280 ft² in usable interior & porch play space
  • Designed for ages 3-12
  • 6' wall heights
  • 2 Levels
  • Front Porch w/ overhanging roof
  • 14' wide, 12' deep, 14' tall
  • Lean-to roof
  • 73 page, step by step PDF plan

Dimensions:

  • 14' Wide
  • 12' Deep
  • 14' 7" Tall

Framing Details:

  • Joists: 2x8 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x8 - 16" O.C.

Glass Shed Windows:

  • ( 8 )  2' x 3'
  • ( 3 )  18" x 27"

Roofing Details:

  • 20° lean-to roof pitch
  • 250 ft² of total roof coverage (no silo).
  • Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(8) 5/4” x 6” x 8'
(1) 5/4” x 6” x 12'

2x Framing:

(44) 2” x 4” x 8'
(22) 2” x 4” x 10'
(57) 2” x 4” x 12'
(6) 2” x 4” x 16'

(4) 2” x 6” x 8'
(2) 2” x 6” x 10'
(20) 2” x 6” x 12'
(4) 2” x 6” x 16'

(11) 2” x 8” x 8'
(7) 2” x 8” x 10'
(12) 2” x 8” x 12'
(5) 2” x 8” x 16'

(2) 2” x 10” x 8'
(3) 2” x 10” x 10'

(3) 2” x 12” x 12'

(3) 2” x 2” x 8'

4x Framing:
(5) 4” x 4” x 8'

1x Framing:
(2) 1” x 4” x 8'
(3) 1” x 4” x 10'
(1) 1” x 4” x 8'
(2) 1” x 4” x 10'

Plywood:
(26) 4' x 8' x 1/2” Plywood Non-PT
(9) 4' x 8' x 3/4” Plywood Non-PT


Not sure you can build this plan?
Hire a qualified professional.
