Twin Peaks Playset Plan・2-Sizes

Do you have two children who love their own space and perhaps partake in building forts out of couch cushions and snow mounds?  Maybe you have kids who simple enjoy a game of the classic standoff.  It sounds like the Twin Peaks playset plan is just the ticket!

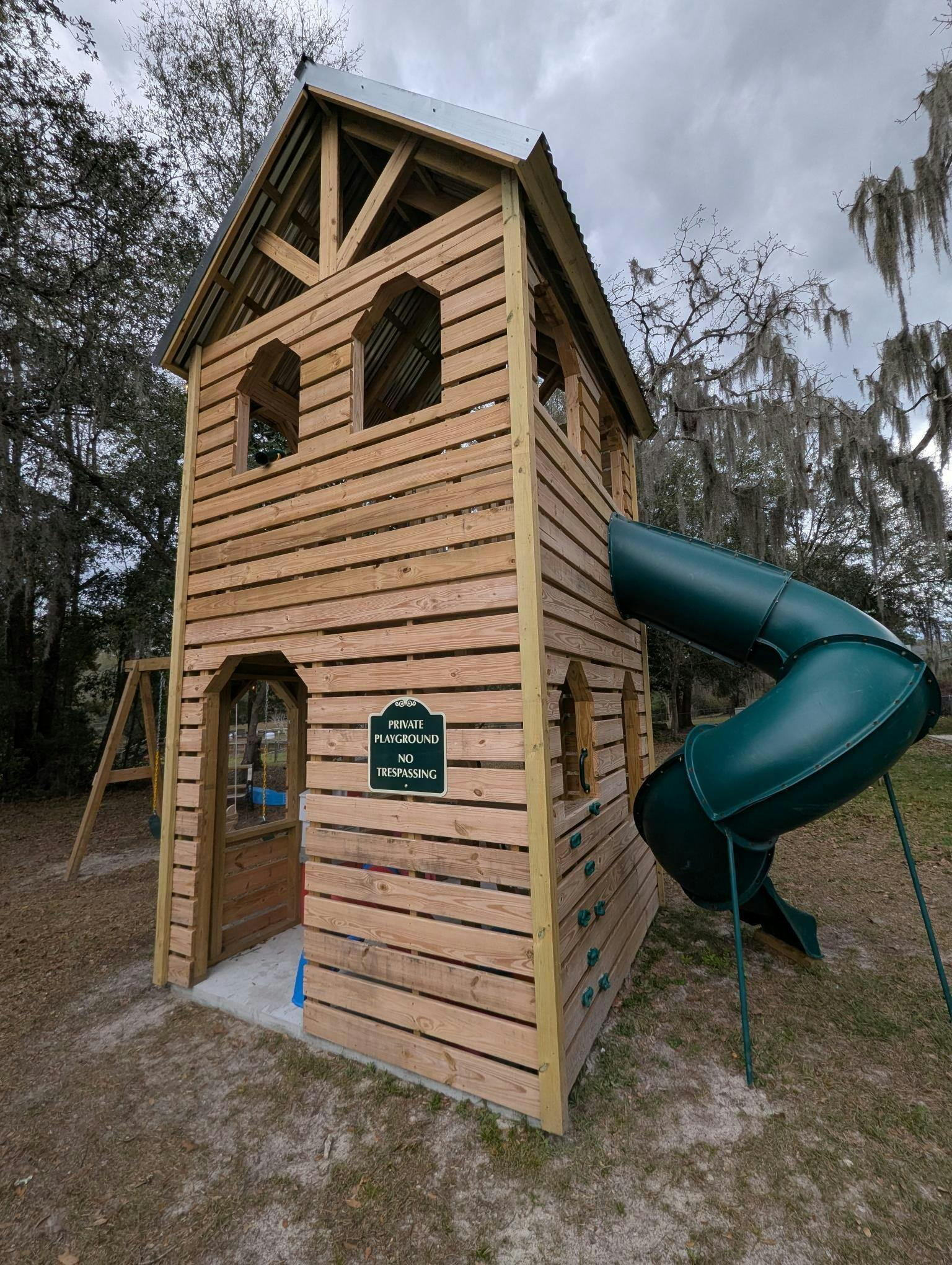

Composed of one or two identical towers connected by a 2nd level bridge, the standard or deluxe plans are designed to provide children their own space when they don't feel like sharing, but still provides a path to the other when the peace treaty is eventually signed.  Either way there is a lot of fun to be had.

A re-imagining of our 4 turret playset plan, this playground build has a total of 225 square feet max of play space provides amble room for any kind of activity, including swinging, rock wall climbing and taking the spiral slide down to the ground.  Kids also love trap doors, which is why there this plan includes two!  Overall basic in design but loads of fun, the Twin Peaks playset plan is easy to build and will provide copious amounts of fun backyard memories!

Features:

• One (Standard) or two (Deluxe) play towers with two levels each with a total of 96ft² (Standard) or 225ft² (Deluxe) in usable space
• 12' bridge connecting the two towers at the 2nd level provides a space for hanging swings (Deluxe)

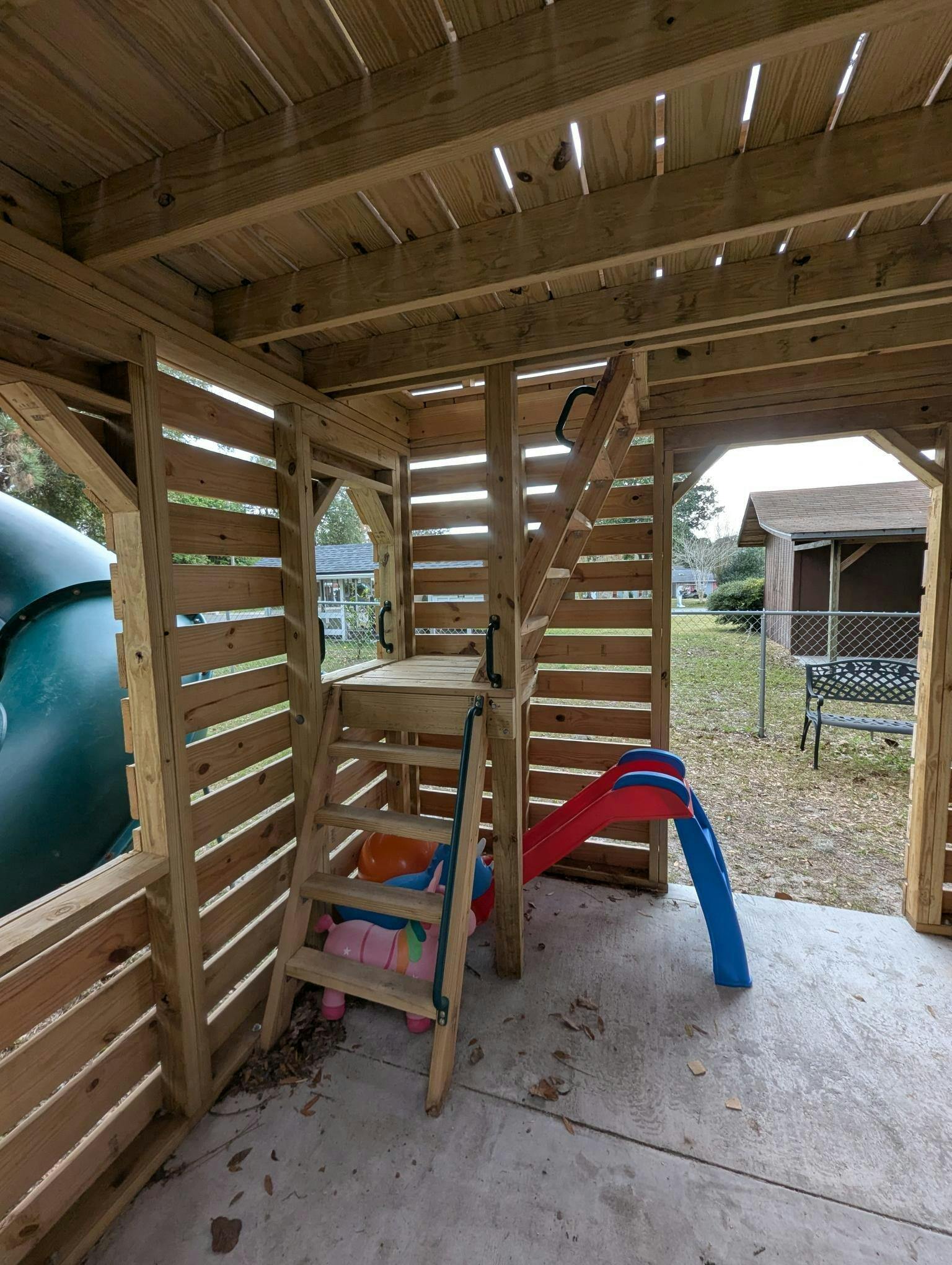

• Interior ladder access to 2nd level in each tower

• Includes instructions to build a rock wall and ship ladder
• Room to include a 7' deck height slide
• 10 total entrances/exits

• Open gable roof design allows more cooling airflow while keeping out the elements
• 6' 11" max 1st level interior head room, 8' max 2nd level interior head room
• Designed for children aged 3-10
• 26 page (Standard) & 33 page (Deluxe), step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

Standard Plan Dimensions:

• 6' Wide (No Rock Wall & Slide)
• 8' Deep (No Rock Wall & Slide)
• 16' 4" Tall

Deluxe Plan Dimensions:

• 12.5' Wide (No Rock Wall & Slide)
• 8' Deep (No Rock Wall & Slide)
• 16' 4" Tall


Framing Details:

• Joists: 2x6 - 16" O.C.
• Rafters: 2x6 - 16" O.C.
• Railings: 2x4

Roofing Details:

• 45° gable roof pitch
• 100 ft² (standard) and 200 ft² (deluxe) of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List (Standard Plan):

Decking:
( 74 ) 5/4” x 6” x 8'
( 4 ) 5/4” x 6” x 10'
( 12 ) 5/4” x 6” x 12'

2x4:
( 20 ) 2” x 4” x 8'
( 21 ) 2” x 4” x 10'
( 33 ) 2” x 4” x 12'
( 8 ) 2” x 4” x 16'

2x6:
( 10 ) 2” x 6” x 8'
( 5 ) 2” x 6” x 10'
( 15 ) 2” x 6” x 12'

2x8:
( 1 ) 2” x 8” x 10'

Plywood:
( 4 ) ¾" Plywood Sheets

Lumber List (Deluxe Plan):

Decking:
( 137 ) 5/4” x 6” x 8'
( 8 ) 5/4” x 6” x 10'
( 36 ) 5/4” x 6” x 12'

2x2:
( 16 ) 2” x 2” x 8'

2x4:
( 36 ) 2” x 4” x 8'
( 44 ) 2” x 4” x 10'
( 70 ) 2” x 4” x 12'
( 16 ) 2” x 4” x 16'

2x6:
( 16 ) 2” x 6” x 8'
( 7 ) 2” x 6” x 10'
( 33 ) 2” x 6” x 12'

2x8:
( 2 ) 2” x 8” x 10'

4x4:
( 3 ) 4” x 4” x 8'

4x6:
( 3 ) 4” x 6” x 12'

Plywood:
( 8 ) ¾" Plywood Sheets
