Secret Clubhouse Plan

$ 45.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans

Have a Question?  See our FAQ page

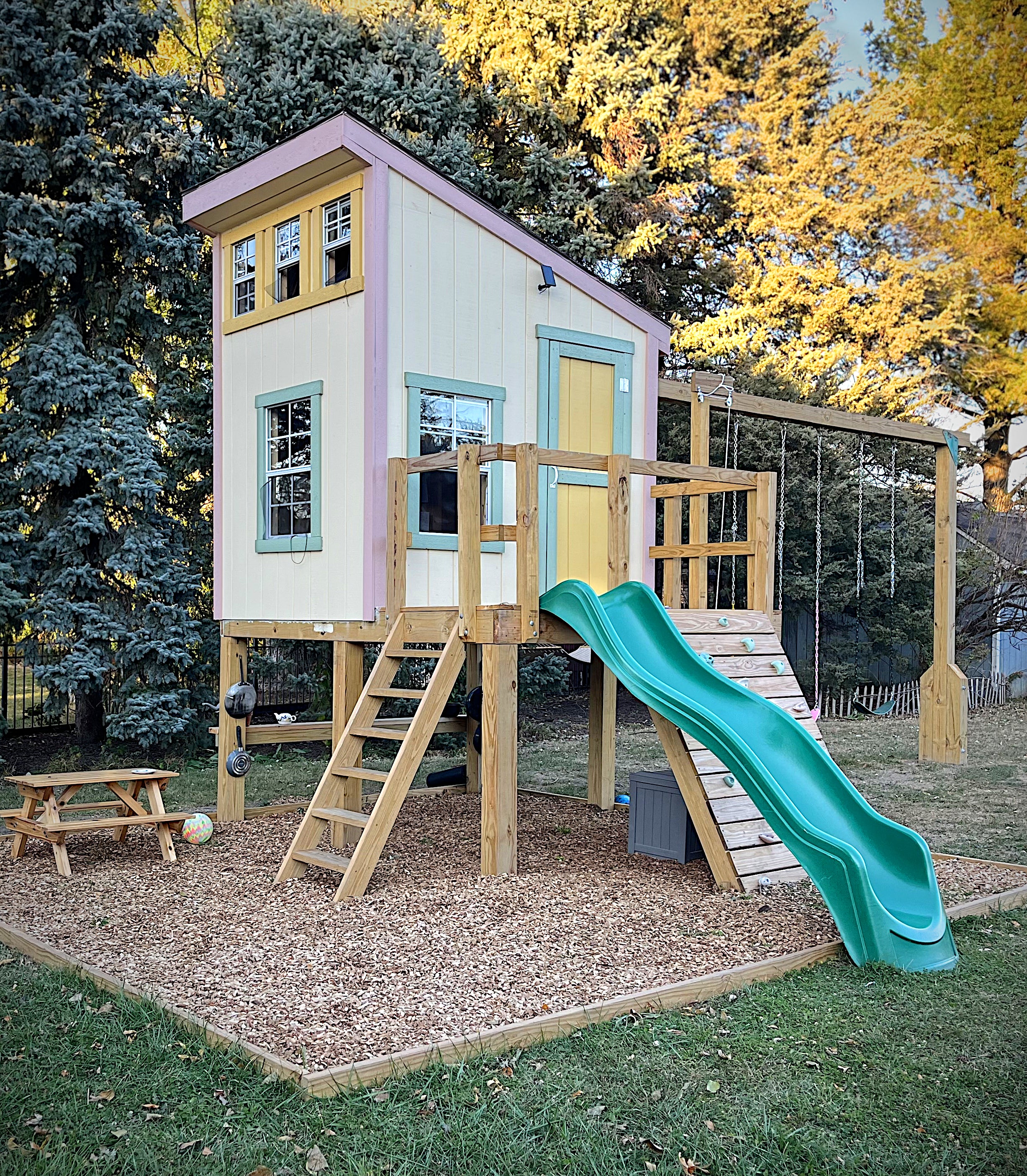

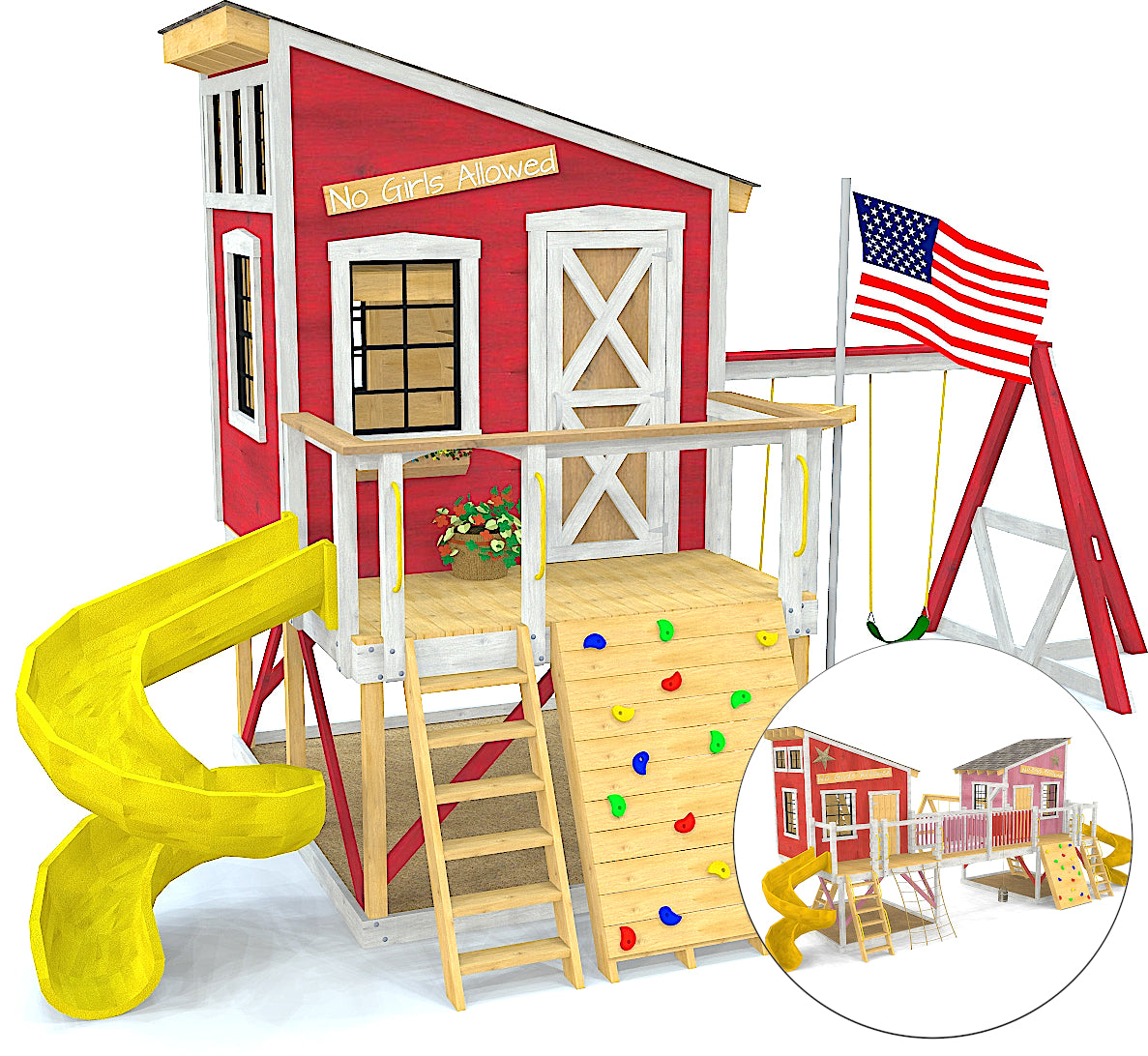

Sometimes kids just need a secluded spot they can call their own.  Away from worries, school work, chores and parents.  If that's what your kids are after, and you're willing to give them the freedom to have it, look no further than the 10x10, elevated Secret Clubhouse!  An elementary version of the Deluxe Clubhouse, this plan has that simplistic, child innocence with a shed roof, fire pole, rock wall and sand box below.  Lots of window openings too to see the outside world.

If you want to give your kids something special, and take a trip back in time yourself, the Secret Clubhouse has your name written all over it!  If you're looking for a larger shed roof playhouse with some New England flavoring, check out the Lakeside Camp playhouse plan!

Features:

  • 100 ft² in usable play space, with another 80 ft² underneath
  • 3rd level, 22 ft² loft space
  • Room for slide and fire pole
  • 7 window openings
  • Ship ladder & rock wall included in plan
  • Shed Roof
  • Trap door from 1st to 2nd level
  • 3 total stories
  • 1st level can be used for a sand box
  • 61 page, step by step PDF plan
  • Designed for children aged 3-10

Dimensions:

  • 10' Wide
  • 10' Deep
  • 14' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 17° gable roof pitch
  • 60 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(21)  5/4” x 6” x 8'
(2)  5/4” x 6” x 10'

Framing:

(19)  2” x 4” x 8'
(7)  2” x 4” x 10'
(15)  2” x 4” x 12'

(8) 2” x 6” x 8'
(18) 2” x 6” x 10'
(8) 2” x 6” x 12'

(3) 4” x 4” x 8'
(2) 4” x 4” x 10'

Plywood:
(11) 4' x 8' x 1/2” Plywood Non-PT
(1) 4' x 8' x 5/8” Plywood PT

Hardware List:

  • (5 lbs) GRK 3” R4 Screws
  • (10 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
