Two level play-set plan with a clubhouse, swing-set, rock wall, slide, cargo net and fire pole.
Playground Playhouse Plan (2‑Sizes Sold Separately)
Playground Playhouse Plan (2‑Sizes Sold Separately)

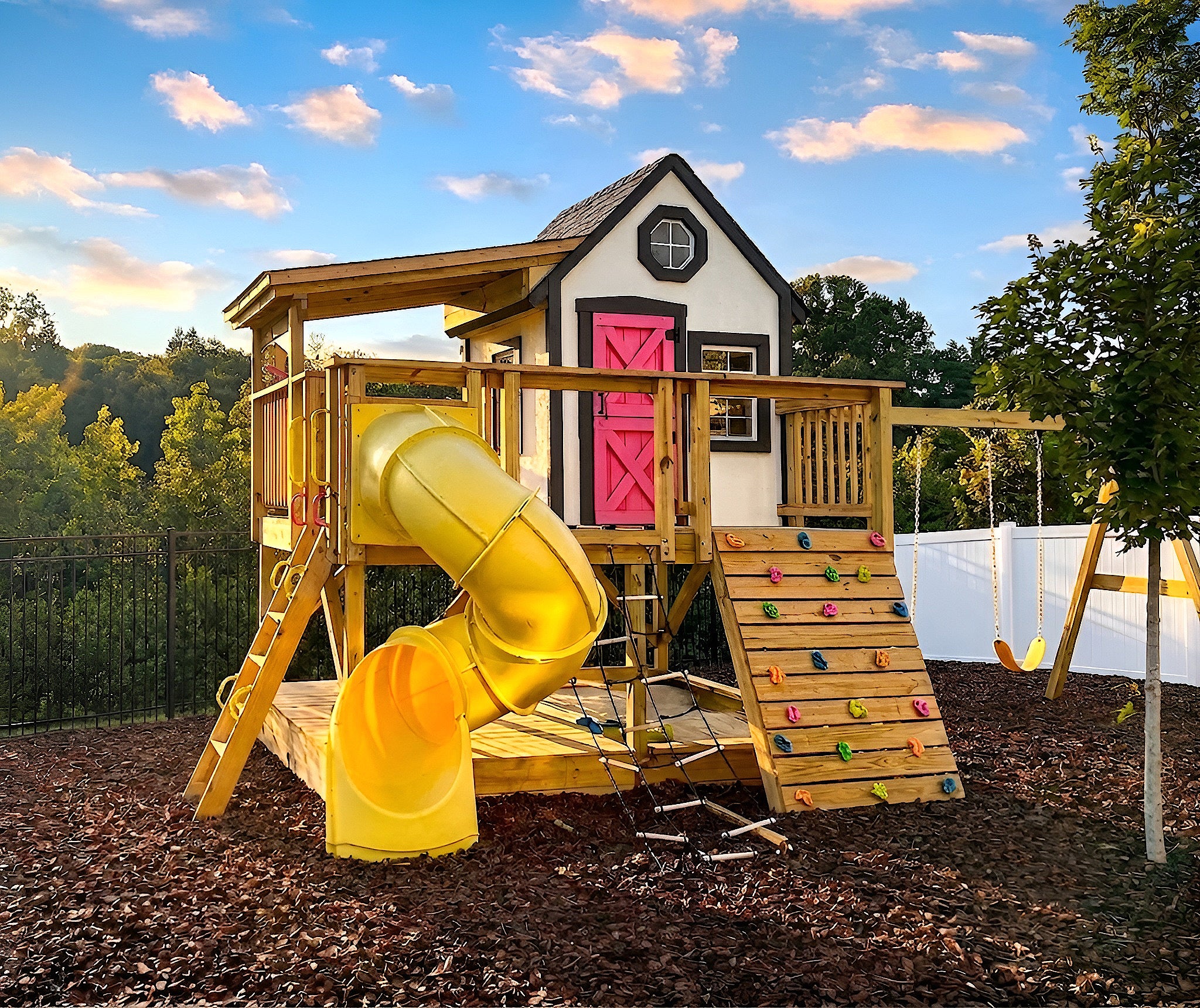

Two level playhouse with a swing-set, slide, rock wall, ladder and other accessories
wood playground playhouse play-set
Playground Playhouse Plan (2‑Sizes Sold Separately)
Playground Playhouse Plan (2‑Sizes Sold Separately)
Grey, elevated playground playhouse plan
Playground playhouse plan dimensions
Playground Playhouse Plan (2‑Sizes Sold Separately)

Full Lumber List Included

(See Below)

Playground Playhouse Plan (2‑Sizes Sold Separately)

Regular price $ 60.00 Credit Cards Accepted Sale

A 3-ring binder and the PDF logo

If you're looking for a fantastic mix of both a playhouse and backyard play-set, the Playground Playhouse plans are the designs you need to build! Choose between the 16x16 Deluxe size, or the 12x8 Standard size. There are tons of opportunities to add many cool accessories and keep kid's highly engaged for a long time.

Coming in at 130 ft² or 96ft², these designs are all elevated onto a platform, allowing a large play area underneath, as well as adding the ability to add slides, ladders and other swing-set products. Included instructions in the plan are the fire pole attachment, rock-wall, ship ladder and bucket and pulley post. There's also plenty of room to add slides, cargo nets or other fun accessories!

The house portion of the plan features a 7' x 5' footprint with 6 windows, gable roof and a trap door down to the ground.


Don't forget to also check out our toddler playground playhouse plan for the younger kiddos too! This plan is especially made for children 2-6 years old with it's 3' deck height and whimsical and playful design.

Deluxe Size (16x16)



Features:

  • Two story play-set with a total of 130 ft² in usable play space
  • 35 ft² playhouse w/ gable roof
  • Room for slides, ladders, fire pole and cargo net
  • 12' swing-set attachment
  • Trap door and ladder
  • Instructions for a rock wall and ship ladder
  • 6 total window openings
  • Ladder and trap door lead to the 2nd floor
  • Designed for children aged 3-11
  • 60 page, step by step PDF plan

Dimensions:

  • 31' Wide (w/ swing-set attachment)
  • 16' Wide (w/o swing-set attachment)
  • 15' 6" Deep
  • 12' 3" Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 30° gable roof pitch
  • 54 ft² of total roof coverage. Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(7) 5/4” x 6” x 10'
(3) 5/4” x 6” x 12'
(12) 5/4” x 6” x 16'

Framing:

(21) 2” x 4” x 8'
(22) 2” x 4” x 10'
(3) 2” x 4” x 12'

(27) 2” x 6” x 8'
(5) 2” x 6” x 10'
(5) 2” x 6” x 12'
(2) 2” x 6” x 16'

(1) 2” x 8” x 8'
(1) 2” x 8” x 10'

(8) 4” x 4” x 8'
(5) 4” x 4” x 12'

(3) 4” x 6” x 10'
(1) 4” x 6” x 12'

Trim:
(6) 1” x 4” x 8'
(1) 1” x 4” x 12'

Balusters:
(55) 2” x 2” x 3'

Plywood:
(10) 4' x 8' x 1/2” Plywood Non-PT

Hardware List:

  • (15 lbs) GRK 3” R4 Screws
  • (20 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws



Standard Size (12x8)



Features:

  • 5' elevated play-set with a total of 130 ft² in usable play space
  • 96 ft² playhouse w/ gable roof
  • Room for slides, ship ladders, fire pole and cargo net
  • 6 total window openings
  • Designed for children aged 3-11
  • 65 page, step by step PDF plan

Dimensions:

  • 12' Wide (w/ swing-set attachment)
  • 8' Deep
  • 13' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 45° gable roof pitch & 10° porch roof pitch
  • 80 ft² of total roof coverage. Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(26) 5/4” x 6” x 8'

Framing:

(9) 2” x 4” x 8'
(17) 2” x 4” x 10'
(11) 2” x 4” x 12'

(6) 2” x 6” x 8'
(3) 2” x 6” x 10'
(6) 2” x 6” x 12'

(1) 2” x 8” x 8'
(9) 2” x 8” x 12'

(4) 2” x 10” x 8'

(2) 4” x 4” x 10'
(2) 4” x 4” x 12'

Trim:
(4) 1” x 4” x 8'
(2) 1” x 4” x 10'
(6) 1” x 4” x 12'

(2) 1” x 6” x 10'

Balusters:
(30) 2” x 2” x 3'

Ground Posts:
(4) 6” x 6” x 8'

Plywood:
(10) 4' x 8' x 1/2” Plywood Non-PT
(1) 4' x 8' x 5/8” Plywood

Hardware List:

  • (10 lbs) GRK 3” R4 Screws
  • (10 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
