Paul's Clubhouse Plan・2-Options

For an exciting, backyard playground extravaganza, Paul's clubhouse is a fun and down to basics playhouse your kids will love to climb up, down and every other direction on. Fill the bottom with sand, move the toys and play furniture in upstairs and get ready to have a blast!

There are all types of ways kids can interact with this 8x8 wood play-set.  Totaling three levels, with a ship ladder and trap door for access, there is a rock wall, room for a slide and a fire pole off of the top floor.  There isn't anything really that complicated about it, yet it will make for a real dream home playground no child can resist! Part of our playground plan designs, download the plan and get started building it today.

Features:

• Choose two different designs, with one having a 3rd level loft (Deluxe) and the other having a traditional lean-to roof (Standard)

• Includes instructions to build a rock wall & ship ladder
• Trap door to the 3rd level (Deluxe)

• Room for ship ladder, slide and rock wall
• 5.5' Max interior head room
• Bottom can be used as a sand box
• Fire pole exit from the top level
• 8 window openings
• Designed for children aged 3-10
• 32 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

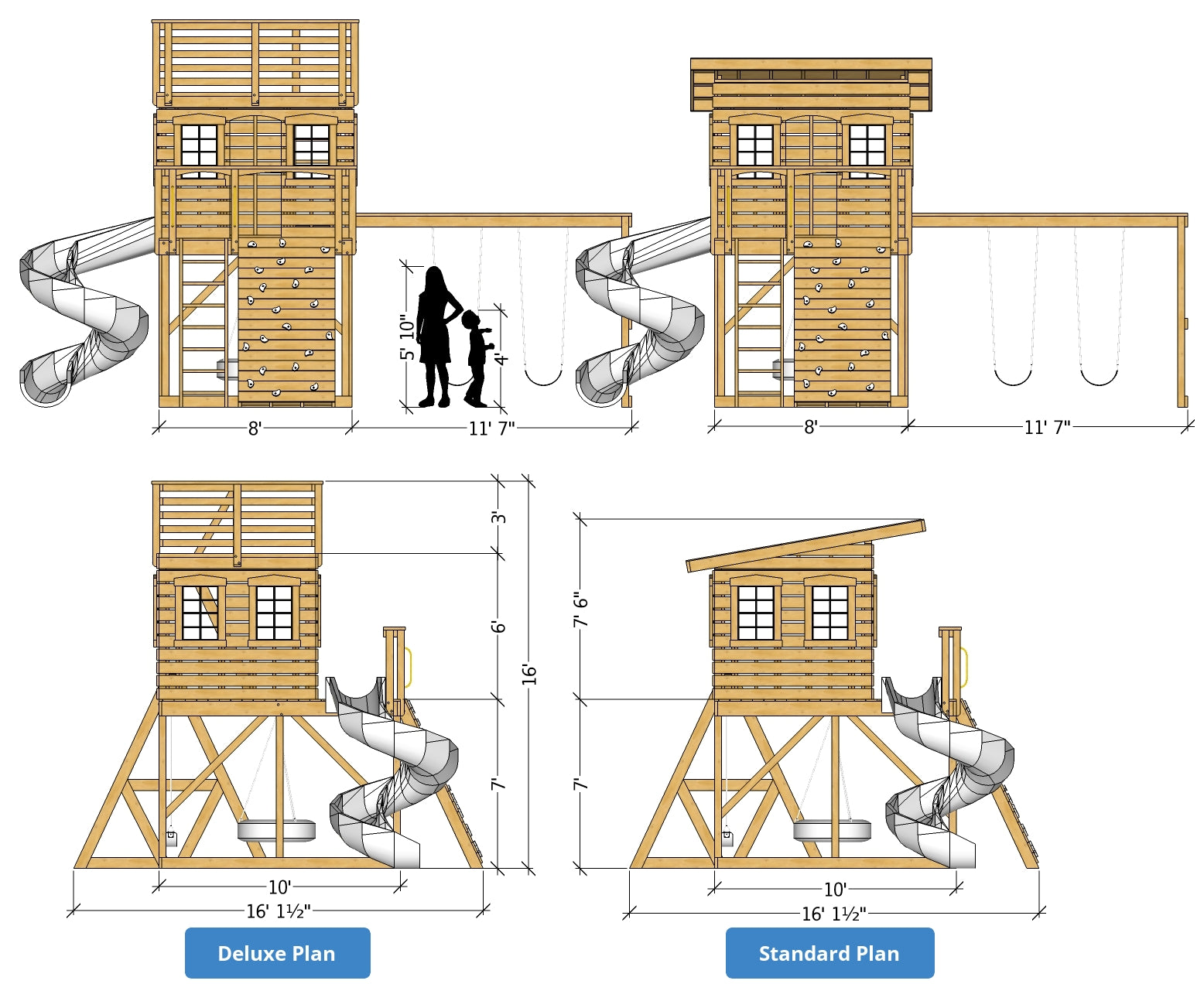

Dimensions:

• 8' Wide
• 10' Deep
• 14' Tall

Framing Details:

• Joists: 2x6 - 16" O.C.
• Walls: 2x4 - 16" O.C.

Windows:

• (8) 18" x 27" single pane, shed windows

Lumber List (Deluxe):

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 55 ) 5/4” x 6” x 8'
( 15 ) 5/4” x 6” x 10'
( 2 ) 5/4” x 6” x 12'

2x4:
( 36 ) 2” x 4” x 8'
( 4 ) 2” x 4” x 10'
( 15 ) 2” x 4” x 12'

2x6:
( 16 ) 2” x 6” x 8'
( 15 ) 2” x 6” x 10'
( 2 ) 2” x 6” x 12'

2x8:
( 9 ) 2” x 8” x 10'
( 1 ) 2” x 8” x 12'

4x4:
( 7 ) 4” x 4” x 8'
( 4 ) 4” x 4” x 12'

4x6:
( 3 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 1 ) ½" Plywood Sheets

Hardware:
(10lbs) GRK 3” R4 Screws
(15lbs) GRK 2” R4 Screws
(Optional) GRK 4” RSS Screws
(52) 5½" Carriage Bolts

Lumber List (Standard):

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 48 ) 5/4” x 6” x 8'
( 15 ) 5/4” x 6” x 12'

2x4:
( 25 ) 2” x 4” x 8'
( 4 ) 2” x 4” x 10'
( 25 ) 2” x 4” x 12'

2x6:
( 13 ) 2” x 6” x 8'
( 10 ) 2” x 6” x 10'
( 6 ) 2” x 6” x 12'

2x8:
( 9 ) 2” x 8” x 10'
( 1 ) 2” x 8” x 12'

4x4:
( 7 ) 4” x 4” x 10'
( 1 ) 4” x 4” x 12'

4x6:
( 3 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 4 ) ½" Plywood Sheets

Hardware:
(10lbs) GRK 3” R4 Screws
(10lbs) GRK 2” R4 Screws
(Optional) GRK 4” RSS Screws
(34) 5½" Carriage Bolts
