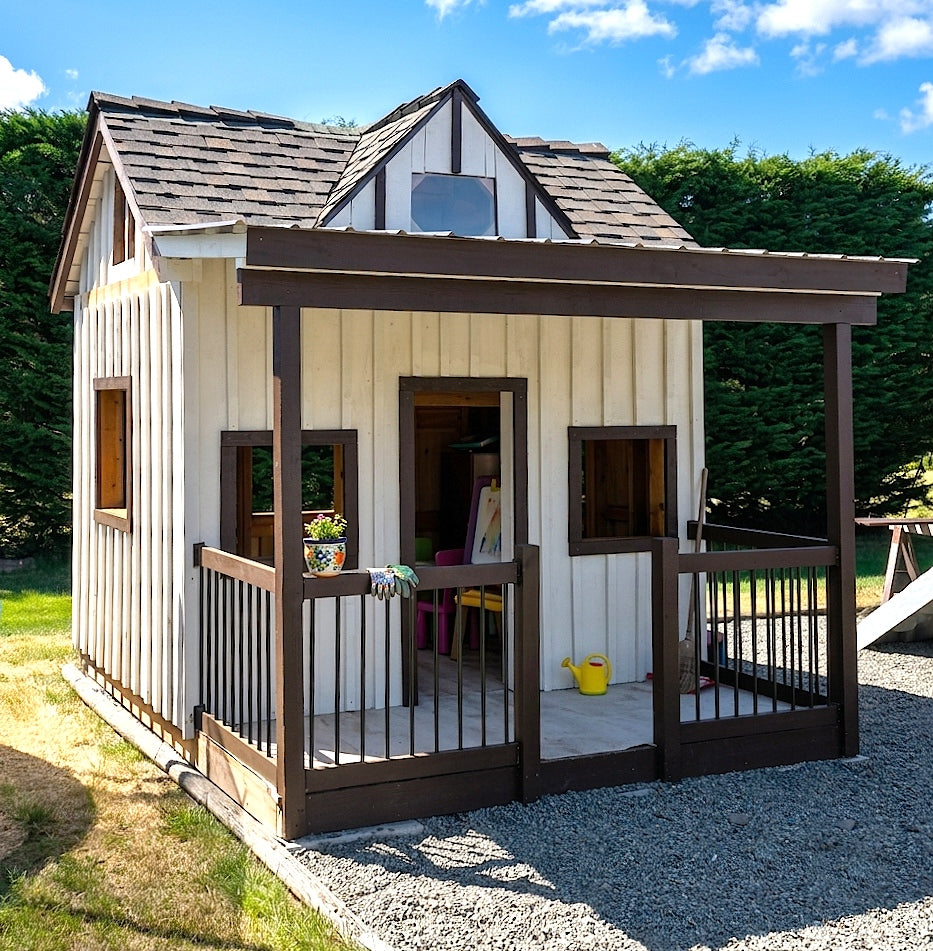

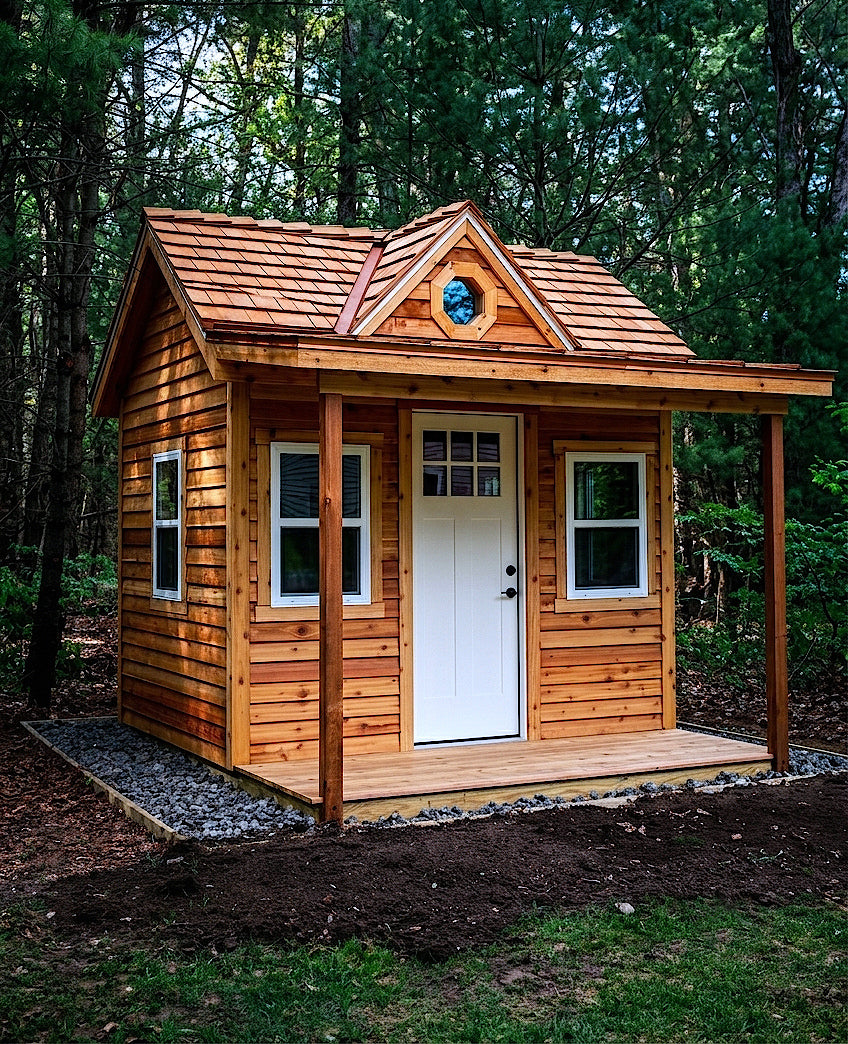

The "Loretta" shed plan is a 10' x 12', 120 ftΒ², gable roofed structure with a front porch.Β Whimsical in style, this Wendy house can be used both for a storage she shed or child's playhouse.Β Check out the Rosemary shed design too, as well as our sister website, PaulsPlayhouses.com for other playhouse styled plans.Β If you choose the digital & physical copy option, you will receive a black and white, 3 ring binder booklet of the 66 page plan, as well a a link to the digital, PDF download.
Features:
- Wendy house styling
- 120 ftΒ² in usable space
- (6) 24" x 36" shed window opening
- (1) 14" octagonal shed window openings
- 35Β° gable roof pitch | 8Β° porch roof pitch
- (1) Single, 36" x 80" door
- (4) Wooden shutters
- 10' 1" Max interior head room
- 66 page, step by step PDF plan
Dimensions:
- 10' 0"Β Wide
- 12' 0" Deep
- 11' 2"Β Tall
Framing Details:
- Joists: 2x6 - 16" O.C.
- Walls: 2x4 - 16" O.C.
- Rafters: 2x4 - 16" O.C.
Lumber List:
Make sure to ask about and take advantage of any volume discount from your local lumber yard!
Framing:
(65) 2β x 4β x 8'
(12) 2β x 4β x 10'
(14) 2β x 4β x 12'
(4) 4β x 4β x 8'
(12) 2β x 6β x 10'
(4) 2β x 6β x 12'
(1) 2β x 8β x 12'
(24) 2β x 2β x 36β Balusters
Trim:
(7) 1β x 4β x 8'
(13) 1β x 4β x 10'
(7) 1β x 4β x 12'
(1) 1β x 6β x 10'
(9) 1β x 6β x 12'
Plywood:
(19) 4' x 8' x 1/2β Plywood
(5) 4' x 8' x 3/4β Plywood
Hardware List:
- (10lbs) GRK 3β R4 Screws
- (10lbs) GRK 2.5β R4 Screws
- (Optional) GRK 4β RSS Screws
Hire a qualified professional.
