First Rescue Fire Truck Playset Plan

$ 65.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

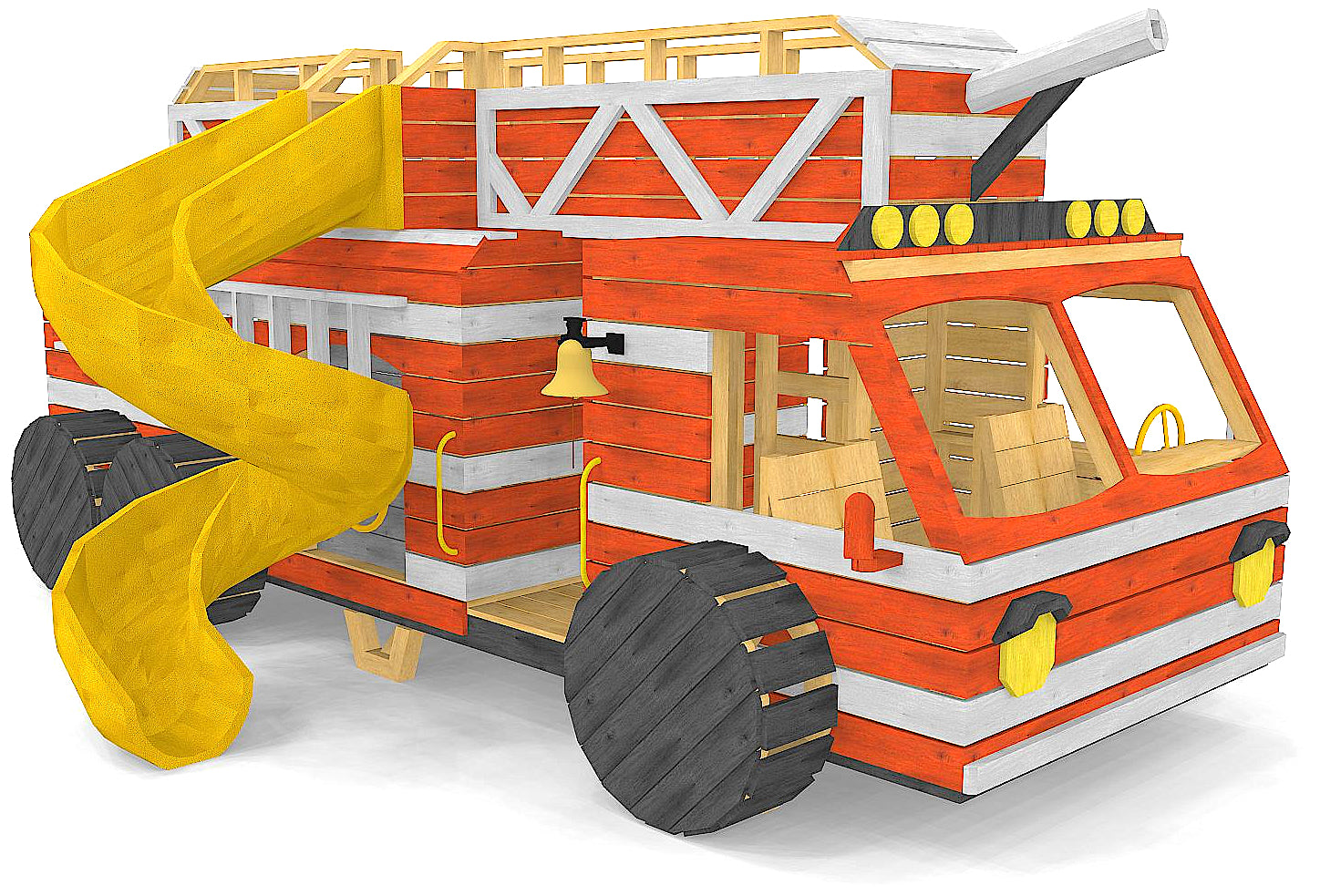

Boys love trucks of all types, and we're proud to offer many different and unique playset designs for you to choose from. Along with our smaller fire truck, the 10x16 fire truck woodworking plan we offer is something really special. Packed with lots of fun details like front and rear seats, two ladders to the 2nd story boom and two decorative ladders on the side, six wheels and a slick chassis, the First-Rescue fire truck is both captivating and classic, with an overall scheme and child will go crazy for.

It wasn't long ago when I used to play on an old retired fire engine located at an local orchard.   I wanted to replicate the enjoyment had with that old engine in this playset deign you can download today.  A lot of love went into this design and I'm sure you'll get it all back when your child gets to play with it too.  Don't forget to also check out our small and large fire station plans as well!


  • 130ft² in usable interior play space
  • Two Levels w/ two trap doors
  • 4' 6" wall height
  • Details include two stories, front seats & back benches, side and back exits, mirrors, light bar, boom water nozzle.
  • Spot to add a 7' high slide
  • Designed for ages 3-10
  • 57 page, step by step PDF plan

Plan Category:

🚂 Vehicle Playset Plans


  • 20' Wide
  • 9' 8" Deep
  • 9' Tall

Framing Details:

  • Joists: 2x6 & 2x4 - 16" O.C.
  • Walls: 2x4 - 16" O.C.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

(57)  5/4” x 6” x 8'
(33)  5/4” x 6” x 10'
(27)  5/4” x 6” x 12'
(17)  5/4” x 6” x 16'


(46)  2” x 4” x 8'
(38)  2” x 4” x 10'
(27)  2” x 4” x 12'
(7)  2” x 4” x 16'

(24) 2” x 6” x 8'

(4) 2” x 6” x 10'

(1) 2” x 8” x 8'

(3) 4” x 4” x 8'

Hardware List:

  • (10 lbs) GRK 3” R4 Screws
  • (15 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws

Not sure you can build this plan?
Hire a qualified professional.

Customer Reviews

Based on 1 review
Kim Cobb
Very detailed and specific

We purchased the fire truck plan to build for our 2 small grandson. It turned out so much better than we expected! The plans are very detailed and specific with regard to materials, which led to a finished product that feels safe for children. My grandsons love it and it's one of the best things we have ever done for them.
