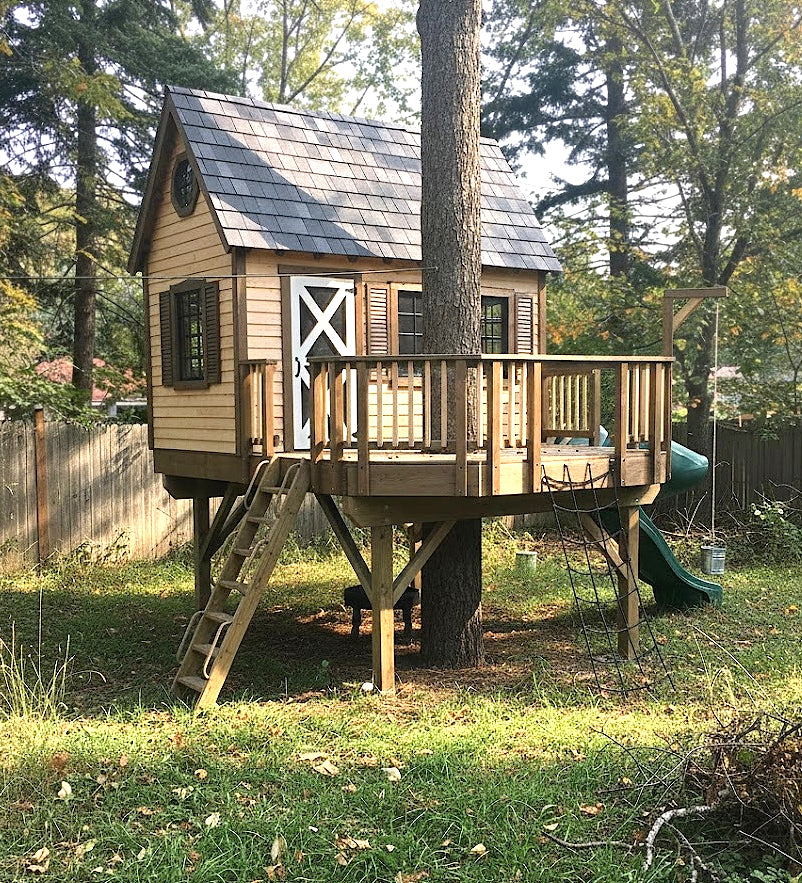

For a classic design every child will love, our Elevated Adventure playset plan is a top rated concept you should consider.  This 7' high, playhouse on stilts provides ample space for accessories, play space and enclosed activities.

The playhouse portion features room for six 2x3 glass windows to allow plenty of natural light, and a 4x6 loft offers even more interior space. Offered in two sizes, with the deluxe option providing an additional 80ft², your family will enjoy building this fun design for years to come.

Standard Plan

Features:

  • Classic playhouse on stilts design with a 7' deck height and 211ft² of usable play space
  • Open deck and enclosed playhouse concept combines the best of both worlds with ample room for accessories
  • 4' x 6.5' interior loft
  • Designed for children aged 3-12
  • 54 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

Dimensions:

  • 30' Wide
  • 16' Deep
  • 19' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Glass Shed Windows:

  • ( 2 )  18" x 27"
  • ( 4 )  14" Octagonal

Roofing Details:

  • 60° gable roof pitch
  • 182 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(1)  5/4” x 6” x 8'
(3)  5/4” x 6” x 10'
(16)  5/4” x 6” x 12'

2x Framing:
(33)  2” x 2” x 3'
(23)  2” x 2” x 8'

(51)  2” x 4” x 8'
(10)  2” x 4” x 10'
(10)  2” x 4” x 12'

(29) 2” x 6” x 8'
(6) 2” x 6” x 10'
(4) 2” x 6” x 12'

(1) 2” x 8” x 16'

(2) 2” x 12” x 8'
(5) 2” x 12” x 12'
(5) 2” x 12” x 16'

4x Framing:
(9)  4” x 4” x 10'
(5)  4” x 4” x 12'

Plywood:
(21) ½” Plywood
(4) ¾” Plywood

Hardware List:

  • (10 lbs) GRK 3” R4 Screws
  • (20 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws

Deluxe Plan

Features:

  • Classic playhouse on stilts design with a 7' deck height and 290ft² of usable play space
  • Open deck and enclosed playhouse concept combines the best of both worlds with ample room for accessories
  • Deluxe upgrade includes additional peninsula attachment for added room for accessories
  • 4' x 6.5' interior loft
  • Designed for children aged 3-12
  • 77 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

Dimensions:

  • 12' Wide
  • 7' Deep (House)
  • 16' Deep (Structure)
  • 19' Tall

Framing Details:

  • Joists: 2x12 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Glass Shed Windows:

  • ( 6 )  2' x 23'"
  • ( 2 )  18" Octagonal

Roofing Details:

  • 55° gable roof pitch
  • 180ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(2)  5/4” x 6” x 8'
(3)  5/4” x 6” x 10'
(30)  5/4” x 6” x 12'

2x Framing:
(83)  2” x 2” x 3'
(23)  2” x 2” x 8'

(60)  2” x 4” x 8'
(11)  2” x 4” x 10'
(15)  2” x 4” x 12'

(39) 2” x 6” x 8'
(20) 2” x 6” x 10'
(5) 2” x 6” x 12'

(7) 2” x 8” x 8'
(4) 2” x 8” x 10'
(1) 2” x 8” x 12'
(1) 2” x 8” x 16'

(2) 2” x 10” x 12'

(2) 2” x 12” x 8'
(5) 2” x 12” x 12'
(10) 2” x 12” x 16'

4x Framing:
(7)  4” x 4” x 8'
(13)  4” x 4” x 10'
(7)  4” x 4” x 12'

Plywood:
(24) ½” Plywood
(1) ⅝” Plywood
(4) ¾” Plywood

Hardware List:

  • (15 lbs) GRK 3” R4 Screws
  • (25 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
