Davy Jones' Locker Pirate Ship Plan

$ 75.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

If you have some carpentry experience under your belt, get ready to take on quite the epic project!  Massive thrills and excitement abound in this cool DIY, 11x19 backyard pirate ship plan.  Dubbed the Davy Jone's Locker, there are tons of ways kids can interact, play and go adventuring on the high seas.  Features three stories with a roof that covers half the structure for those pesky rainy days.  There are six ways to enter and exit, including a gang plank and a spot for a slide.

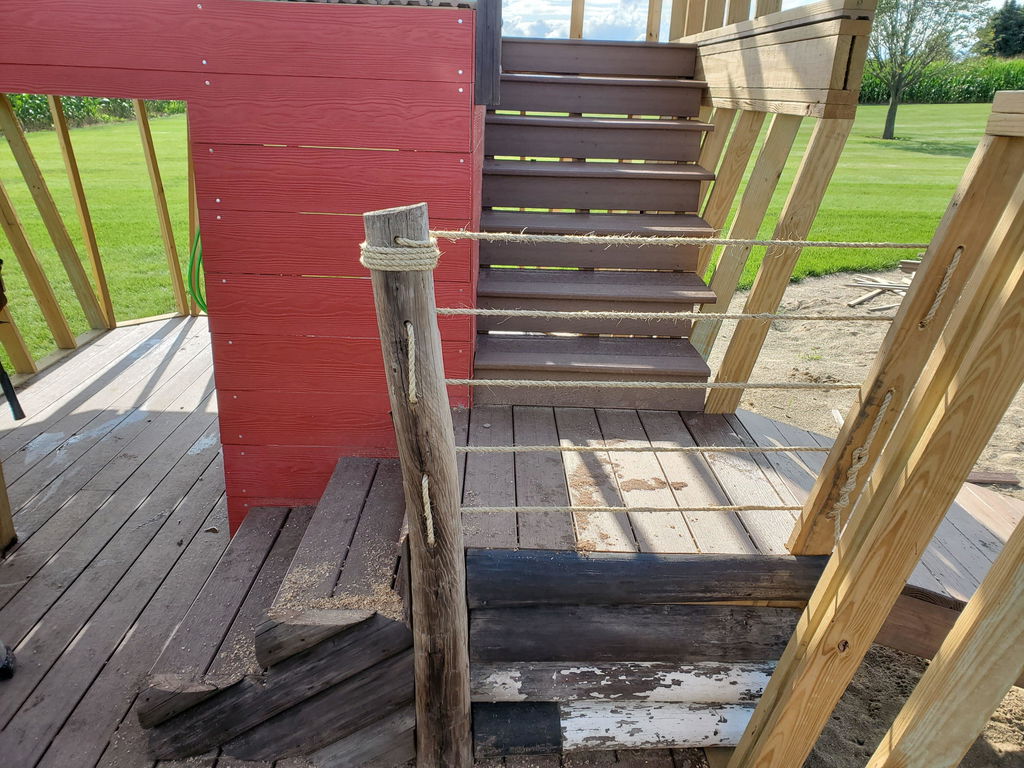

The crow's next can be climbed into from two entrances and also acts as the bridge between the bow and stern of the ship.  Trap doors in the front and back allow for a quick getaway, and a flight of stairs connect the 1st and 2nd story for easy access.  Room for six shed windows and rope rails add even more character!  With a total of 250 square feet, your kids will have a blast taking on the peril of sea bound piracy!

Also be sure to sail over to our complete pirate ship plan page to see all of our ship ideas!


  • 250ft² in usable play space
  • 3 stories with crow's nest
  • Both open and sheltered environments
  • 13' Gang plank
  • Room for a slide
  • Six 18" x 27" shed window openings
  • Center mast & interactive crow's nest
  • 5 total entrances/exits from the 1st and 2nd floor
  • Two trap doors
  • Designed for children aged 3-10
  • 124 page, step by step PDF plan

Plan Category:

🏴‍☠️ Pirate Ship Playhouse Plans


  • 21' Wide (w/ gang plank)
  • 10' 8" Wide (w/o gang plank)
  • 23' Deep
  • 16' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 24° gable & hip roof pitch
  • 110 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

(88)  5/4” x 6” x 8'
(69)  5/4” x 6” x 10'
(24)  5/4” x 6” x 12'
(15)  5/4” x 6” x 16'


(32)  2” x 4” x 8'
(26)  2” x 4” x 10'
(40)  2” x 4” x 12'

(38) 2” x 6” x 8'
(13) 2” x 6” x 10'
(12) 2” x 6” x 12'

(1) 2” x 8” x 8'
(3) 2” x 8” x 16'

(3) 2” x 12” x 8'

(12) 4” x 4” x 8'
(1) 4” x 4” x 16'

(6) 1” x 4” x 10'

(6) ½” Plywood Non-PT

Hardware List:

  • (15 lbs) GRK 3” R4 Screws
  • (30 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
Not sure you can build this plan?
Hire a qualified professional.

Customer Reviews

Based on 5 reviews

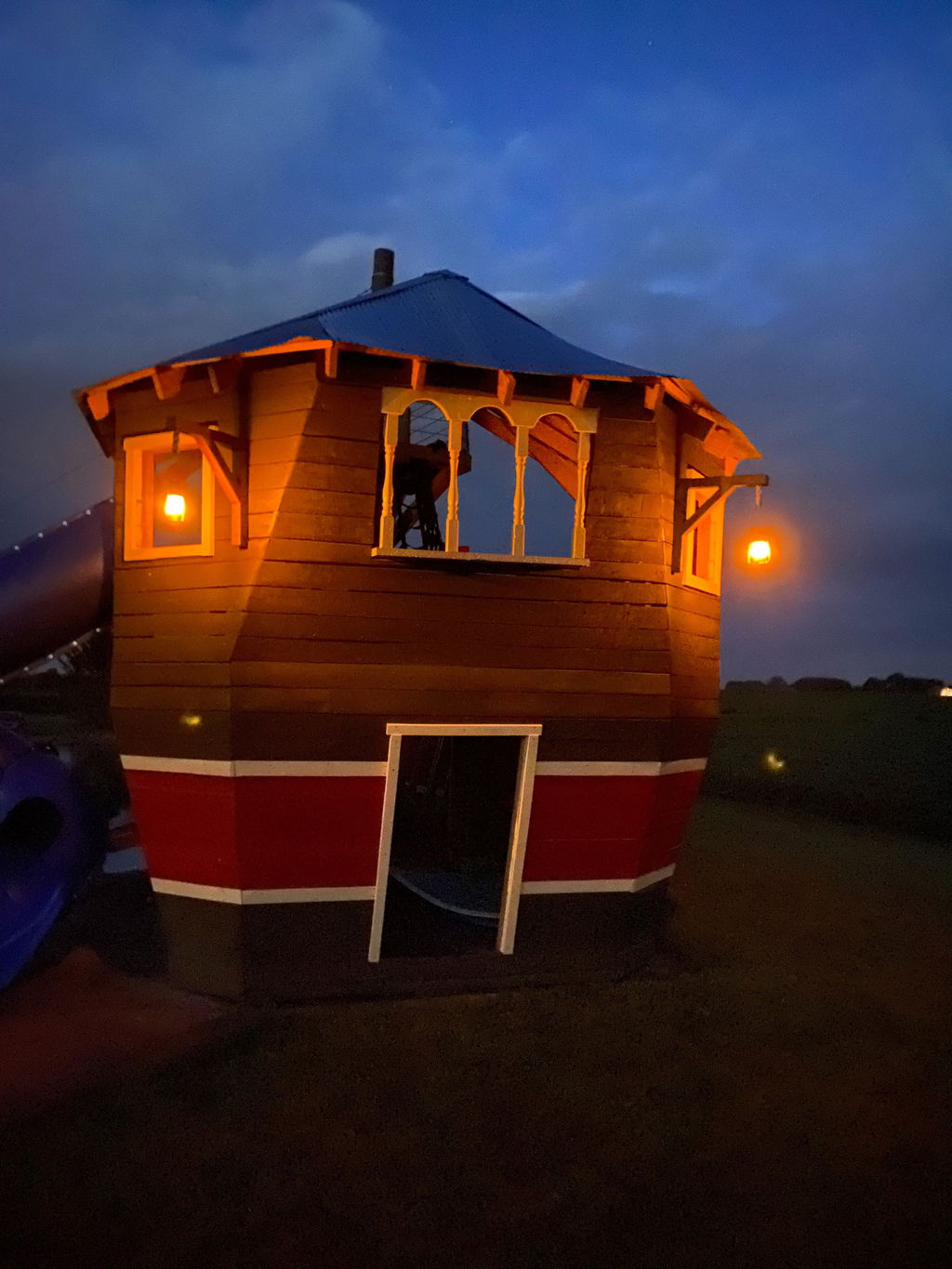

Sam Senter
Great Spring Project

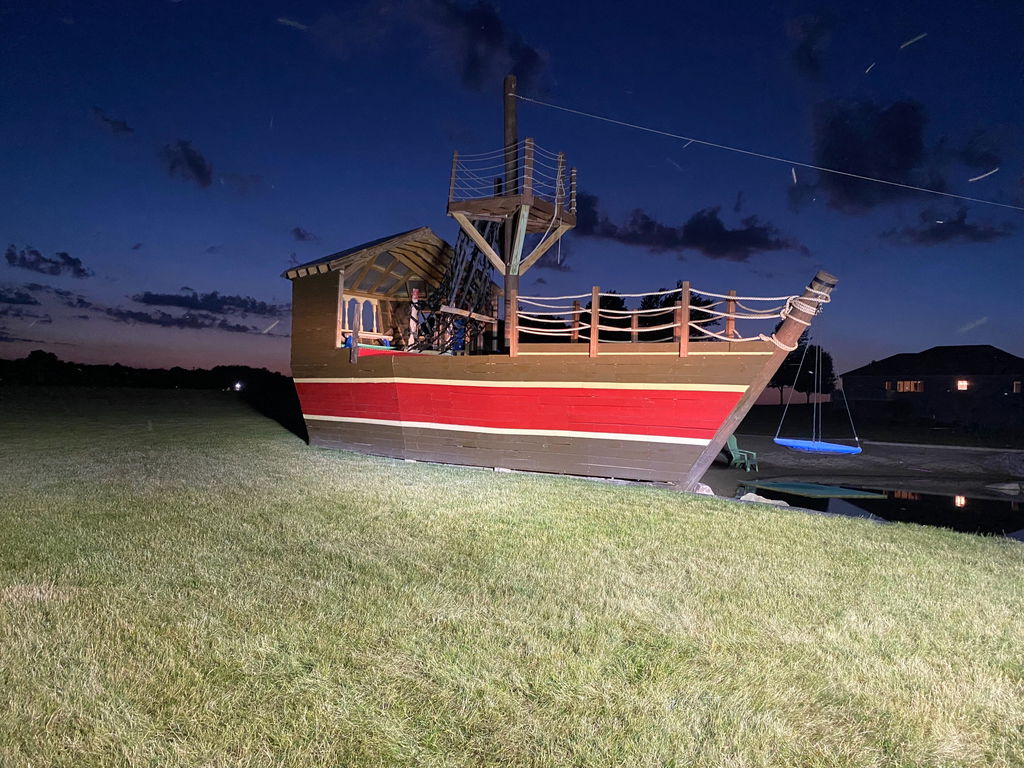

My boys and I started building the Davy Jones last spring. It's about 95% complete now, still lacking the roof and slide. I get a ton of compliments from other parents. Any time the kids have friends over they're all over the thing. The plans were really good. I've built a lot of stuff from online plans and these are top quality. Takes a lot of the thinking/planning out of the project and lets it move a lot faster.

It turned out even better than expected

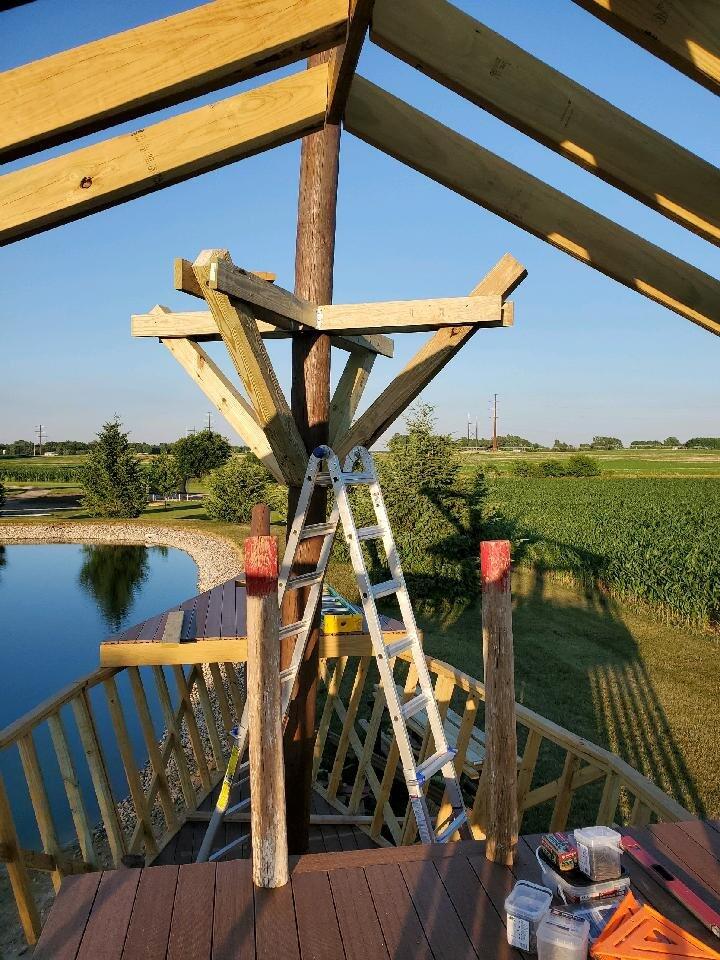

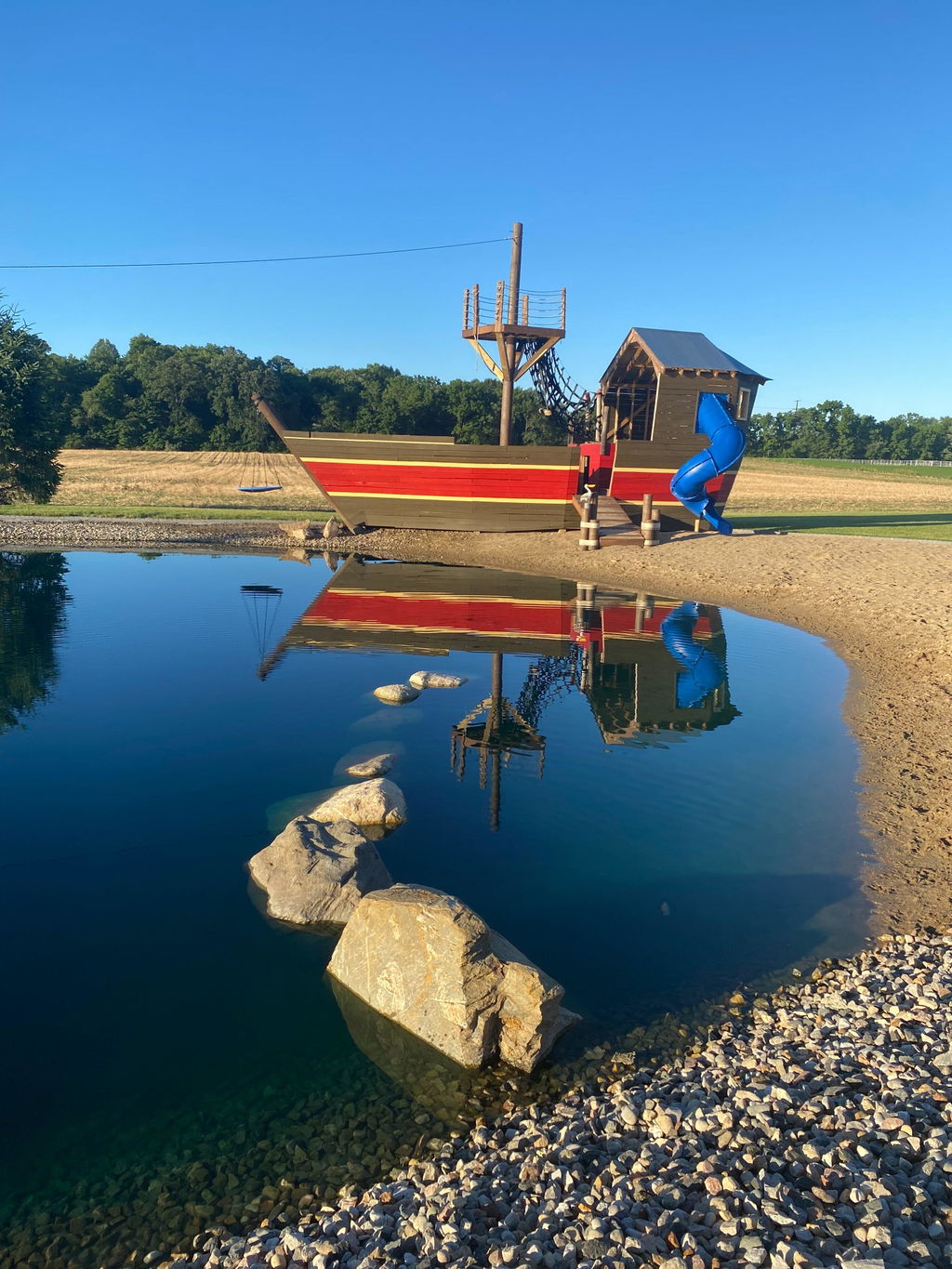

We actually were building a platform for our zip line and I thought it would be so much cooler if it were a pirate ship instead of a plain old platform so I started to search for some ideas online. We came across Paul's playhouse plans and because the plan was very detailed it influenced my decision to go forward with this one in particularly. Although we didn't start exactly as the plans showed because we were a few days in when we changed our overall plan to do this ship vs the boring platform but we certainly ended up with a similar result. And hindsight is 20/20 because at times I wished we had just started over from scratch because the details in the plans the attention to every perfect detail was layed out in these instructions but my footing that I was needing to attach it to wasn't exactly what the instructions were. But finally after a few modifications and many extra cuts, we finally got past the first floor and could follow the plans meticulously. But did we? Well for the most part yes, but with some twists. We decided a bigger mast was necessary for our ship and the skinny path on the deck was not enough to make dad feel real secure about him being up there 6 feet so we enlarged it by 2 feet all around and made it a bit wider, safer and easier to get around up there. My son is very happy with his ship and we have some plans to add cannons later this spring. Thanks for making this dad look like he might do it for a living. It turned out even better than expected.

Easy to follow

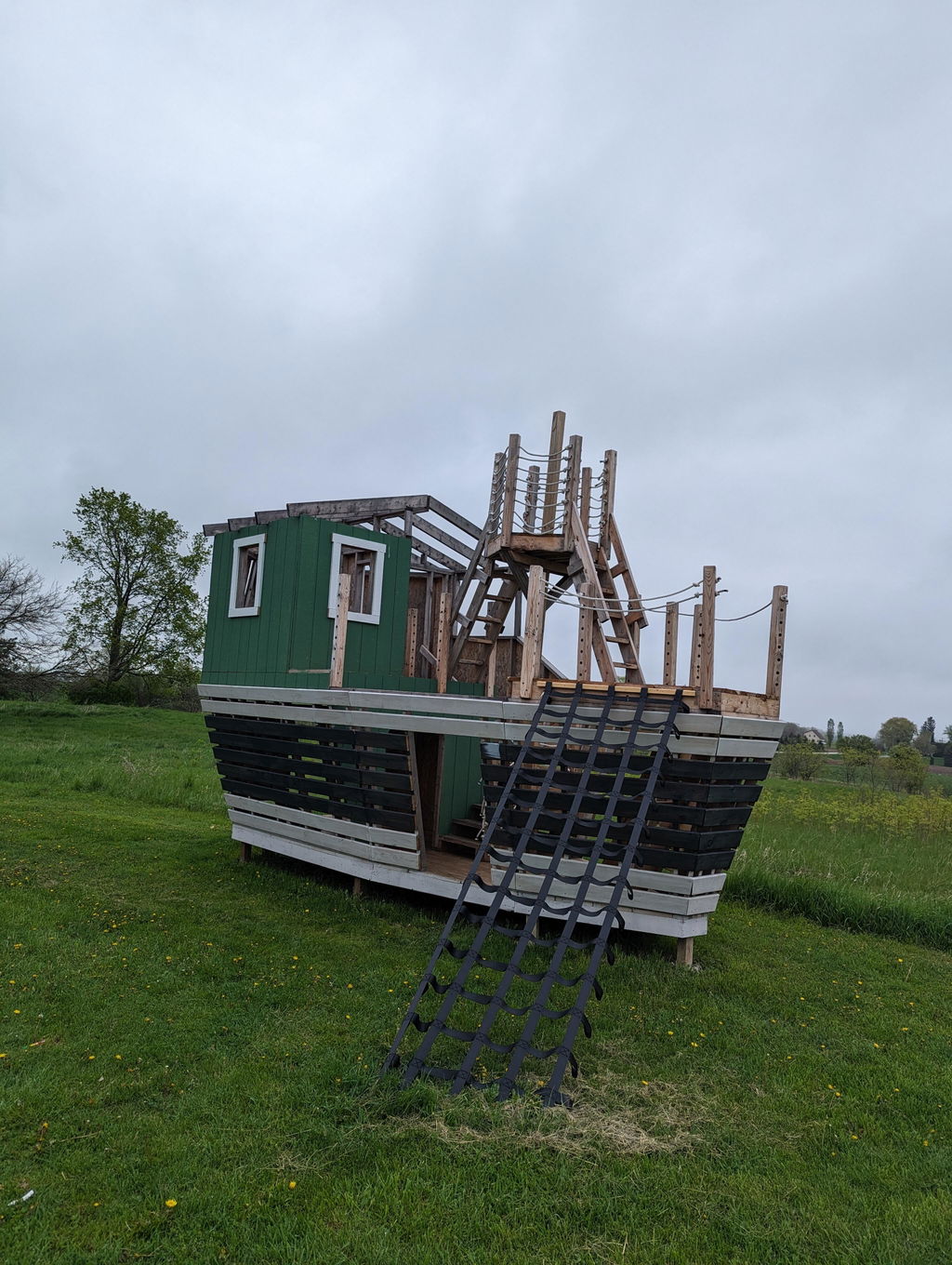

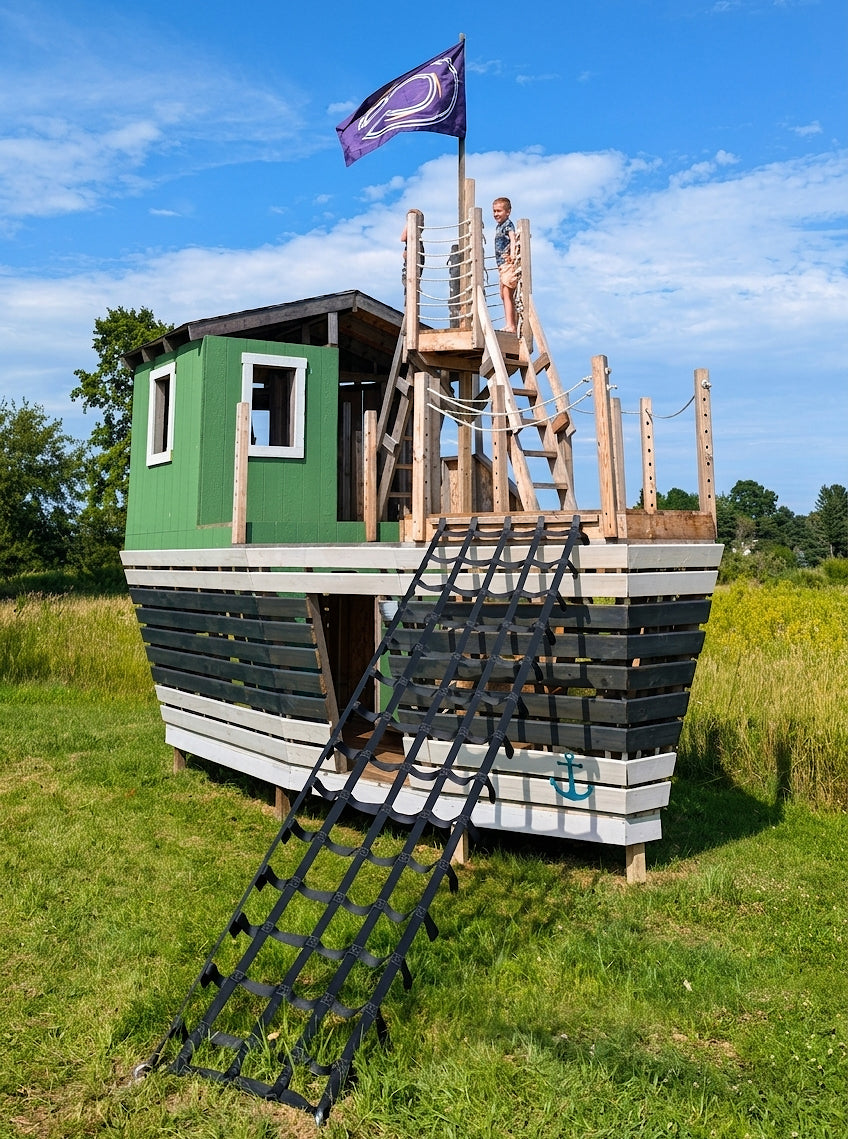

Great plans, easy to follow. Hardware list was super helpful. I deviated from the plans significantly for the upper deck due to neighbor's concerns with the size of the ship. Altered the upper deck to make it more see-through and not as tall. Decked the entire upper deck to provide more playroom.

Kyle Spaethe
Good plans and design, lots of enjoyment.

I purchased these plans a year ago and built it for my son's 4th birthday party. The plans were easy to follow, and detailed. There were a few cuts that had to be made that were a little difficult to figure out but I was able to manage and figure it out. My son's birthday party was a hit and all the kids absolutely loved it, my son still loves it and wants to play on it all the time. Any body that comes over he has to show them his pirate ship and we look forward to many years of enjoyment with it. I plan to add more things to it for more enjoyment.

Love it

The Build went great!! The plans were very detailed and easy to follow...lots of angle cuts but definitely worth it, my boy absolutely love it!
