Big & Burly Bulldozer Playset Plan

$ 50.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

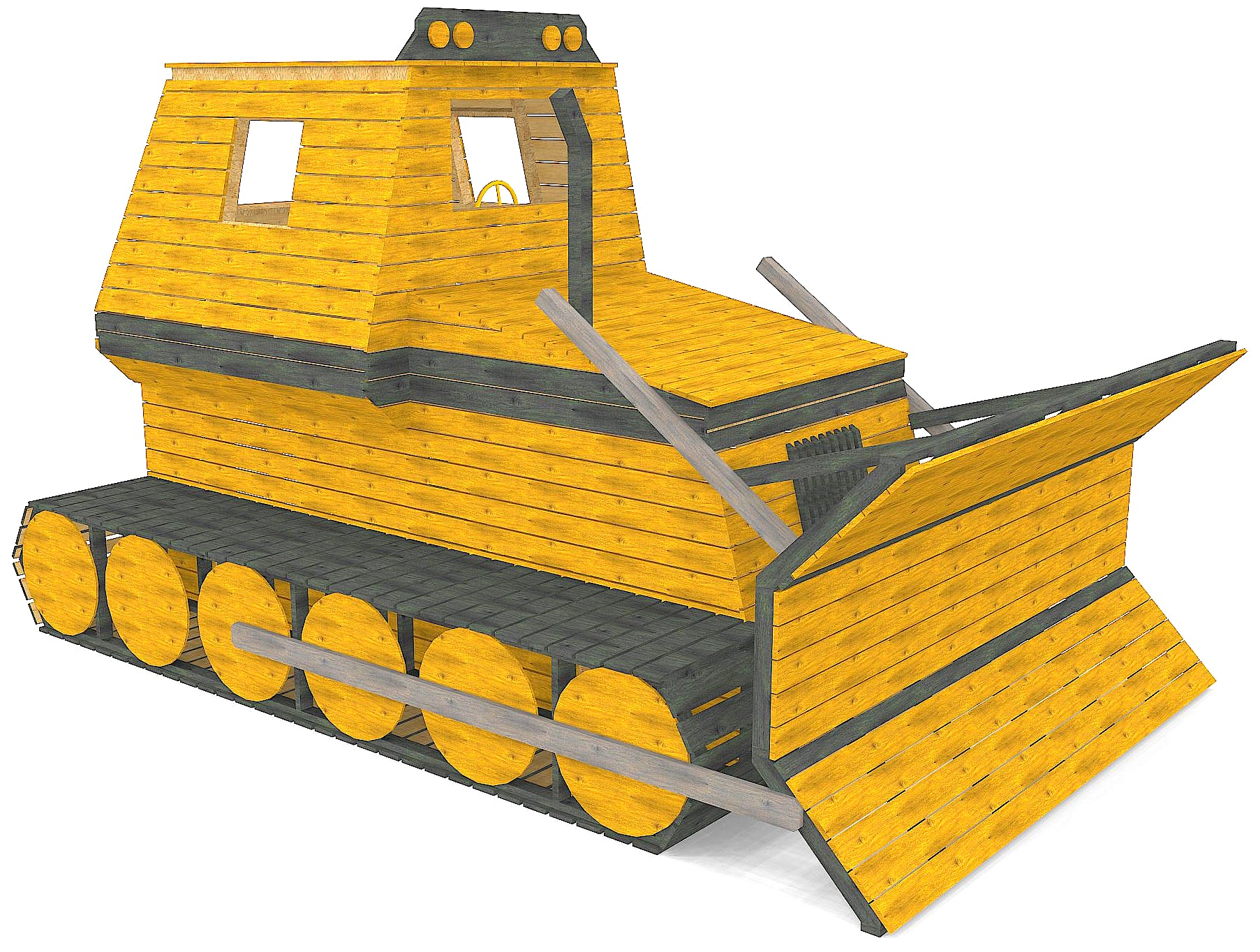

Get ready to dig into fun with the Big & Burly Bulldozer Playset Plan, a backyard construction marvel that’s built to last and designed for play. Measuring a hefty 20 feet long, 12 feet wide, and 11 feet tall, this two-story wooden bulldozer offers 250 square feet of imaginative space. Complete with a massive front blade, detailed treads you can crawl through, and a trap door for secret exits, it's a dream come true for young builders and adventurers. Whether you're pushing dirt or just pushing imagination, this playset is sure to be the cornerstone of outdoor fun.

Features:

  • 250 ft² in usable play space
  • Designed for ages 3-11
  • 5' 6" 1st floor height, 5' 2nd floor height
  • Details include a large blade, light bar, exhaust stack, two detailed treads, trap door & ladder
  • Two stories
  • The treads can be crawled through w/ two inside entrances front & back
  • 20' long, 12' wide, 11' tall
  • 35 page, step by step plan

Plan Category:

🚂 Vehicle Playset Plans

Materials:

Decking:
( 85 ) 5/4” x 6” x 8'
( 98 ) 5/4” x 6” x 12'
( 12 ) 5/4” x 6” x 16'

Framing:
( 58 ) 2” x 4” x 8'
( 15 ) 2” x 4” x 10'
( 34 ) 2” x 4” x 12'
( 16 ) 2” x 4” x 16'
( 1 ) 4” x 4” x 8'
( 10 ) 2” x 2” x 4'

Plywood:
( 4 ) 1/2" Sheets

Make sure to ask about and take advantage of any volume discount from your local lumber yard!
Not sure you can build this plan?
Hire a qualified professional.
