Rusty the Tugboat Playset Plan

$ 55.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

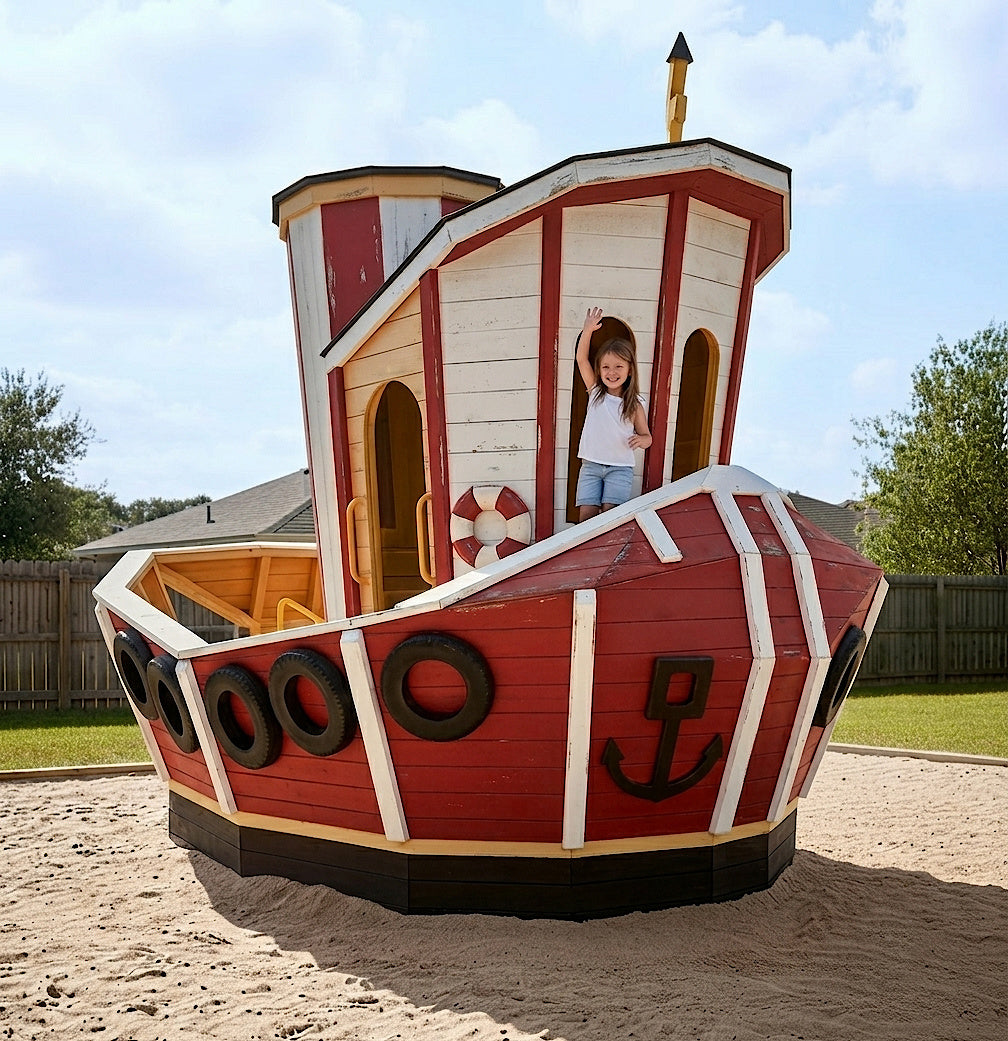

Toot up your imagination with the Rusty the Tugboat Playset Plan, a  caricaturesque backyard tugboat that’s built for fun and friendly adventure. Rusty’s exaggerated framing and angling give it a delightful storybook look, while the wraparound deck and elevated cabin invite kids aboard for nautical pretend play. With about 60 sq ft of usable space, it’s the perfect size for kids aged 3 to 7 to steer imaginary waterways or tow hidden treasures across the garden.

This tugboat isn’t just cute, it's play‑packed too. Hop aboard the center cabin, explore from the deck, and peek out through portholes for a view of the "harbor." If you love Paul’s collection of whimsical vehicle designs, Rusty fits right in alongside larger creations like the Yellow Submarine or Hot Rod Playset. It’s built with simplicity in mind yet detailed enough to inspire stories and playtime that lasts all afternoon.

Features:

  • Whimsical and cartoon like aesthetic
  • 60 ft² in usable play space
  • Center, elevated cabin with a full wrap around deck
  • Designed for children aged 3-7
  • 53 page, step by step PDF plan

Plan Category:

🚂 Vehicle Playset Plans
🧸 Young Children Plans

Dimensions:

  • 10' Wide
  • 12' Deep
  • 9' Tall

Framing Details:

  • Joists: 2x8 - 16" O.C.
  • Walls: 2x4 - 16" O.C.

Lumber List:

Make sure to take advantage of any volume discount from your local lumber yard!

Decking:
( 17 )  5/4” x 6” x 8'
( 3 )  5/4” x 6” x 10'
( 1 )  5/4” x 6” x 12'

2x2:
( 18 )  2” x 2” x 8'

2x4:
( 52 )  2” x 4” x 8'
( 16 )  2” x 4” x 10'
( 22 )  2” x 4” x 12'

2x6:
( 6 ) 2” x 6” x 8'

2x8:
( 10 )  2” x 8” x 8'
( 2 )  2” x 8” x 10'
( 1 )  2” x 8” x 12'

Plywood:
( 15 ) ½" Plywood Sheets

Not sure you can build this plan?
Hire a qualified professional.
