Red Summit Swing Set Plan・2-Sizes

$ 45.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

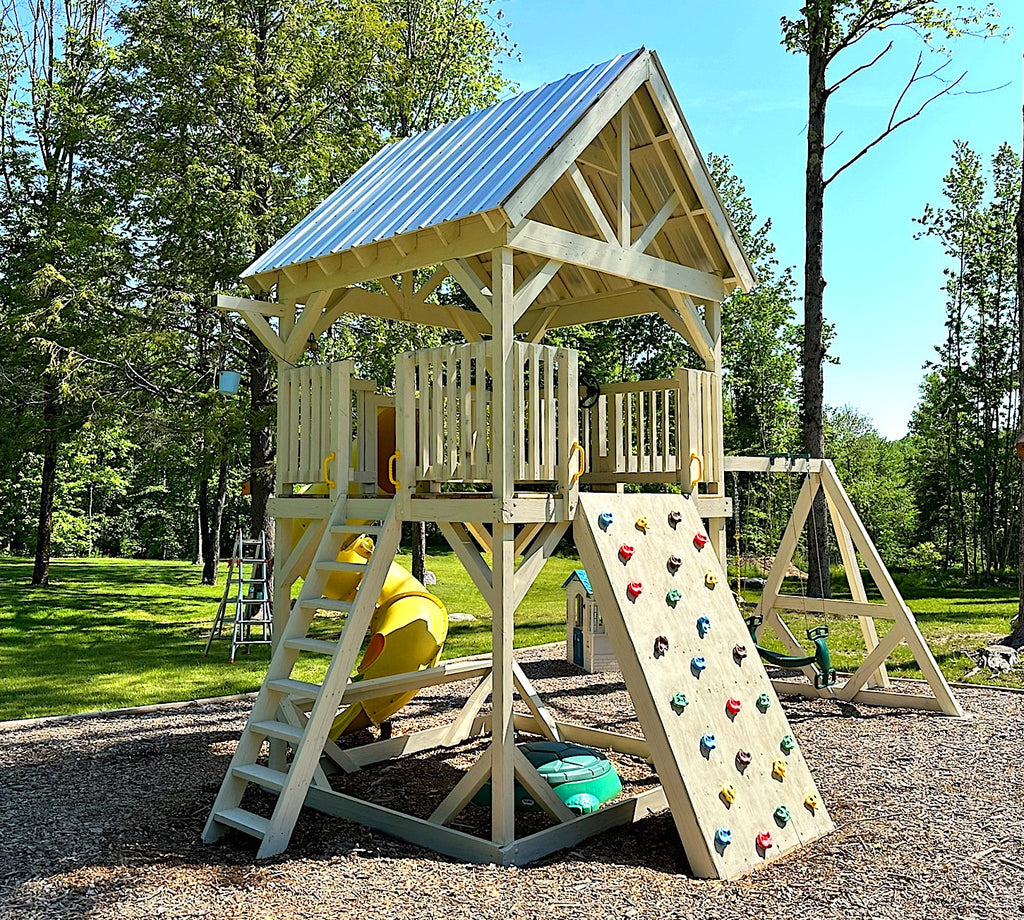

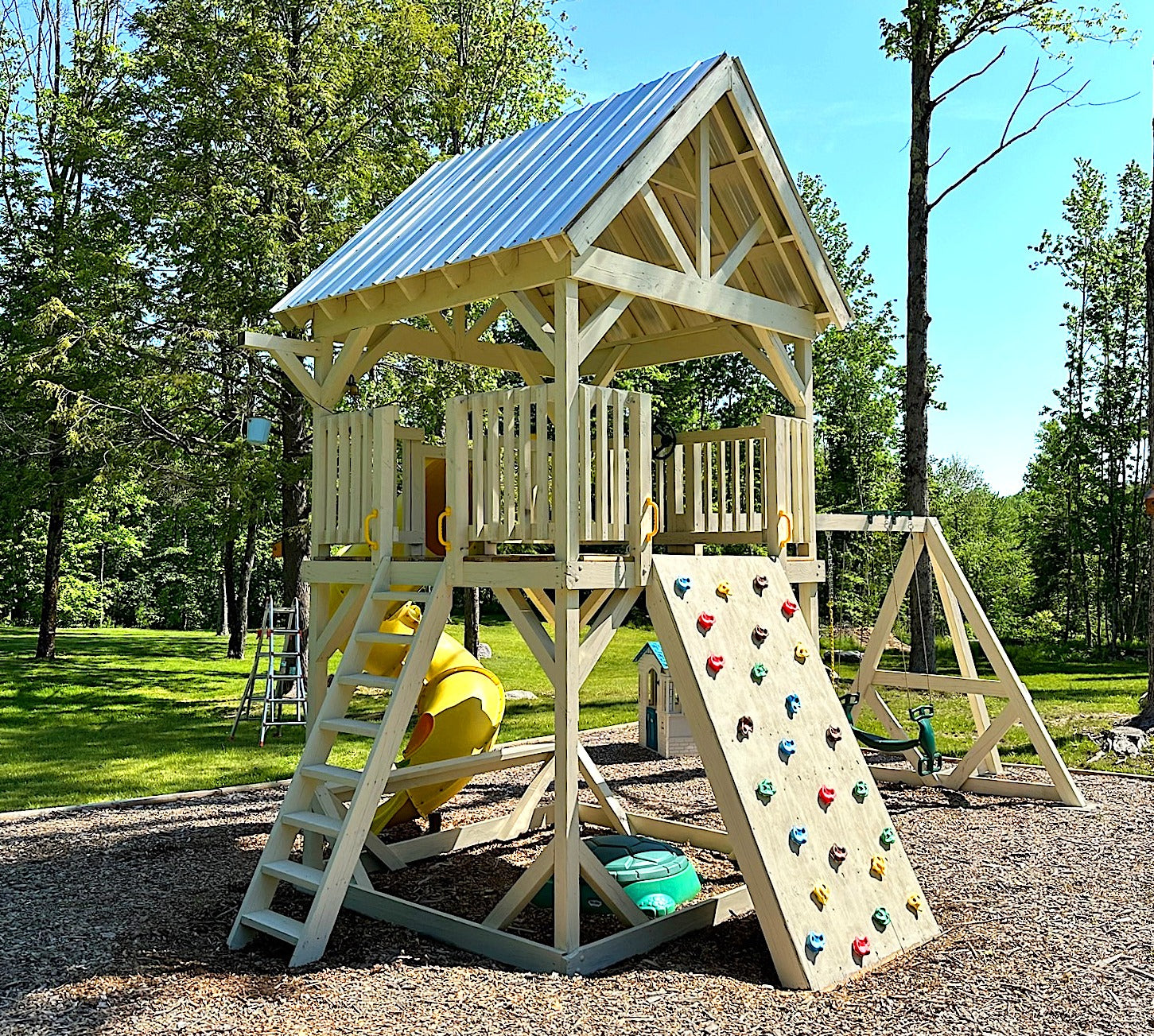

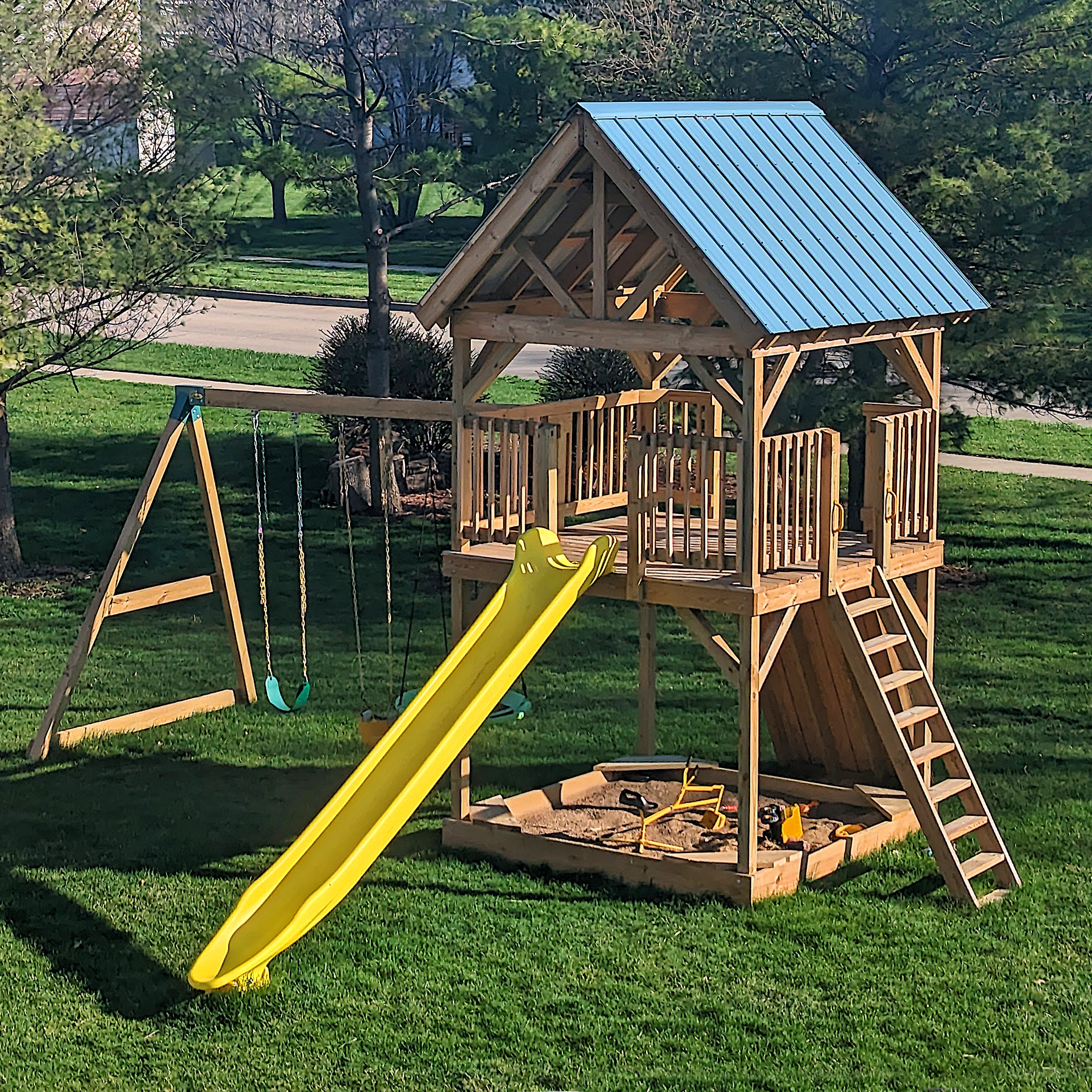

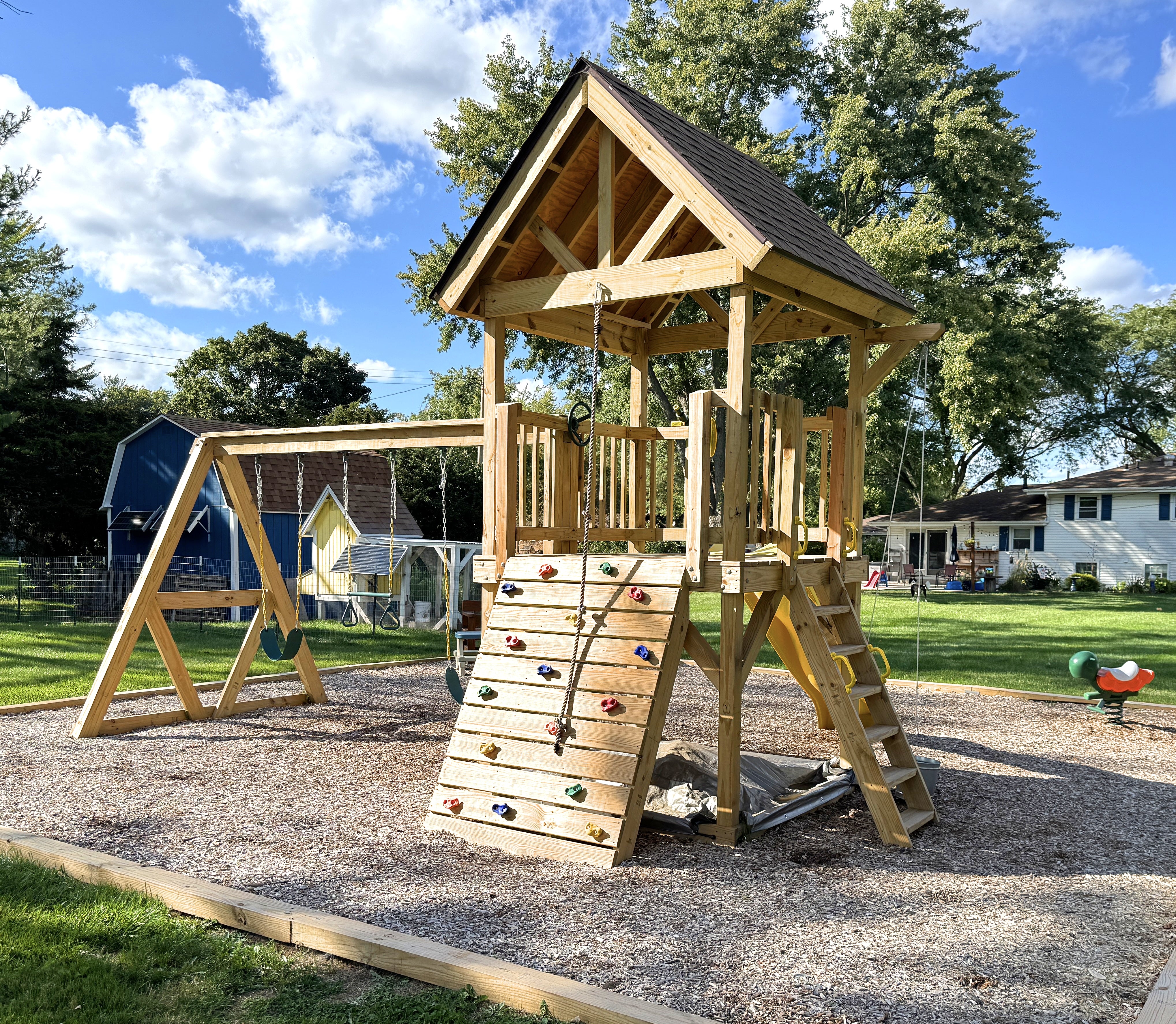

The 6x6 and 8x8 Red Summit swing set plan bring simple design and minimal material costs to the forefront, while still providing a load of fun for children off all ages.  A perfect backyard family project for novice builders who are looking to get their feet wet.

A simplified re-imaging of our Molly's Playset design, this DIY playset plan features an elevated platform which one or two slides can be attached too.  Included in the design is a ship ladder, rock wall and 12' swing set arm designed to support 3 swings.  A gable roof provides shelter from the sun and rain, while the bottom can be used as a sand box.

Looking for larger version of this design?  Check out our Sky Sentry Playset Plan that triples the square footage and adds a crow's nest!

Features:

  • 36 ft² (6x6) or 64 ft² (8x8) of usable play space
  • Sand box can be used at the bottom of the structure

  • Several attachment points for slides, swings, cargo nets, rock walls and other accessories
  • Open gable roof design allows more cooling airflow while keeping out the elements

  • Built in rock wall, ladder and stairs
  • 12' long swing-set attachment in rear

  • Elevated design allows play area underneath

  • Designed for children aged 2-9
  • 40 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

6x6 Dimensions:

  • 6' Wide (No Ladder & Swings)
  • 22' Wide (Ladder & Swings
  • 6' Deep (No Ladder & Swings)
  • 9.5' Deep (Ladder & Swings)
  • 13.5' Tall

8x8 Dimensions:

  • 8' Wide (No Ladder & Swings)
  • 24' Wide (Ladder & Swings
  • 8' Deep (No Ladder & Swings)
  • 11.5' Deep (Ladder & Swings)
  • 16.5' Tall

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.
  • Railings: 2x4

Roofing Details:

  • 45° gable roof pitch
  • 70 ft² (6x6) and 115 ft² (8x8) of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

6x6 Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 5 ) 5/4” x 6” x 8'
( 7 ) 5/4” x 6” x 12'

2x2:
( 22 ) 2” x 2” x 3'

2x4:
( 3 ) 2” x 4” x 8'
( 2 ) 2” x 4” x 10'
( 4 ) 2” x 4” x 12'

2x6:
( 4 ) 2” x 6” x 8'
( 7 ) 2” x 6” x 10'
( 10 ) 2” x 6” x 12'

2x8:
( 1 ) 2” x 8” x 8'
( 3 ) 2” x 8” x 12'

4x4:
( 4 ) 4” x 4” x 8'
( 8 ) 4” x 4” x 12'

4x6:
( 2 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 3 ) ¾" Plywood Sheets

8x8 Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 23 ) 5/4” x 6” x 8'
( 1 ) 5/4” x 6” x 12'

2x2:
( 15 ) 2” x 2” x 8'

2x4:
( 10 ) 2” x 4” x 8'
( 2 ) 2” x 4” x 12'

2x6:
( 41 ) 2” x 6” x 8'
( 4 ) 2” x 6” x 10'

2x8:
( 4 ) 2” x 8” x 8'
( 1 ) 2” x 8” x 10'
( 3 ) 2” x 8” x 12'

4x4:
( 4 ) 4” x 4” x 8'
( 4 ) 4” x 4” x 10'
( 2 ) 4” x 4” x 12'
( 4 ) 4” x 4” x 16'

4x6:
( 2 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

Plywood:
( 4 ) ¾" Plywood Sheets
