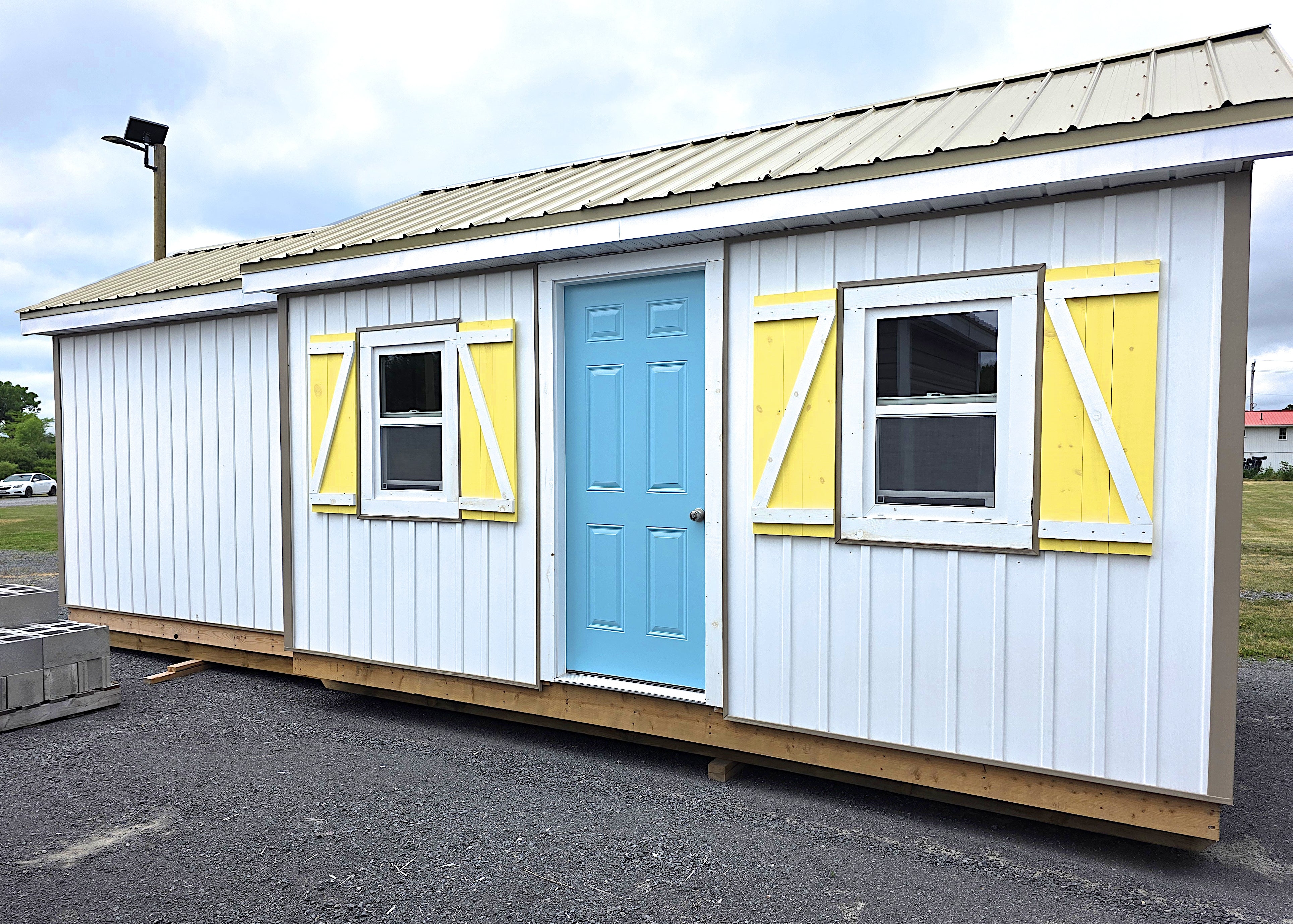

Lawrence Shed Plan

The "Lawrence" shed plan is a 26' x 12', 272 ft², two compartment gable storage shed.  The main compartment is 16' x 12', with a peripheral, firewood storage compartment of 10' x 8' dimensions.  If you choose the digital & physical copy option, you will receive a black and white, 3 ring binder booklet of the 64 page plan, as well a a link to the digital, PDF download.

Features:

• Gable roof design
• 272 ft² in usable space
• (6) 24" x 36" shed window opening
• 35° gable roof pitch
• (1) Single, 36" x 80" door | (1) Double, 36" x 80" doors
• (12) Wooden shutters
• 11' 6" Max interior head room
• 64 page, step by step PDF plan

Dimensions:

• 26' 0"  Wide
• 12' 0" Deep
• 12' 8"  Tall

Framing Details:

• Joists: 2x8 - 16" O.C.
• Walls: 2x4 - 16" O.C.
• Rafters: 2x4 - 16" O.C.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

(17) 5/4” x 6” x 10'

Framing:
(105) 2” x 4” x 8'
(38) 2” x 4” x 10'
(15) 2” x 4” x 12'
(5) 2” x 4” x 16'
(1) 2” x 6” x 8'
(2) 2” x 6” x 12'
(14) 2” x 8” x 8'
(2) 2” x 8” x 10'
(13) 2” x 8” x 12'
(2) 2” x 8” x 16'

Trim:
(19) 1” x 4” x 8'
(22) 1” x 4” x 10'
(8) 1” x 4” x 12'
(3) 1” x 6” x 8'
(5) 1” x 6” x 10
'(17) 1” x 6” x 12'

Plywood:
(37) 4' x 8' x 1/2” Plywood
(9) 4' x 8' x 3/4” Plywood

Hardware List:

• (10lbs) GRK 3” R4 Screws
• (10lbs) GRK 2.5” R4 Screws
• (Optional) GRK 4” RSS Screws
