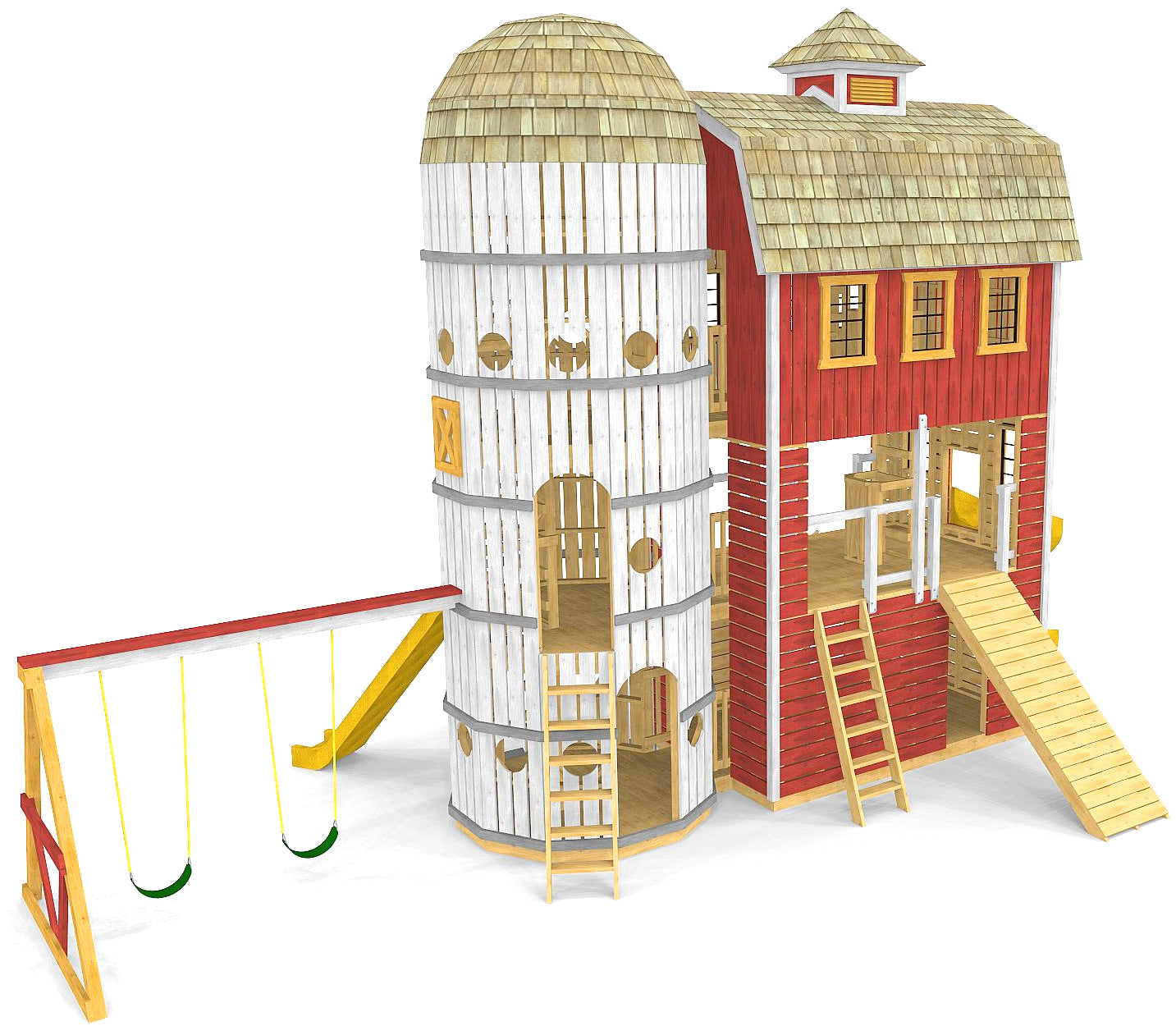

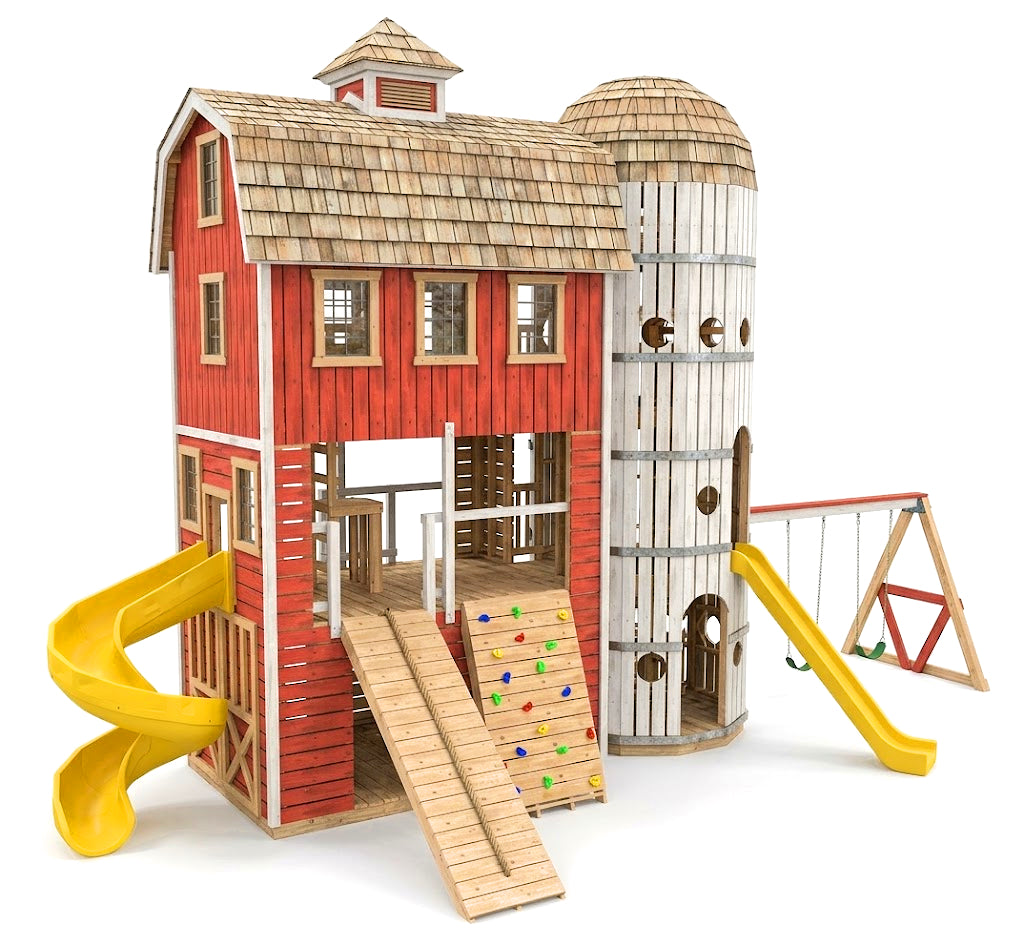

Happy Harvest Playground Plan

Features:

• Barn and silo themed, highly interactive playset concept
• Three total levels (excluding lofts)
• 500ft² of total play space
• Central access ladders to all three levels on the barn and silo sides
• Eleven total entryway/exits for interactive play and playground accessory attachment points
• Barn and silo sides include a loft
• Ten window openings made to fit glass shed placements
• 7' 2nd level deck height to allow of residential accessories
• Ladder, gang plank, rock-wall and swing-set instructions included
• Barn includes a cupola
• Designed for children aged 3-10
• 87 page, step by step PDF plan

Plan Category:

🤸🏼 Playground Playset Plans

Dimensions:

• 20' Wide (w/o swingset)
• 8' Deep (w/o Ramps)

• 24' Deep (w/ Ramps)
• 25' Tall

Framing Details:

• Joists: 2x6 - 16" O.C.
• Walls: 2x4 - 16" O.C.
• Rafters: 2x6 - 16" O.C.

Roofing Details:

• Mansard and dome roof types.

• 300 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to take advantage of any volume discount from your local lumber yard!

Decking:
( 202 )  5/4” x 6” x 8'
( 61 )  5/4” x 6” x 10'
( 64 )  5/4” x 6” x 12'
( 8 )  5/4” x 6” x 16'

2x4:
( 177 )  2” x 4” x 8'
( 60 )  2” x 4” x 10'
( 67 )  2” x 4” x 12'
( 4 )  2” x 4” x 16'

2x6:
( 70 ) 2” x 6” x 8'
( 2 ) 2” x 6” x 10'
( 27 ) 2” x 6” x 12'
( 8 ) 2” x 6” x 16'

2x8:
( 1 ) 2” x 8” x 8'
( 1 ) 2” x 8” x 12'
( 1 ) 2” x 8” x 16'

4x4:
( 3 ) 4” x 4” x 8'
( 1 ) 4” x 4” x 12'

4x6:
( 2 ) 4” x 6” x 10'
( 1 ) 4” x 6” x 12'

2x2:
( 12 ) 2” x 2” x 3'
( 2 ) 2” x 2” x 8'

Plywood:
( 17 ) 4' x 8' x ½” Plywood Non-PT
