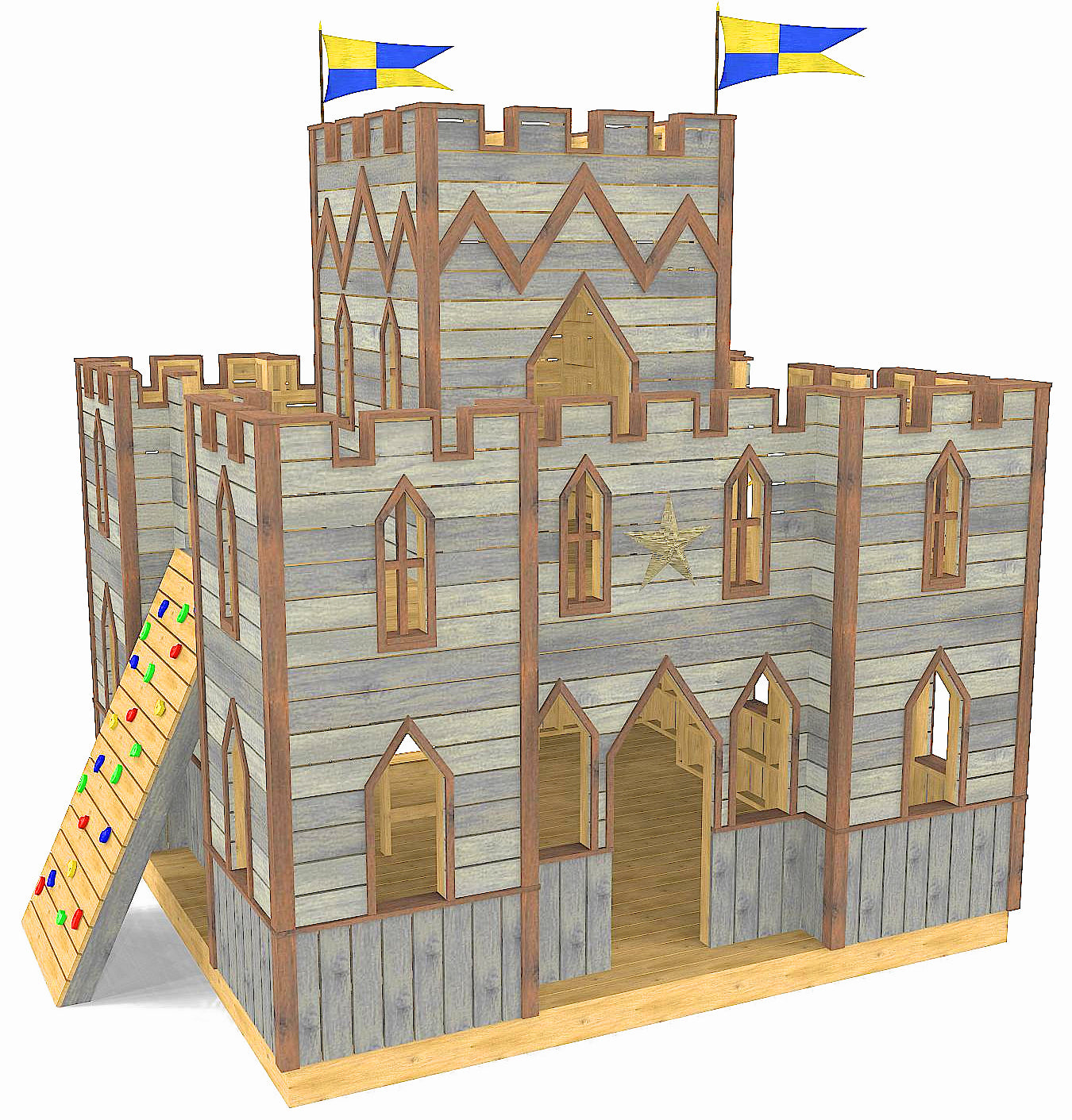

Is there a princess that needs saving, a wicked witch to be wary of and woodland animals that want to frolic and cuddle?  It seems like your backyard is the perfect environment for the Enchanted Castle Playset!  Battlements, 2nd story tower, trap door and corner defense points all add to the charm.  Castles have always been a traditional playhouse theme for a long time and this 12x14 wooden fortress is sure to be a welcome addition to the genre.

Two stories, fun details and medieval inspiration, kids will fall in love this design.  This plan is right in the center size for our castle designs.  The next step larger is the Whimsical Castle playset and for a smaller, more simplistic design, choose the Fun Fortress.  Let the enchanted being!

Features:

  • Two story play-set with a total of 320ft² in usable play space
  • Climbing rock wall
  • Room to add a 7' tall slide
  • Designed for ages 3-10
  • 14 Arrow slit style windows
  • 4 corner towers
  • Medieval style castle battlements
  • Two trap doors to the 2nd floor
  • 6' wall height on 1st story
  • Front & rear entrance
  • 69 page, step by step PDF plan

Plan Category:

🏰 Castle Playset Plans

Dimensions:

  • 14' Wide
  • 12' Deep
  • 18' Tall

Framing Details:

  • 1st story joists: 2x6 - 16" O.C.
  • 2nd story joists: 2x8 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 45° hip roof pitch
  • 92 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
(21)  5/4” x 6” x 8'
(15)  5/4” x 6” x 10'
(21)  5/4” x 6” x 12'
(13)  5/4” x 6” x 16'

Framing:

(37)  2” x 4” x 8'
(18)  2” x 4” x 10'
(73)  2” x 4” x 12'

(28)  2” x 6” x 8'
(12)  2” x 6” x 12'
(2)  2” x 6” x 16'

(10)  2” x 8” x 8'
(4)  2” x 8” x 10'
(10)  2" x 8" x 12

Plywood:
(31) 4' x 8' x ½” Plywood
(1) 4' x 8' x ⅝” Plywood

Hardware List:

  • (15 lbs) GRK 3” R4 Screws
  • (20 lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
