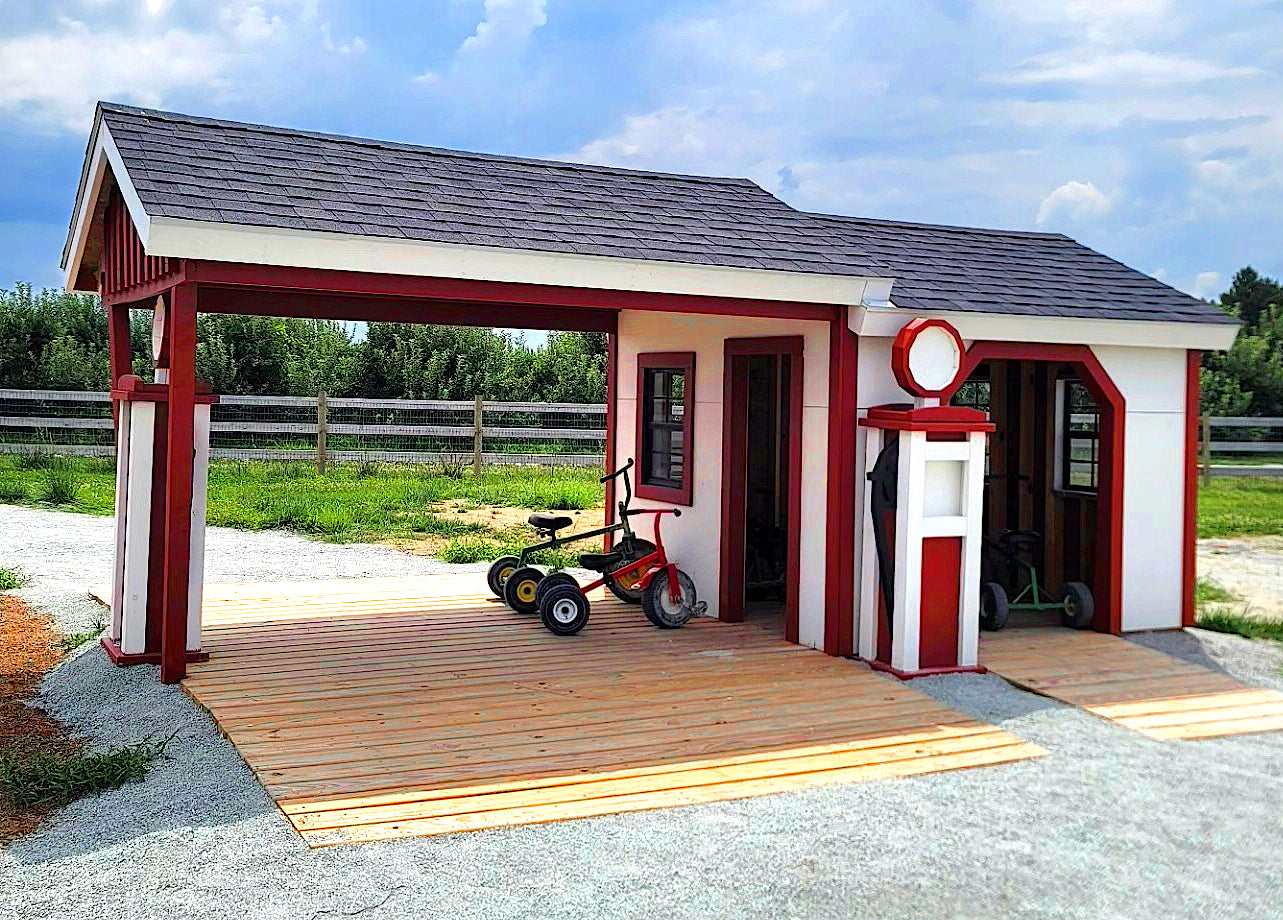

Pete's Gas Station & Garage Plan

$ 55.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping


Does your child need a cool place to store their bikes, wagons or 12v ride-on car?  Pete's Gas Station & Garage Playset Plan provides a fun and practical way to store and keep our children's outdoor toys and equipment out of the rain, and do it in style!

Modeled after a mid-century corner filling station, this delightful deluxe retro garage and gas station design provides shelter from the elements in just able the most slick way possible.  Instructions include building a gas pump, spare wheel, light-up road sign, drive through canopy and entrance/exit ramps.

Part of our town collection, including a schoolhouse, fire house, barn and jail.
Don't forget every cool garage needs an equally cool hot rod on display right outside.  Download and start building this plan this weekend!

Features:

  • 112 ft² in usable play space
  • Enclosed garage and open carport design
  • Instructions for gas pump, wheels and retro signs
  • Entry and exit ramps for easy access
  • Designed for children aged 2-10
  • 48 page, step by step plan

Plan Category:

🏘️ Town & Village Playhouse Plans

Exterior Dimensions:

  • 14' Wide
  • 8'   Deep (w/o Ramp)
  • 18' Deep (w/ Ramp)
  • 8' 9" Tall

Glass Shed Windows:

  • ( 5 )  18" x 27"

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Roofing Details:

  • 25° gable roof pitch
  • 152 ft² of total roof coverage.  Typically, 10% should be added to the roofing material order to account for waste and overlap.

Lumber List:

List  includes materials for single pump and wheel.  Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Decking:
( 12 ) 5/4” x 6” x 8'
( 3 ) 5/4” x 6” x 10'
( 17 ) 5/4” x 6” x 16'

Framing:
( 5 ) 2” x 2” x 8'

( 34 ) 2” x 4” x 8'
( 25 ) 2” x 4” x 10'
( 13 ) 2” x 4” x 12'

( 17 ) 2” x 6” x 8'
( 26 ) 2” x 6” x 10'
( 2 ) 2” x 6” x 16'

( 1 ) 2” x 8” x 12'

( 2 ) 4” x 4” x 8'

Plywood:
( 14 ) ½" Plywood Sheets

Hardware List:

  • ( 5 lbs ) GRK 3” R4 Screws
  • ( 10 lbs ) GRK 2½” R4 Screws
  • ( 8 ) ½" Carriage Bolts, nuts, washers
  • (Optional) GRK 4” RSS Screws
Not sure you can build this plan?
Hire a qualified professional.
