Rosemary Shed Plan

$ 50.00
Credit Cards Accepted
A 3-ring binder and the PDF logo

Buy Digital & Printed Plans. Learn More ➩
No P.O. Box Shipping

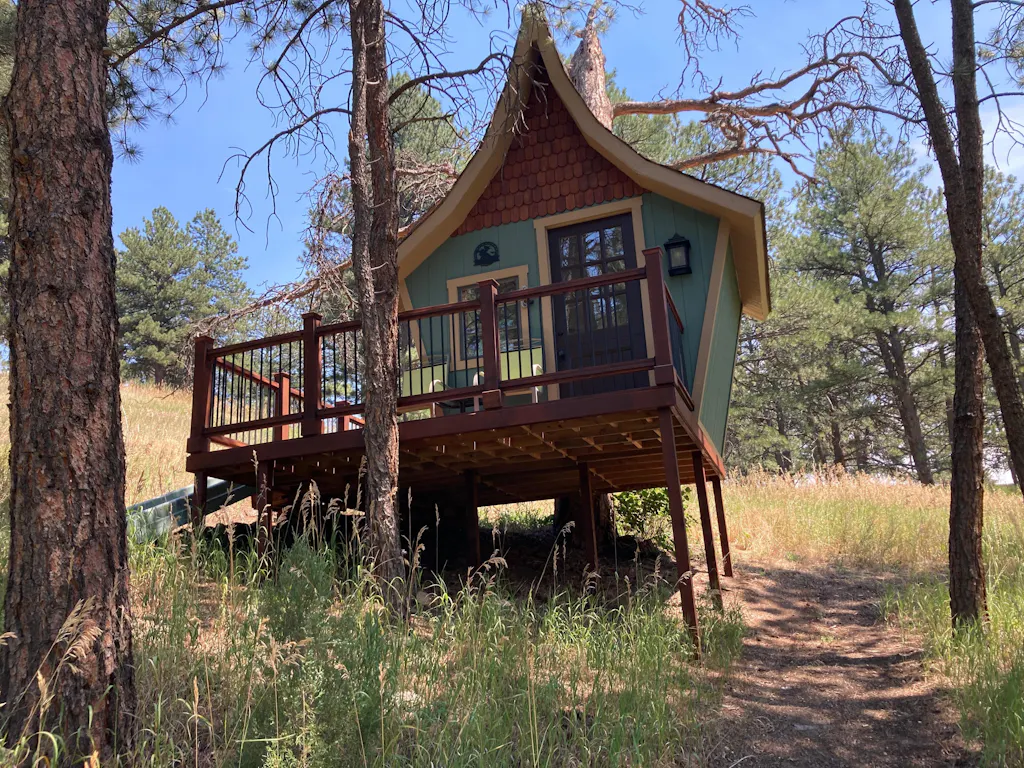

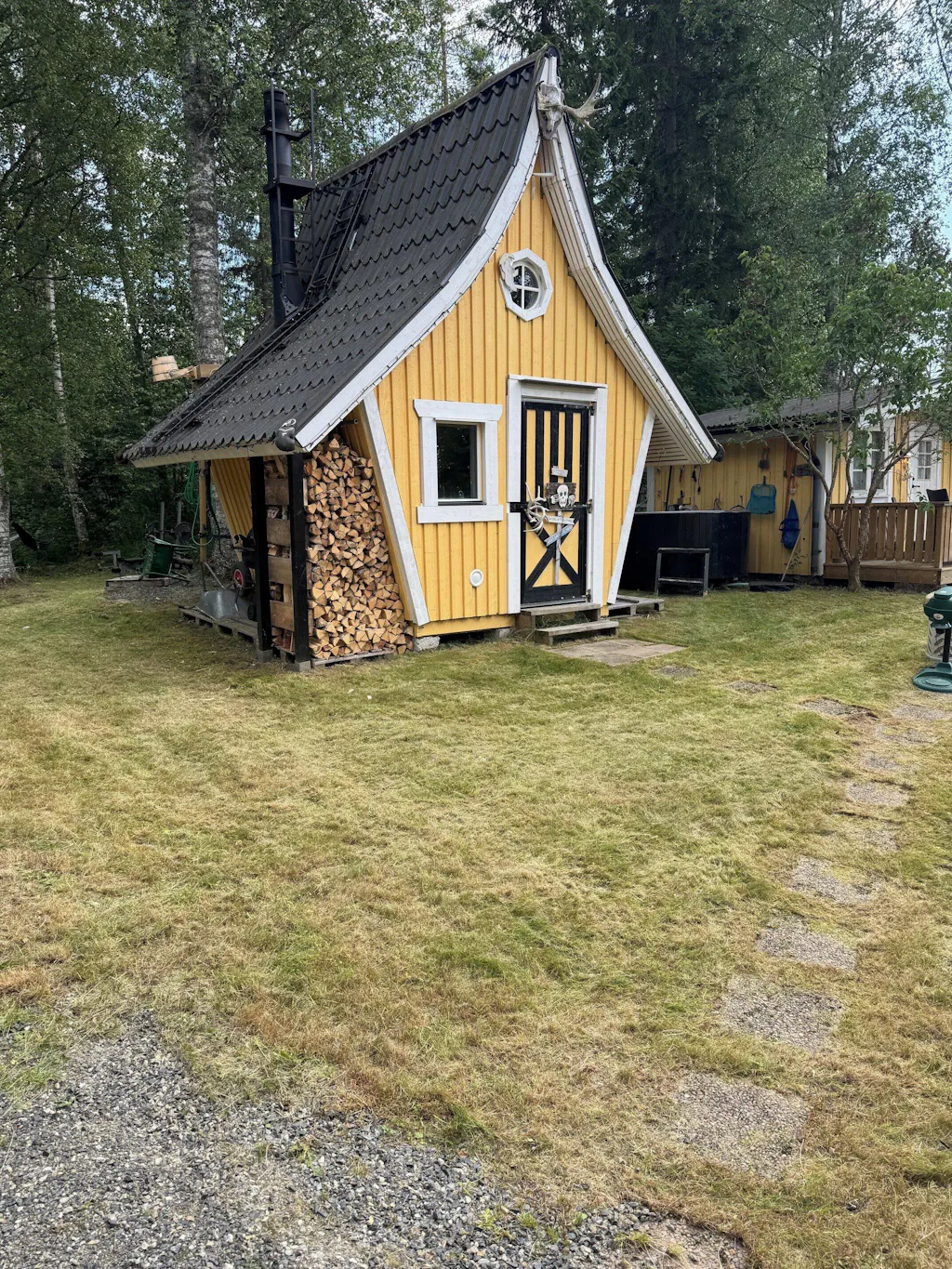

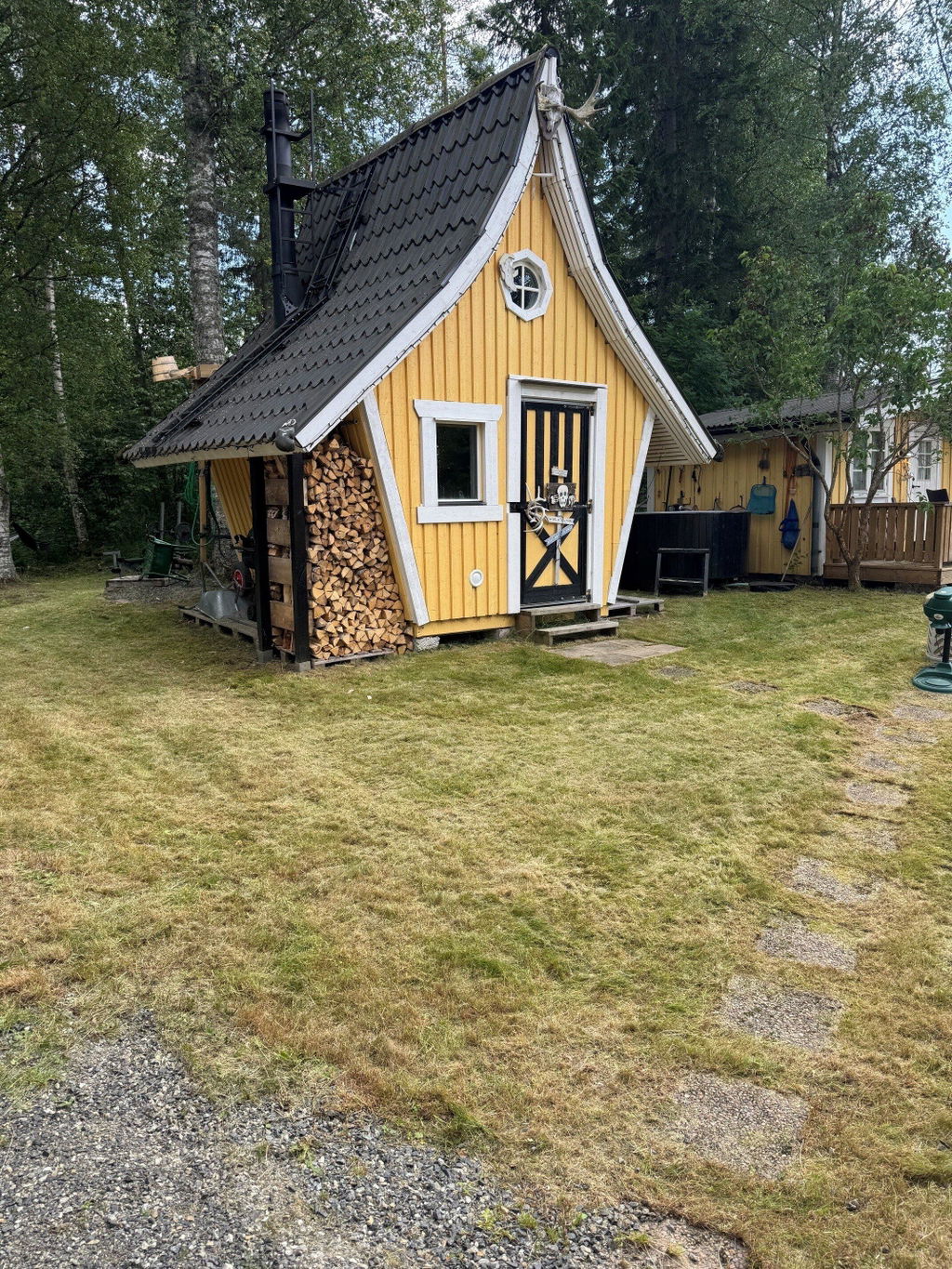

The "Rosemary" shed plan is a 8' x 8', 64 ft², sloping roofed structure with angled walls and unique style.  Storybook like in design, this fun backyard structure can be used both for a storage shed or child's playhouse.  Check out the Loretta shed design too, as well as our sister website, PaulsPlayhouses.com for other playhouse styled plans.  If you choose the digital & physical copy option, you will receive a black and white, 3 ring binder booklet of the 41 page plan, as well a a link to the digital, PDF download.

Features:

  • Whimsical house styling with sloped roof and angled walls
  • 64 ft² in usable space
  • (2) 24" x 36" shed window opening
  • 35° - 75° slopped roof pitch
  • (1) Single, 36" x 80" door
  • (2) Wooden shutters
  • 14' 2" Max interior head room
  • 41 page, step by step PDF plan

Dimensions:

  • 10' 0"  Wide
  • 12' 0" Deep
  • 11' 2"  Tall

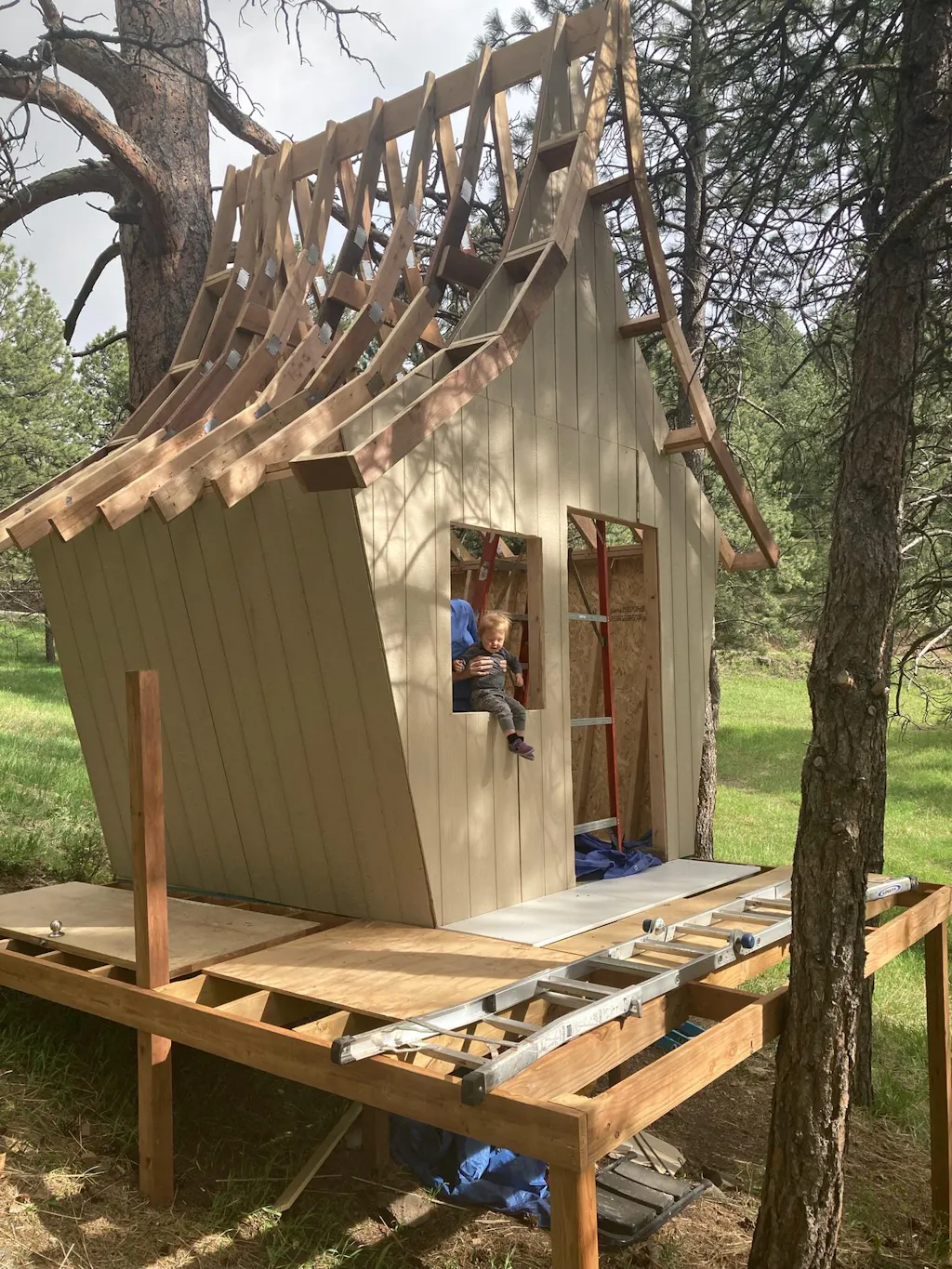

Framing Details:

  • Joists: 2x6 - 16" O.C.
  • Walls: 2x4 - 16" O.C.
  • Rafters: 2x6 - 16" O.C.

Lumber List:

Make sure to ask about and take advantage of any volume discount from your local lumber yard!

Framing:
(35) 2” x 4” x 8'
(6) 2” x 4” x 12'
(47) 2” x 6” x 8'
(1) 2” x 6” x 10'
(1) 2” x 6” x 12'
(1) 2” x 10” x 10'

Trim:
(16) 1” x 4” x 8'
(3) 1” x 4” x 10'
(3) 1” x 4” x 12'
(2) 1” x 6” x 12'

Plywood:
(23) 4' x 8' x 1/2” Plywood
(3) 4' x 8' x 3/4” Plywood

Hardware List:

  • (10lbs) GRK 3” R4 Screws
  • (10lbs) GRK 2.5” R4 Screws
  • (Optional) GRK 4” RSS Screws
Not sure you can build this plan?
Hire a qualified professional.
